SOPHW-116 High Quality Miniature Button Type Compression Load Cell for robot hand grasping force detection
Product Features
1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Low profile、small、Low Deflection.
Product Parameters
| Measuring Range | 0-10T | Material | Stainless steel |
| Output Sensitivity | 1.0±2.0mV/V | Impedance | 700/1000Ω |
| Zero Output | ±1%F.S. | Insulance | ≥5000MΩ/100VDC |
| Non-linearity | 0.3%F.S. | Operating Voltage Range | 5-10V |
| Hysteresis | 0.3%F.S. | Operating Temp Range | -20-80℃ |
| Repeatability | 0.3%F.S. | Safe overload | 150% |
| Creep (30min) | 0.1%F.S. | Maximum Overload | 200% |
| Temp.effect on output | 0.3% F.S. / 10ºC | Cable size | φ3x2m φ5x2m(10t) |
| Temp.effect on zero | 0.3% F.S. / 10ºC | Cable ultimate pull | 10kg |
| Response frequency | 10kHz | TEDS | optional |

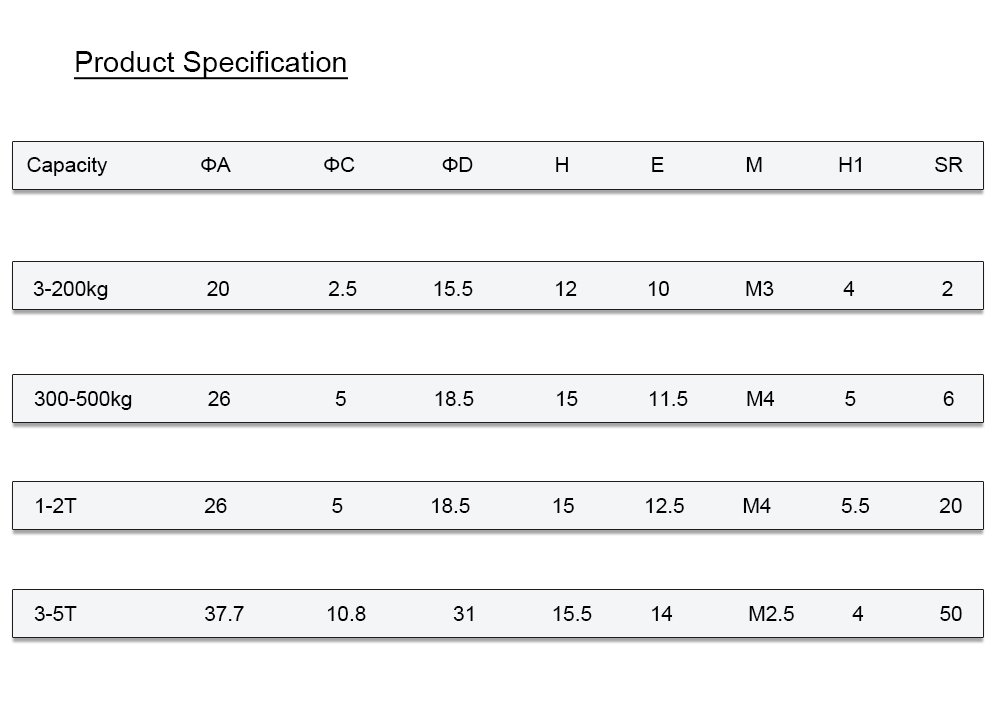

External Dimensions

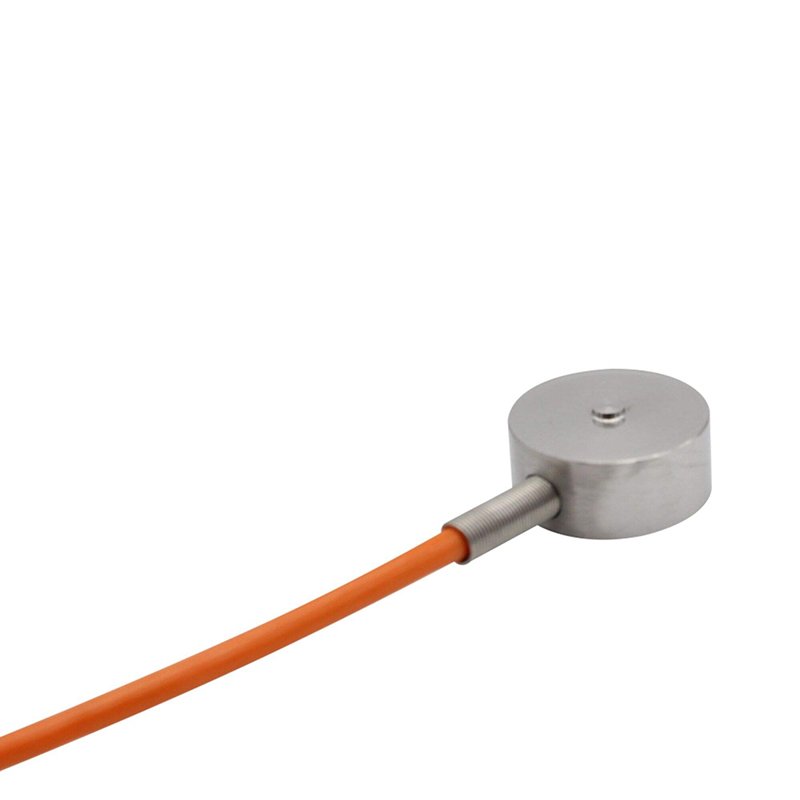

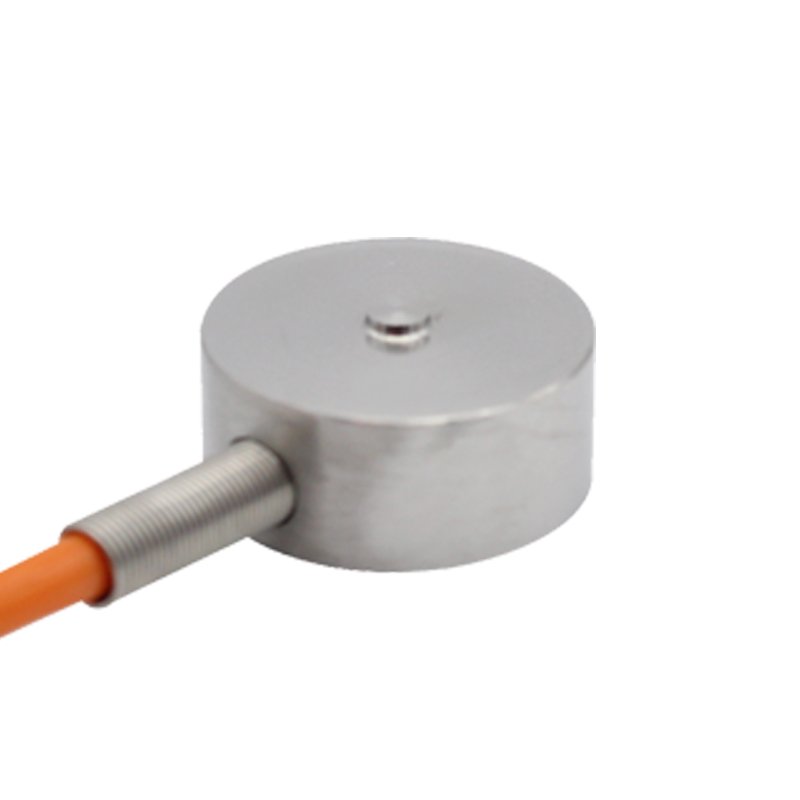

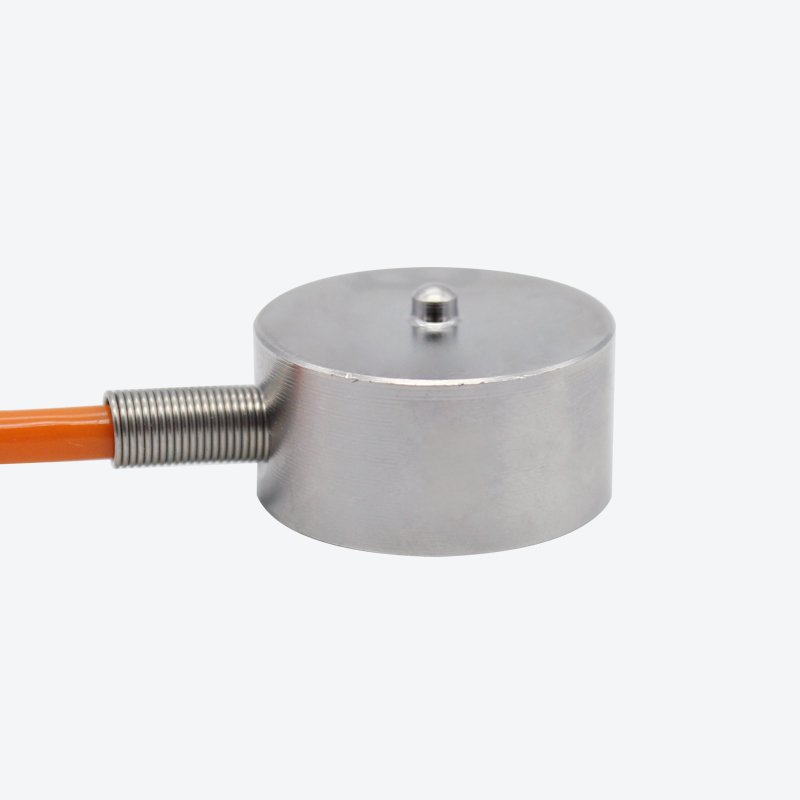

Detail images
