SOP / SOPHW-113 / Factory Supply Micro Button Load Cell Compression for Measurement and Control in 3C Digital Production

SC215B 로우 프로파일 버튼형 로드셀은 공간이 제한된 압축 어플리케이션에 이상적입니다. 콤팩트한 디자인에 나사산 중앙 구멍이 있어 다양한 장착 구성이 가능합니다.

The SC215B low profile button load cell ideal for compression applications where space is limited. Its compact design also has a threaded center hole that allows for different mounting configurations.

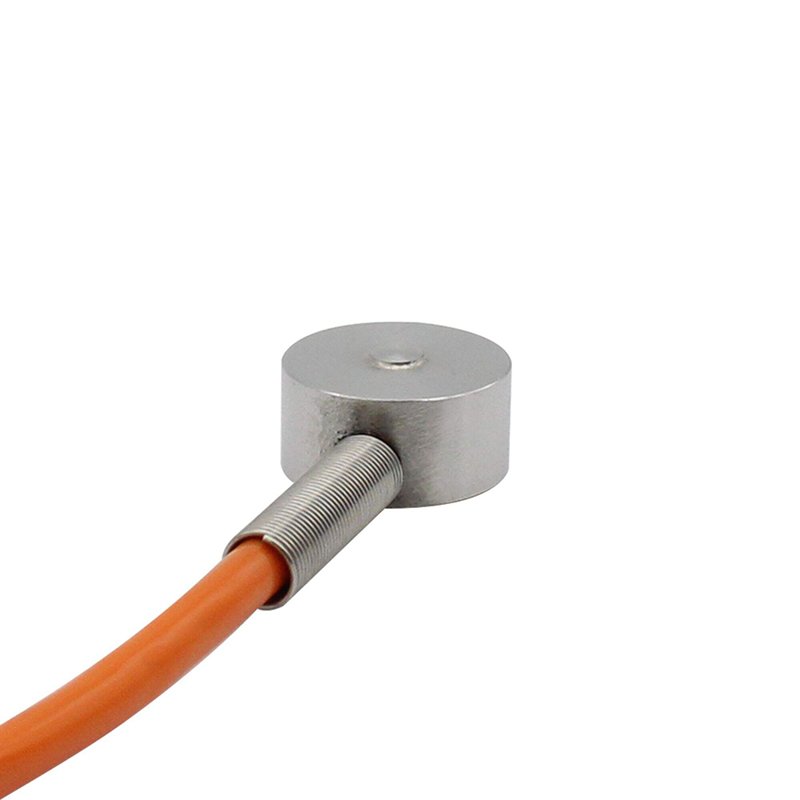

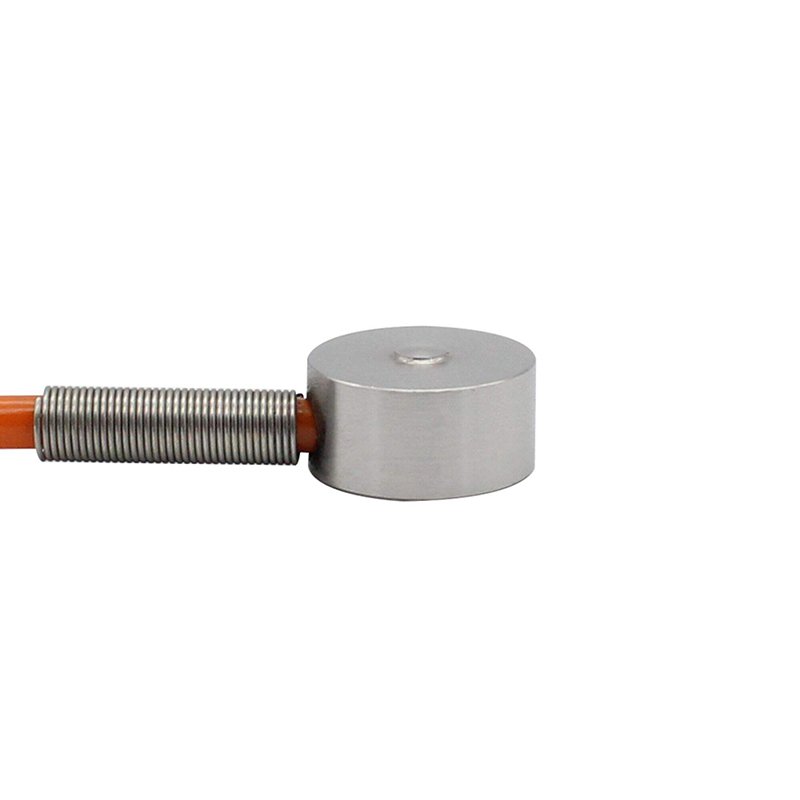

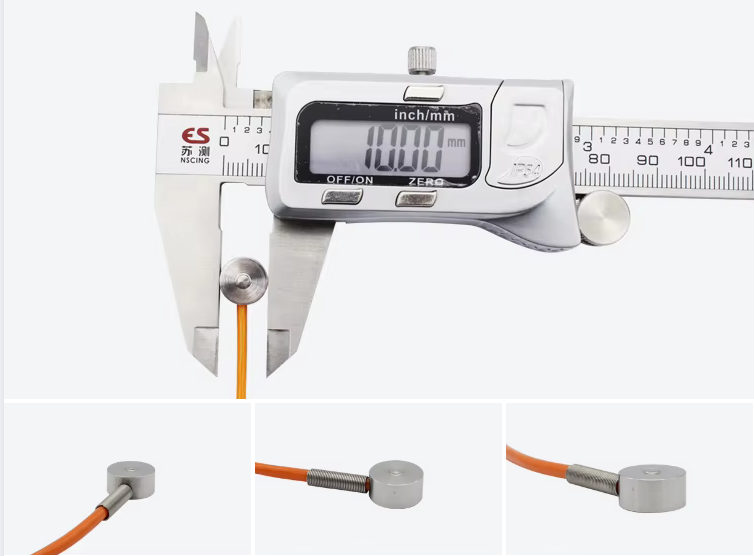

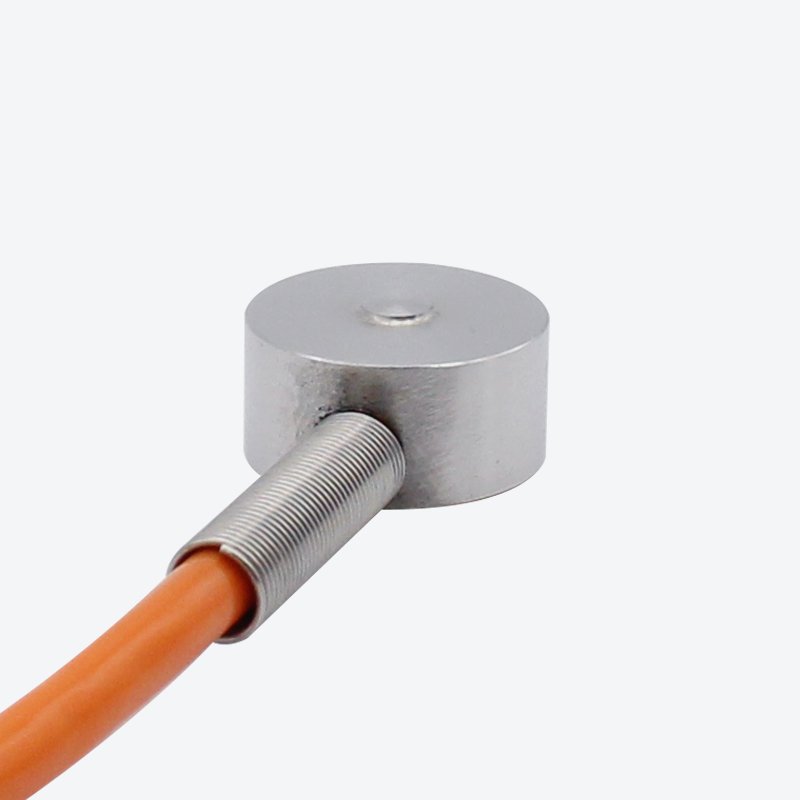

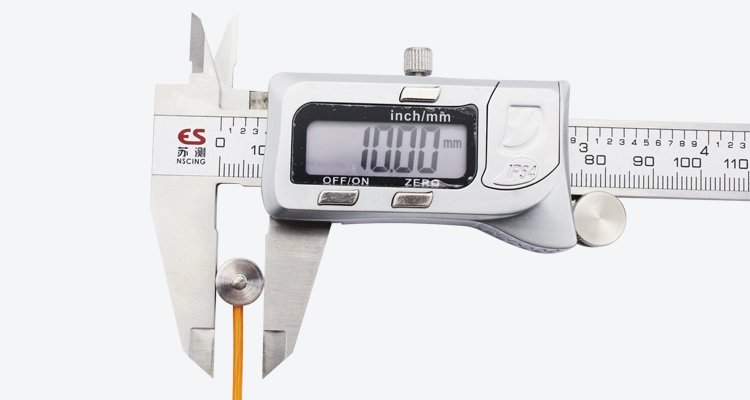

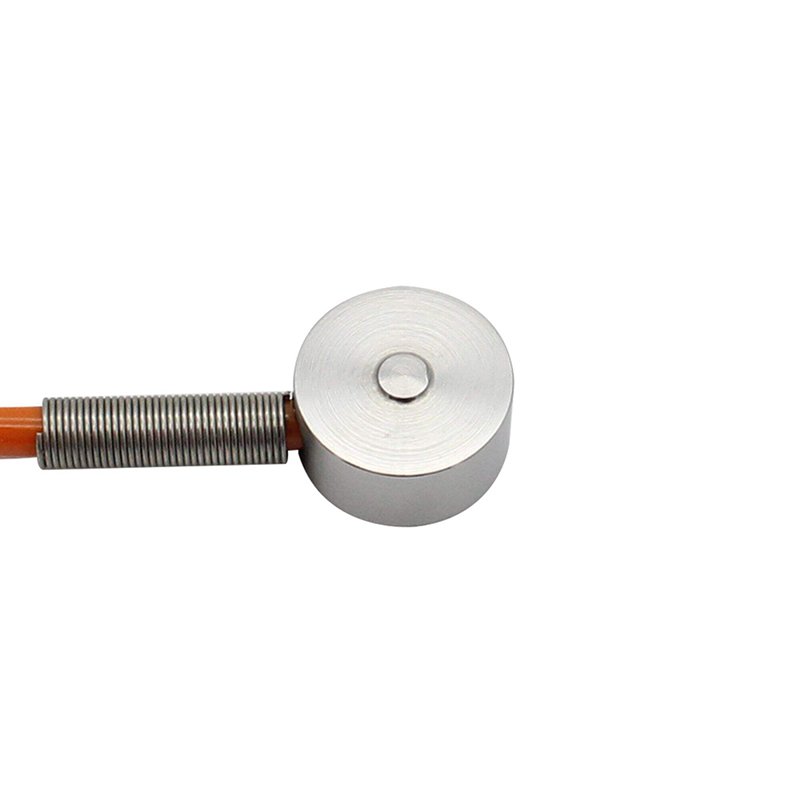

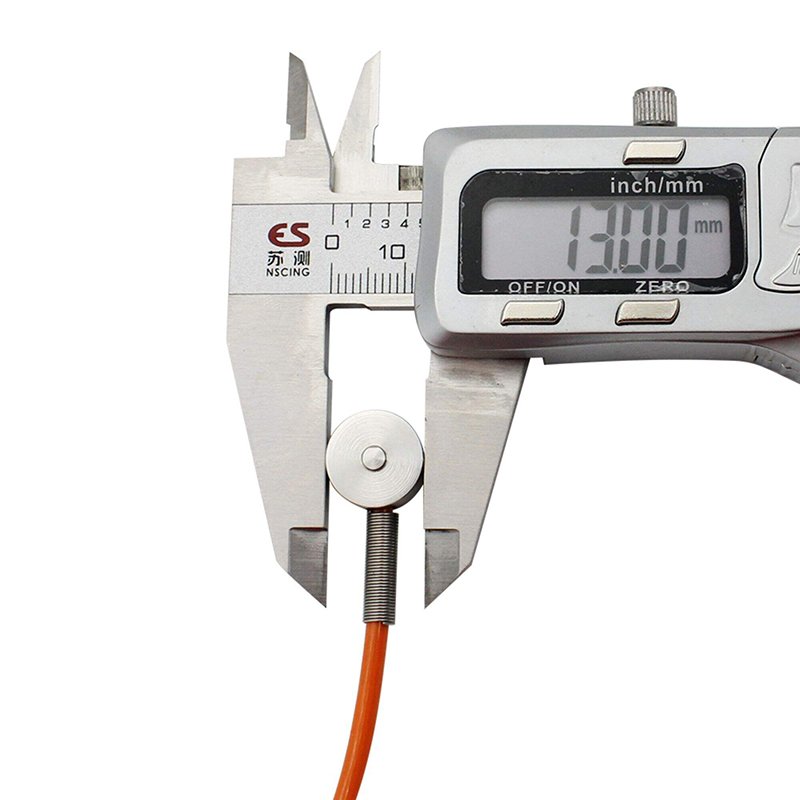

Button load cell is a compression load cell with a diameter 10mm. It has capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell can be used for 3C product testing, medical testing, automated equipment testing, etc. It can also be customized for the high-temperature working condition.

1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Low profile、small、Low Deflection.

KWT1D40 series is a compact compression force sensor, which can reliably measure the compression force in a limited space. Due to the special structural design, the sensor has a high natural frequency, which can adapt to the high-frequency loads.

Product description:

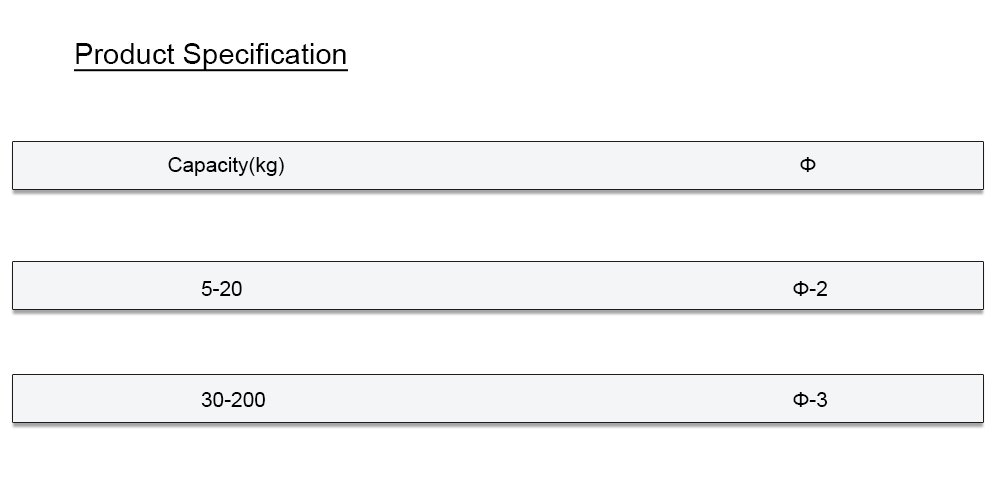

Capacity ： 5kg~200kg
Material: stainless steel
Defend grade: IP67.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.

SC29FB는 매우 무거운 압축 하중을 계량하는 어플리케이션에 적합하도록 설계된 대형 버튼형 로드셀입니다. 중량 계량 어플리케이션에서는 설치가 매우 중요하므로, SC29FB는 나사산이 있는 큰 중앙 구멍과 로드셀 본체 주변에 여러 개의 관통 구멍을 가지고 있습니다. 견고하게 설계되어 혹독하고 부식성이 있는 환경에도 설치 가능합니다. 또한, SC29FB는 간편한 설치를 위해 탈착식 방수 커넥터를 갖추고 있습니다.

The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells. It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.

SC201GCL은 공간이 제한된 압축 계량 분야에서 널리 사용되는 원형 버튼 로드셀입니다. 독특하고 컴팩트한 디자인으로 최대 IP67 등급의 혹독한 환경에서도 측정이 가능합니다. 부식성 환경에 대한 내구성을 높이기 위해 스테인리스 스틸 소재로도 제작됩니다.

The SC201GCL is a round button load cell popular is compression weighing applications where space is limited. Its unique and compact design allow for measurements is harsh environments with ratings up to IP67. It is also available in stainless steel for added resistance to corrosive environments.
