Lvdt Measurement Displacement Transducer Sensor
LVDT displacement sensor production introduce
LVDT displacement sensor is for spring loaded stype sensor. it use single power, 9-28V DC. LVDT sensor material is for stainless steel, the dia is for 20mm. LVDT is use for aeronautics and astronautics industry, machinery industry, building industry, textile industry, railway industry, coal industry, chemical industry and reasearch universities and so on. It can be used to measure tension, expansion, diameter, conicity thickness, eccentricity, differential pressure, liquid level, force, weight and so on.

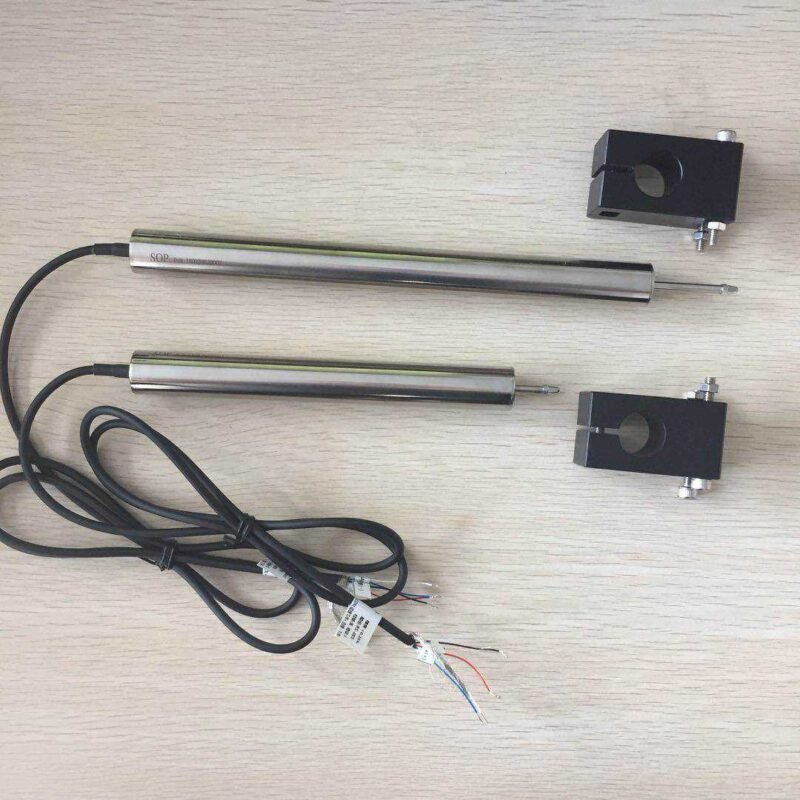

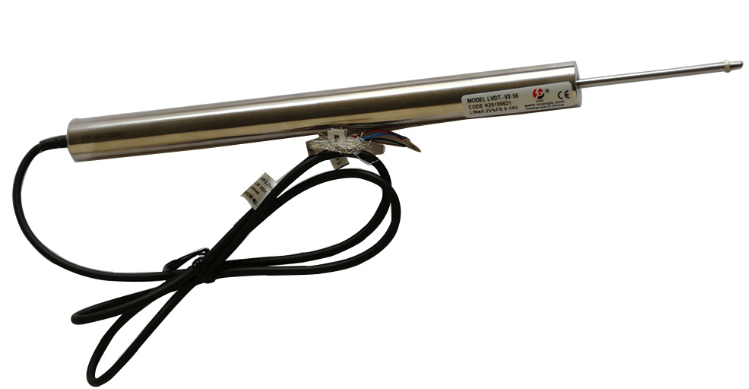

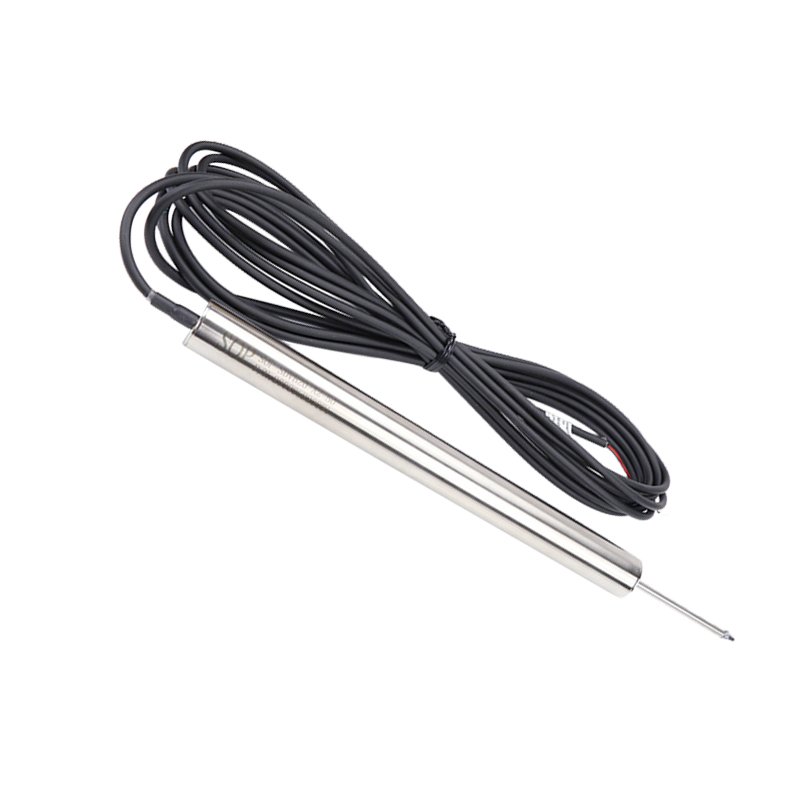

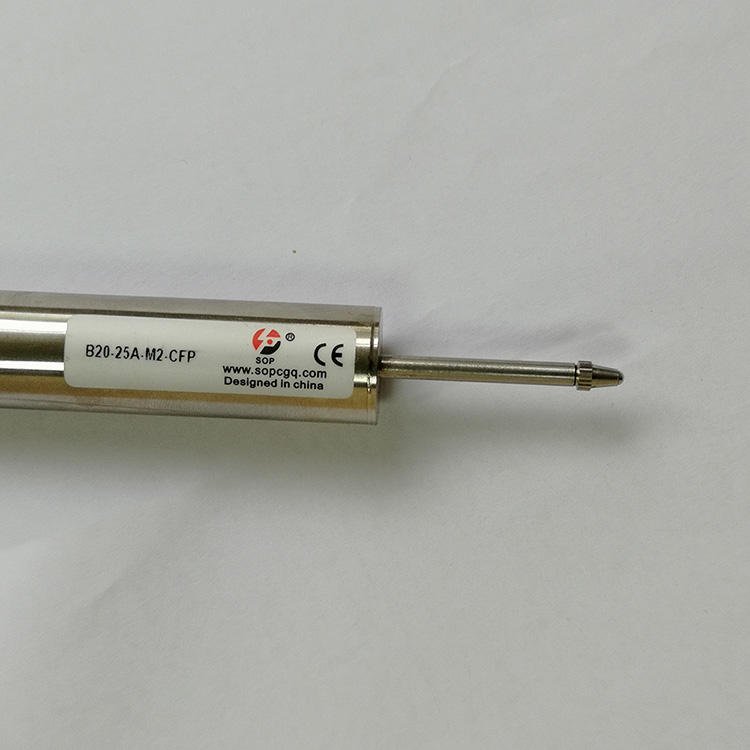

LVDT displacement sensor picture showing

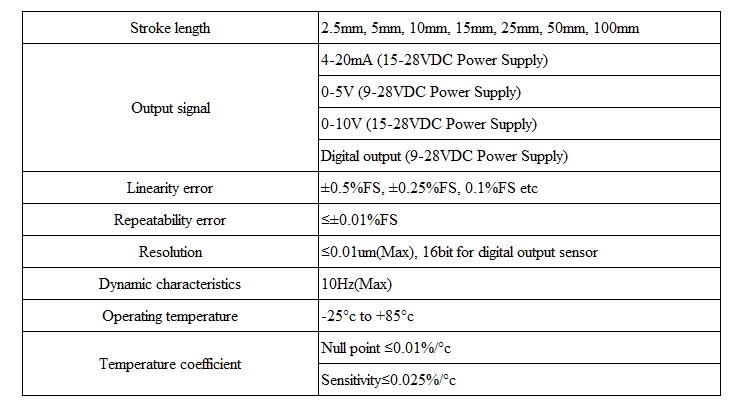

LVDT displacement sensor choose model
1. Our factory have different kinds sensor, like KTC-WPS-KPM-KPZ-KTF-KTM-LWH-KTR-LVDT, each kinds can use different place, so pls confirm us which place you will use. Then we can confirm which kinds is suitable
2. Working strock. Our sensor have different working sensor, we can make 5-100000mm, so pls confirm working stroke, then can choose which model.
3. Install way, Our Position sensor have different output way, we have resistance output, current output, and voltage output way.
4. Precision, our precision can make 0.04-0.1%, so need confirm precision.

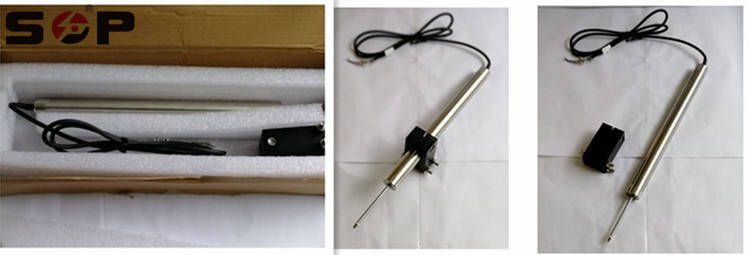

LVDT displacement sensor packing
