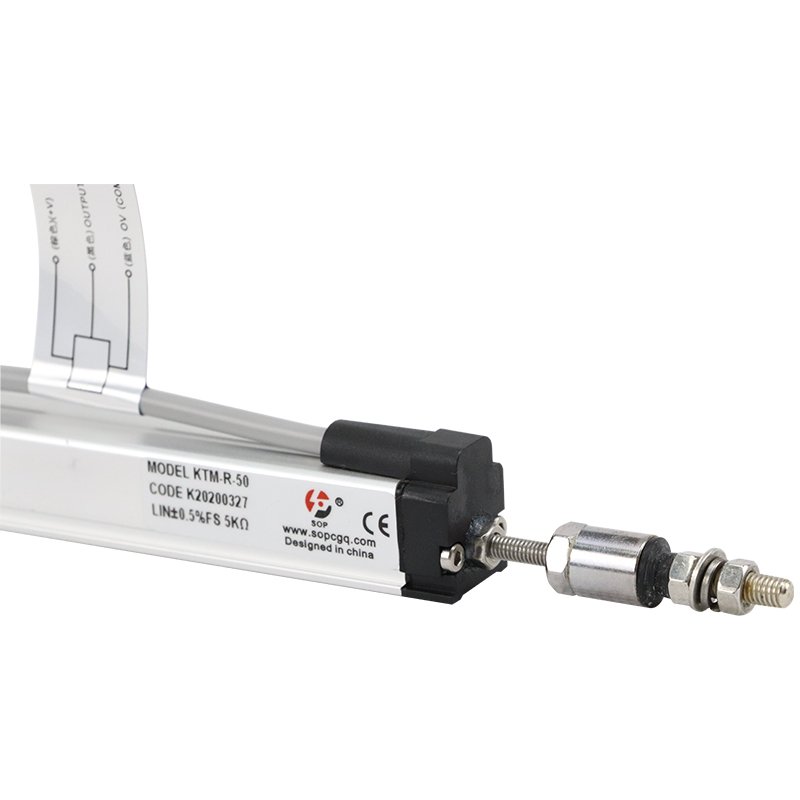

KTM Rectilinear Linear Position Displacement Transducer
SOP / KTM / Rectilinear Linear Position Displacement Transducer
1. Spherical hinge could avoid lateral force
2. Usage life is longer, times could reach thirty million
3. Suitable for small space applications
4. Resolution rate is higher than 0.01mm
5. High speed
6. Din43650 standard plug and socket
7. Protection grade is IP65 (install down is IP57)
8. Could quip with voltage and current(2 line, 3line) module
1. Usage life is longer ,times could reach fifty miliion
2. Linear excellent
3. Resolution rate is higher than 0.01mm
4. Hige speed
5. Din43650 standard plug and socker
6. Potection grade is IP65
7. Could equip with voltage and creet (2Line ,3Line)module
1. Usage life is longer, Times could reach Thirty Million
2. Linear Excellent
3. Resolution Rate is Higher Than 0.01mm
4. High Speed
5. Din 43650 Standard Plug And socket
6. Protection Grade is IP65
7. Could Equip with voltage and current （2Line,3line）module
KTR Series Sensor Features:
* Spring self-recovery linear potentiometer
* Stroke lengths available from 5 to 100 mm (0.2 to 4 inchs)

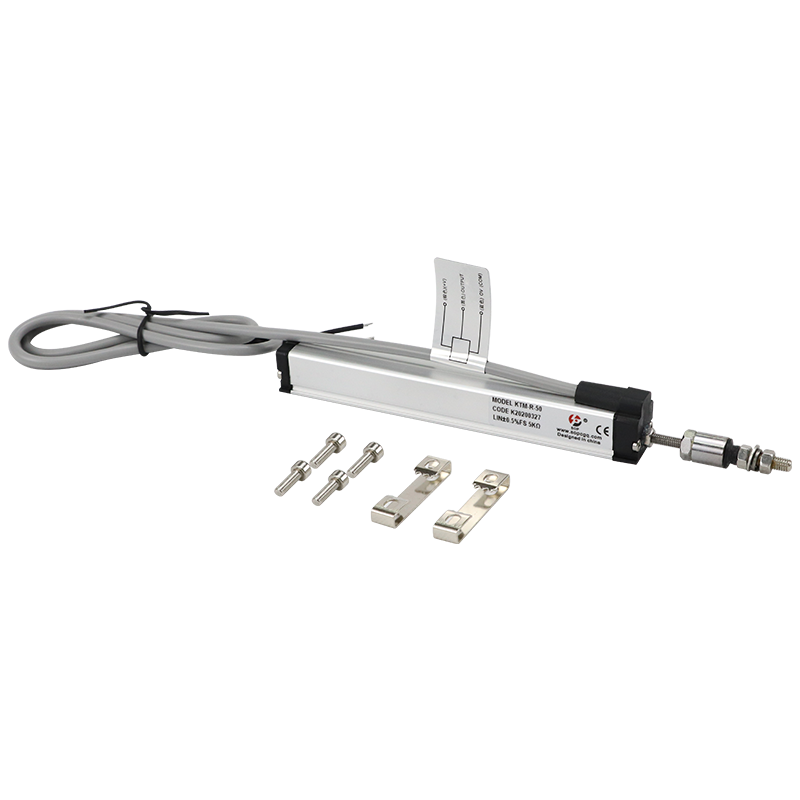

* Mounting brackets included
* High precision and repeatability
* Protection class of IP65 (Dust tight, Water resistant)
* Compact size, housing is only 18 mm x 18 mm
* Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output
1. No Pole Design
2. Spherical Hinge Could avoid Lateral Force
3. Usage life is longer, Times could reach Thirty Million
4. Non-linearity Smaller
5. Resolution rate is higher than 0.01
6. High speed
7. Din43650 Standard Plug and socket
8. Protection Grade is IP65(Install Down is IP57)
9. Could Equip with voltage and current (2 line,3line) Module
Power: AC220V/24Vdc(power to sensor)option
Display digits:
(Decimal, suitable for linear displacement display)360°00,00
(hexadecimal, suitable for angle display)
Display linear accuracy: Analog output (0.25%, 0.05%)
Scope of application:
Suitable for potentiometer (resistance) output type sensors
For voltage output sensors
For current output (2-wire, 3-wire) sensors
Applicable to incremental pulse output encoders
Applicable to absolute pulse output encoder Suitable for encoder application products
GDM plug type signal transmission module
1. Measurement range：0-300mm
2. Output Signal: Resistance :5k; Current :4-20mA; Voltage : 0-5V/0-10V; Digital RS485
3. Linearity : ±%0.05
4. IP Degree: IP68
5. Displacement Speed: < 5m/s
6. Shell Size: φ28mm
7. Mechanical Installation: 1.Fisheye installation at both ends; 2.Threaded installation of flanges at both ends
1. Measurement range：0-300mm
2. Output Signal: Resistance, current, voltage, RS485
3. Linearity : ±%0.05
4. IP Degree: IP65
5. Shell Material: Aluminum alloy/metal
Supply Voltage: 220V AC:220V±10%, Power < 7w; 24V DC:24V±10%, Power < 5w;12V DC:9V~20V, Power < 5w; Other specifications are subject to the instruction attached
Operating Temperature: 0~50℃, humidity < 90%R.H
Display range: -1999~9999, Decimal point position can be set
Display color: The measured value is green, the set value is red, the light column is red or customized
Display resolution: 1/10000
Input Signal: Voltage, Current, RTD, T/C, mV, potentiometer, Pressure Gauges with Resistance Transmitter
Voltage: 1V~5V DC,0V~5V DC, Can be selected by setting
Current: 4mA~20mA,0mA~10mA,0mA~20mA, Can be selected by setting
RTD: Pt100,Cu100,Cu50,BA1,BA2,G53, Can be selected by setting
T/C: K, S, R, B, N, E, J, T, Can be selected by setting
please leave a message for special request
Intrinsic Error: < ±0.2%F.S
Measuring resolution: 1/60000, 16-bit A/D converter
Measurement control cycle: 0.2s
