Features
- Available Capacity: 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg
- Anodized aluminum body
Applications
- Kitchen scales
- Portable scales

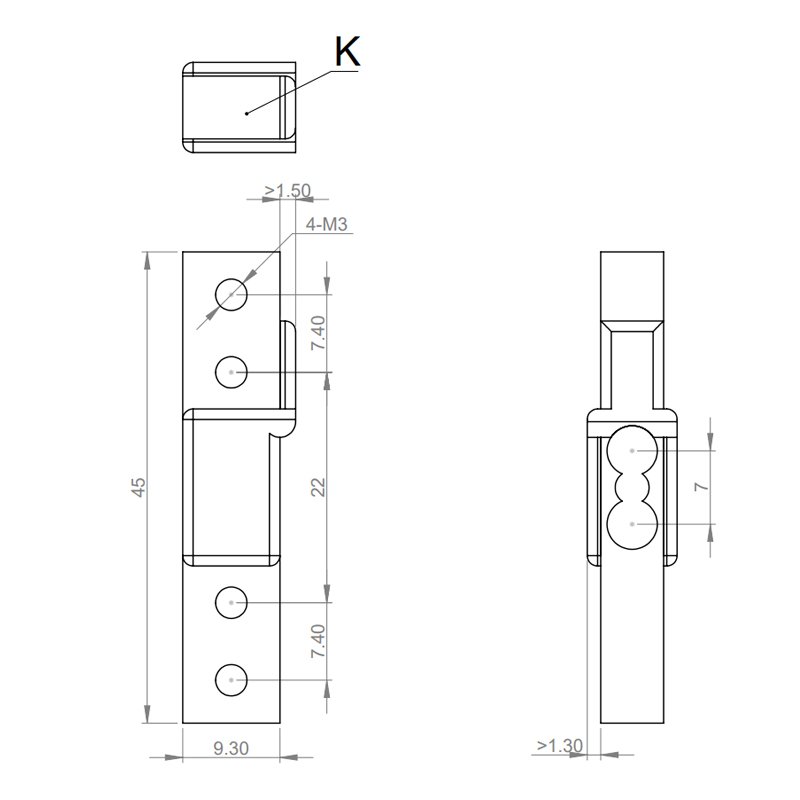

Dimensions
Specifications
| Capacity | 300g, 500g, 750g, 1kg, 2kg, 3kg,5kg |
| Comprehensive error | 0.05 %F·S |
| Accuracy | 0.05%F·S |
| Output sensitivity | 300g: 0.7±0.15mV/V 500g-750g: 0.8±0.15 mV/V 1kg-5kg: 1.0±0.15 mV/V |
| Non-linearity | 0.05 %F·S |
| Repeatability | 0.05 %F·S |
| Hysteresis | 0.05 %F·S |
| Creep | 0.1%F·S/3min |
| Zero output | ± 0.1 m V/V |
| Temp. effect on zero | 0.2 %F·S/10ºC |
| Temp. effect on span | 0.05 %F·S/10ºC |
| Insulation resistance | ≥ 2000 MΩ |
| Excitation voltage | 3~10VDC |
| Operating temp. | -10~+40ºC |
| Safe overload | 120% F·S |
| Ultimate overload | 150% F·S |
| Cable length | Φ0.6 x 110 mm |
| Material | Aluminum alloy |
| Connecting cable | Φ0.8x200mm |
