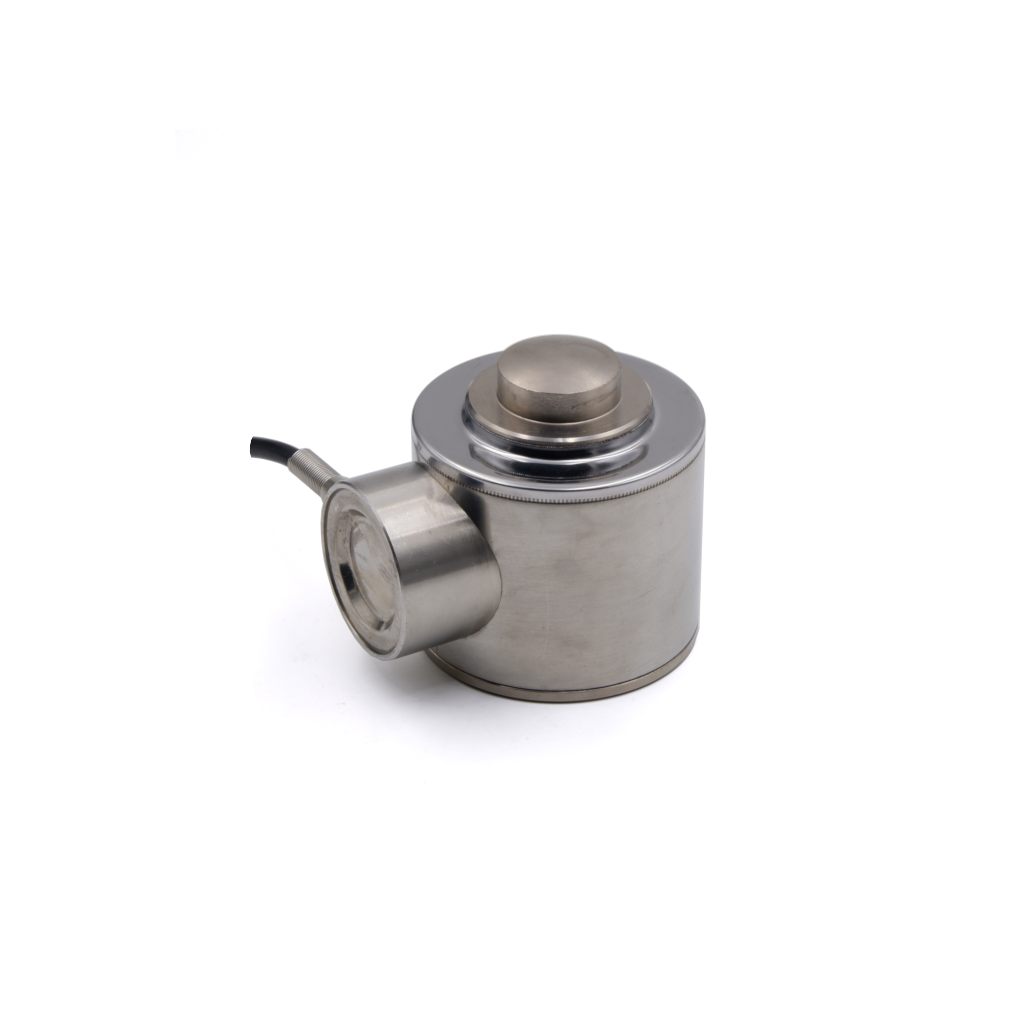

Sensorcon / SC4810 / Column Load Cell

KWT1S55 is a small range and high-precision tensile and compressive force sensor. Its main body is designed with an aluminum alloy structure, and its top is equipped with a compressive loading head, which is convenient for customers to apply pressure to the heart.

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

Column type load cell undertake special surface spraying and seal processing, can be used in harsh environment for a long time. Compression load cell can be applied for large platform scale, truck scale, rail weighbridge, and special for engineering force testing, overload safety testing and impact force measurement and control.

KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.

1.A ring-shaped column sensor is a device used to measure and monitor the axial preload of bolted connections.
2.It can be used to improve the reliability and safety of bolted connections, preventing bolts from loosening or becoming too tight.
3.It can reflect the contact interface stiffness and clamping force of bolted connections, and detect or quantify the tightening degree of bolts.
4. The inner hole size can be customized non-standard, and the elastomer is made of high-quality stainless steel material.

1. Alloy steel/Stainless steel;

2. High accuracy digital truck scales load cell with 1,000,000 counts

3.Suitable for electronic truck scale, track scale and other electronic weighing devices.

Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.

Material: stainless steel, Aluminum alloy

Size: Overload Protection High precision

KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.

SC9N은 무거운 계량 어플리케이션에 이상적인 컬럼형 폼팩터로 제작된 압축 로드셀입니다. 5톤에서 30톤까지 다양한 용량으로 제공되며, 대칭형 폼팩터로 설치 및 장착이 간편합니다.

The SC9N is a compression load cell built in the a column style form factor ideal for heavy weighing applications. Available in capacities from 5 Tonnes to 30 Tonnes, its symmetric form factor allow for easy installation and mounting.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.
