Features
- Available capacity: 2KG, 5KG, 10KG, 20KG, 30KG, 50KG, 100KG
- Aluminum construction
- 4 color coded wires, 50cm
Applications
- Tensile test machines
- Portable Scales
- IoT Sensors

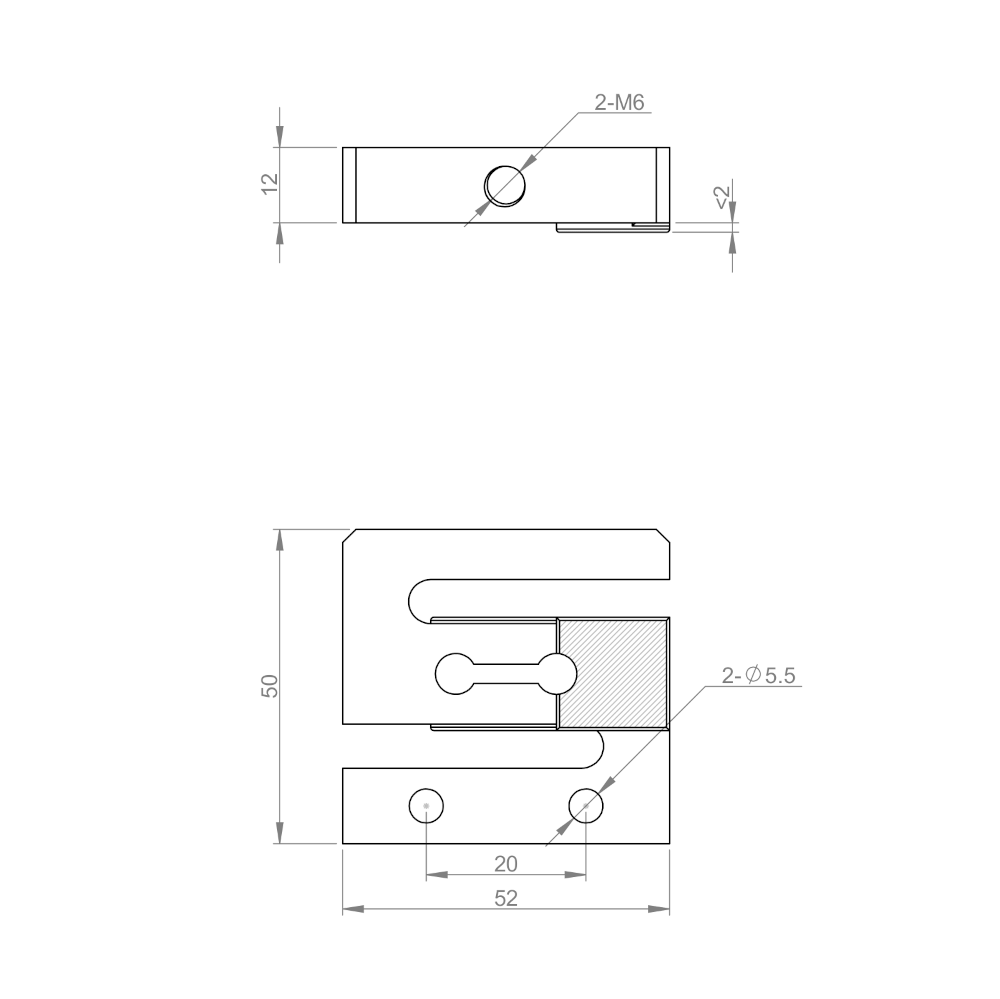

Dimensions
Specifications
| Rated Capacity | 1kg,2kg,5kg,10kg,
20kg,30kg,50kg,100kg |
| Accuracy | 0.02 %F·S |
| Rated Output | 2.0 ± 0.1mV/V |
| Linearity Error | ±0.03 %F·S |
| Hysteresis Error | ±0.02% %F·S |
| Repeatability Error | ±0.02% %F·S |
| Creep | ±0.03 %F·S /30min |
| Temp. effect on zero | ±0.05 %F·S/10℃ |
| Temp. effect on output | ±0.05 %F·S/10℃ |
| Zero balance | ±2 %F·S |
| Input impedance | 395±10Ω |
| Output impedance | 350±5Ω |
| Insulation resistance | ≥2000MΩ (50VDC) |
| Excitation voltage | 5~12VDC |
| Excitation voltage Max. | 18VDC |
| Operating temp. range | -20℃~+60℃ |
| Safe overload | 150 %F·S |
| Ultimate Overload | 200 %F·S |
| Cable length | Φ0.8mmx0.5m |
| IP Grade | IP65 |
| Material | Aluminum alloy |
