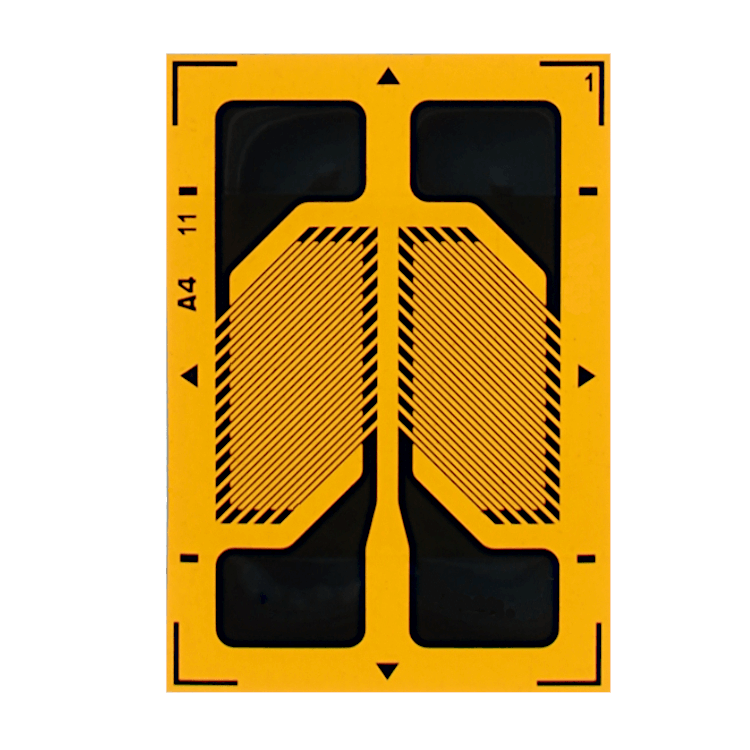

Sensorcon / HA / 스트레인 게이지

The GB strain gauge is a strain gauge designed with two strain gauges. Unlike the FB strain gauge series, the GB strain gauges are parallel and are oriented parallel axis set a certain distance apart. Options are available for three or four terminal output.

Add to Wishlist
Share it:

Model: HA

Features

  • Constantan grid material
  • Phenolic base material
  • Polyimide base material (Optional for High Temperature Environments)
  • Wire pre-bonded (Optional)

Applications

  • Stress analysis
  • Transducer construction

Structural diagram





Specifications

Parameters BF Series BF Series BA Series
Backing material Phenolic Modified phenolic Polyimide
Grid material Constantan Karma Constantan/Karma
Typical resistance 120/350/1000 350 /1000/2000 350 / 1000
Average resistance tolerance ≤ ±0.1%
Typical sensitivity 2.00~2.20 1.80~2.20 1.86~2.20
Sensitivity coefficient dispersion ≤ ±0.1%
Strain limit 2%
Fatigue life ≥ 107(±1000)
Operating temp. range -30~+80⁰C -30~+80⁰C -50~+50⁰C
Temp. self-compensation coefficient 9, 11,16,23,27





Grid Sizes

Type Model Grid Size
L (mm)		 Grid Size
W (mm)		 Base Size
L (mm)		 Base Size
W (mm)
HA B*175-2HA(**)A*-F*-X 2.0 4.2 9.0 5.6
B*350-1HA(**)A*-F*-X 1.2 5.0 8.0 4.0
B*350-2HA(**)A*-F*-X 2.4 4.6 9.5 5.3
B*350-2.5HA(**)A*-F*-X 2.5 4.3 9.5 5.8
B*350-2HA-P(**)A*-F*-X 2.0 4.4 9.0 5.6
B*350-3HA(**)A*-F*-X 2.8 4.1 9.7 6.2
B*350-3HA-P(**)A*-F*-X 3.0 4.5 9.4 6.5
B*350-4HA(**)A*-F*-X 3.8 4.2 9.0 7.8
B*350-6HA(**)A*-F*-X 5.7 6.1 10.9 10.5
B*650-3HA(**)A*-F*-X 2.8 4.8 9.5 6.1
B*700-3HA(**)A*-F*-X 2.8 5.0 9.6 5.9
B*700-3HA-P(**)A*-F*-X 3.0 5.4 9.9 6.2
B*700-4HA(**)A*-F*-X 3.8 6.5 9.4 8.0
B*1000-3HA(**)A*-F*-X 3.0 5.5 9.7 6.3
B*1000-4HA(**)A*-F*-X 4.0 5.6 9.9 7.5
HA-B B*60-3HA-B(**)A*-F*-X 3.0 4.1 9.4 6.5
B*175-2HA-B(**)A*-F*-X 2.0 4.2 9.0 5.6
B*175-3HA-B(**)A*-F*-X 3.0 4.4 9.4 6.4
B*350-2HA-B(**)A*-F*-X 2.4 4.6 9.5 5.3
B*350-3HA-B(**)A*-F*-X 2.8 4.1 9.7 6.2
B*350-3HA-B(**)A*-F*-X 3.0 4.5 9.4 6.5
B*350-4HA-B(**)A*-F*-X 3.8 4.2 9.0 7.8
B*350-6HA-B(**)A*-F*-X 5.7 6.1 10.9 10.5
B*400-3HA-B(**)A*-F*-X 3.1 4.7 10.4 7.4
B*650-3HA-B(**)A*-F*-X 2.8 4.8 9.5 6.1
B*700-3HA-B(**)A*-F*-X 2.8 5.0 9.6 5.9
B*700-3HA-B(**)A*-F*-X 3.0 5.4 9.9 6.2
B*1000-3HA-B(**)A*-F*-X 3.0 5.5 9.7 6.3
HA-C B*350-2HA-C(**)A*-F*-X 2.0 2.5 7.2 6.3
B*350-3HA-C(**)A*-F*-X 3.1 4.0 9.5 7.8
B*350-5HA-C(**)A*-F*-X 4.8 4.1 10.7 9.3
B*500-3HA-C(**)A*-F*-X 3.4 8.7 11.4 7.6
B*1000-5HA-C(**)A*-F*-X 4.8 6.5 15.7 9.6
HA-D B*350-2HA-D(**)A*-F*-X 2.0 2.5 7.2 6.3
B*350-3HA-D(**)A*-F*-X 3.1 4.0 9.5 7.8
B*350-8HA-D(**)A*-F*-X 8.0 9.0 13.0 14.4
B*1000-3HA-D(**)A*-F*-X 3.1 5.4 10.7 7.8
HA-E B*120-2HA-E(**)A*-F*-X 2.0 3.5 7.0 5.6
B*350-2HA-E(**)A*-F*-X 2.1 4.3 8.9 5.7
B*350-3HA-E(**)A*-F*-X 2.9 4.0 8.8 6.8
B*350-4HA-E(**)A*-F*-X 4.2 2.8 8.3 8.3
B*350-6HA-E(**)A*-F*-X 5.9 3.7 10.5 11.1
B*400-3HA-E(**)A*-F*-X 2.9 4.0 8.8 6.8
B*700-3HA-E(**)A*-F*-X 3.4 6.3 8.5 7.6
HA-F B*350-2HA-F(**)A*-F*-X 2.0 4.3 8.9 5.7
B*350-3HA-F(**)A*-F*-X 3.0 3.9 8.8 6.8
B*350-4HA-F(**)A*-F*-X 4.2 2.8 8.3 8.3
B*350-6HA-F(**)A*-F*-X 5.9 3.7 10.5 11.4







Material Properties

Type Model Grid Material Creep
HA B*175-2HA(**)A*-F*-X Constantan A4
B*350-1HA(**)A*-F*-X A6
B*350-2HA(**)A*-F*-X B4,B2,B0
B*350-2.5HA(**)A*-F*-X B4,B2,B0
B*350-2HA-P(**)A*-F*-X A2,A4,A5,A6,B0,B4
B*350-3HA(**)A*-F*-X B0,B2,B4
B*350-3HA-P(**)A*-F*-X A0~A9,B0~B8
B*350-4HA(**)A*-F*-X A4,A6,B0,B4
B*350-6HA(**)A*-F*-X A4
B*650-3HA(**)A*-F*-X B0
B*700-3HA(**)A*-F*-X B0
B*700-3HA-P(**)A*-F*-X A4
B*700-4HA(**)A*-F*-X A5
B*1000-3HA(**)A*-F*-X A4,A8,B2,B6,B8,B0
B*1000-4HA(**)A*-F*-X B0
HA-B B*60-3HA-B(**)A*-F*-X Constantan A4
B*175-2HA-B(**)A*-F*-X A4
B*175-3HA-B(**)A*-F*-X A2
B*350-2HA-B(**)A*-F*-X A2,A4,A6,B0,B4,B8
B*350-3HA-B(**)A*-F*-X A0~A9,B0~B8
B*350-3HA-B(**)A*-F*-X A0~A9
B*350-4HA-B(**)A*-F*-X A4
B*350-6HA-B(**)A*-F*-X A8,B0
B*400-3HA-B(**)A*-F*-X A8
B*650-3HA-B(**)A*-F*-X B0
B*700-3HA-B(**)A*-F*-X B0
B*700-3HA-B(**)A*-F*-X A4
B*1000-3HA-B(**)A*-F*-X A2,A4,B2
HA-C B*350-2HA-C(**)A*-F*-X Constantan A6,A8,B0,B2,B4
B*350-3HA-C(**)A*-F*-X A4,A6,A8,B0,B2,B4
B*350-5HA-C(**)A*-F*-X A4
B*500-3HA-C(**)A*-F*-X A2
B*1000-5HA-C(**)A*-F*-X A4
HA-D B*350-2HA-D(**)A*-F*-X Constantan A0,A2,A4,A6,A8,B2,B4,B8
B*350-3HA-D(**)A*-F*-X A0~A9,B0~B8
B*350-8HA-D(**)A*-F*-X A0
B*1000-3HA-D(**)A*-F*-X A4,A8,B0,B4
HA-E B*120-2HA-E(**)A*-F*-X Constantan A8
B*350-2HA-E(**)A*-F*-X A8
B*350-3HA-E(**)A*-F*-X A4,A8,B0,B1,B4
B*350-4HA-E(**)A*-F*-X A4,A8
B*350-6HA-E(**)A*-F*-X A8
B*400-3HA-E(**)A*-F*-X A4,A8,B0,B1,B4
B*700-3HA-E(**)A*-F*-X A2
HA-F B*350-2HA-F(**)A*-F*-X Constantan A8
B*350-3HA-F(**)A*-F*-X A4，A8
B*350-4HA-F(**)A*-F*-X A4，A8
B*350-6HA-F(**)A*-F*-X A8
