Products Description

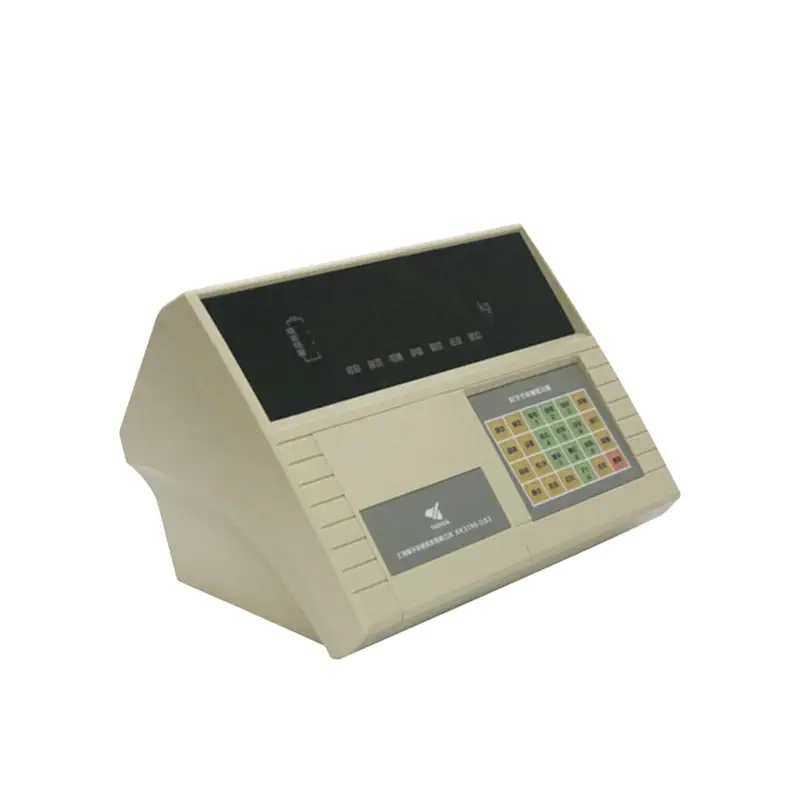

1. Model: XK3190-DS3
2. Interface of digital load cell(s):
Interface mode:
RS485
Transmission distance: ≤1000 meter
Transmission speed:
9600 baud
Signal power source:
DC10V,≤400mA
Interface capability:
≤16 digital load cell(s)
Compatible protocol:
Digital module protocol of the Company
3. Display: 7-digit super brightness white light LED display, 10 status
indicating lights.
4. Keyboard: Number keys 0~9
Function keys 24 (10 composite keys with number keys)
5. Clock: For displaying year, month, date, hour, minute, second, leap year/month
automatically, without the influence from power break down.
6. Scoreboard display interface
Transmission mode
Serial output, 20mA electric current loop signal
(constant-current source output)
Transmission baud rate 600
Transmission distance ≤2000 meters
7. Serial communication interface
Transmission mode
RS232/RS422 (optional)
Baud rate
600/1200/2400/4800/9600 optional
Transmission distance RS232 ≤30 meters; RS422 ≤1200 meters

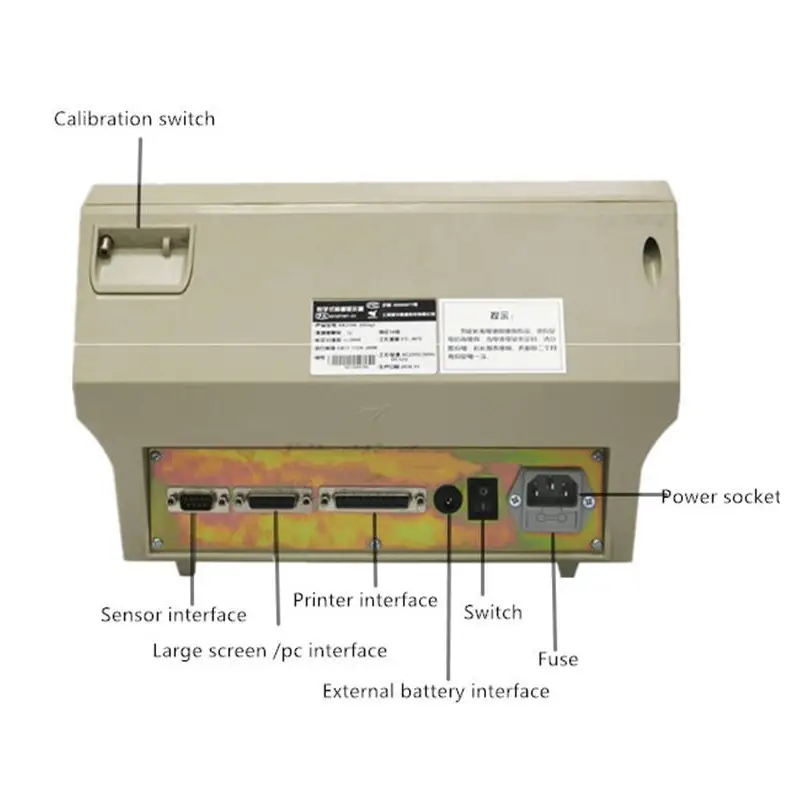

8. Printing interface
The indicator is equipped with a standard parallel printing interface
for connecting with ESPON LQ-300K(+), Panasonic KX-P1131
and KX-P1121 etc. wide line printers.
9. Data storage
1000 sets of vehicle numbers and tare weights, 201 sets of article
numbers and 1001 sets of weighing records.
10. Application environment
Power source
AC 100~264V, 50~60Hz
DC 12V7AH battery (optional)
Operating temperature
-10 ~ 40 ℃ ℃
Storage and transportation temperature
-25 ~ 55 ℃ ℃
Relative humidity
≤85%RH
Preheat time
≤30 minutes
Fuse
0.5A
