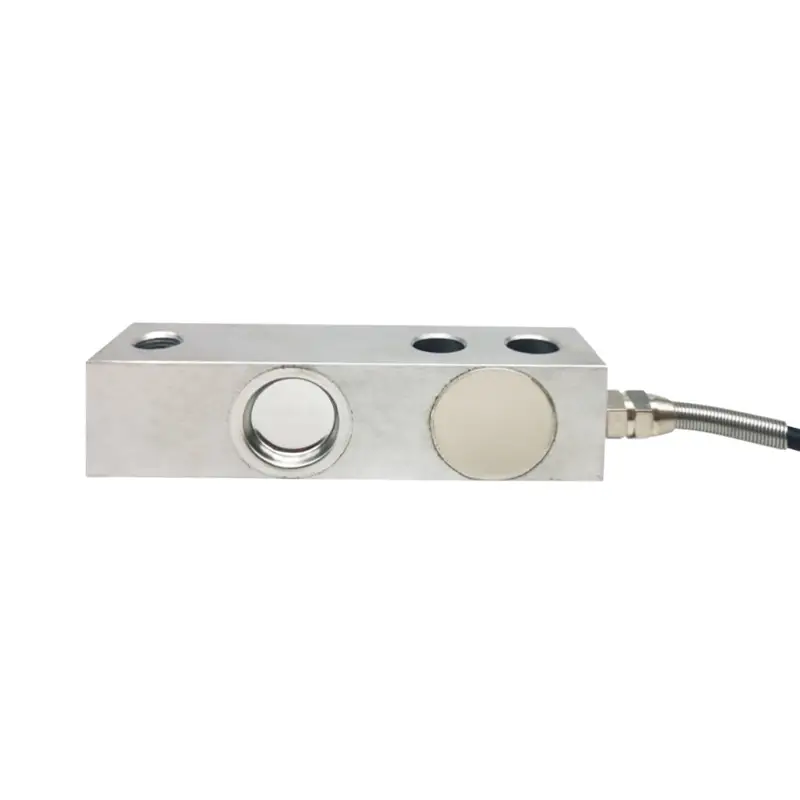

Santwell / SQC-DSB / 시어 빔 로드셀

Ningbo Santwell Import & Export Co., Ltd always keeps well informed about the technical development and new product R&D, which guarantees we can develop new products on a regular basis. It is designed in accordance with the national standard. Ningbo Santwell Import & Export Co., Ltd aims to become the most influential enterprise in the world. In order to achieve this goal, we will insist on introducing high-tech talents and learning international advanced technology, and strive to improve technical strength and gain the initiative in competition.

Model Number: SQC-DSB Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: SANTWELL
Usage: floor scale Theory: resistant
Output: 2.0mv/v Description: Load cell
Rated Load: (100,150,200,250,300)kg,0.5t,1t,2t,3t,5t,10t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S















Add to Wishlist
Share it:

platform Scale weight sensor 300kg 500kg shear beam load cell 1000kg 2000kg 3000kg low prices of load cell has passed the tests conducted by our professional QC inspectors. Using materials that are offered by reliable raw materials suppliers,Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells has stable yet powerful performance. It has so many advantages which are newly and independently developed, creating plenty of benefits.

shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 5000 Pieces),Graphic customization (Min. Order: 5000 Pieces)

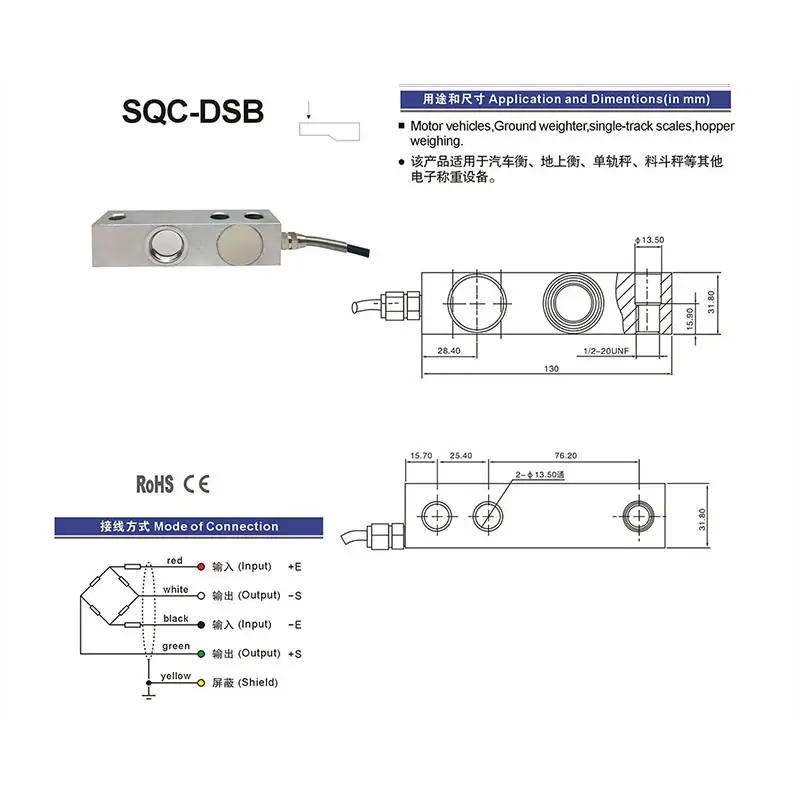

Technical Parameter

Rated Load 0.5t,1t,2t,3t,5t,10t
Sensitivity
 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~12V(AC or DC)
Maximum Excitation Voltage 15V(AC or DC)
Zero Balance
±1%F.S
Input Impedance
380±5Ω
Output Impedance 350±2Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero
±0.02%F.S/10℃
Construction Alloy Steel
Protection Class IP67
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+E:Red

Input-E:Black

Output+S:Green Output-S:White
