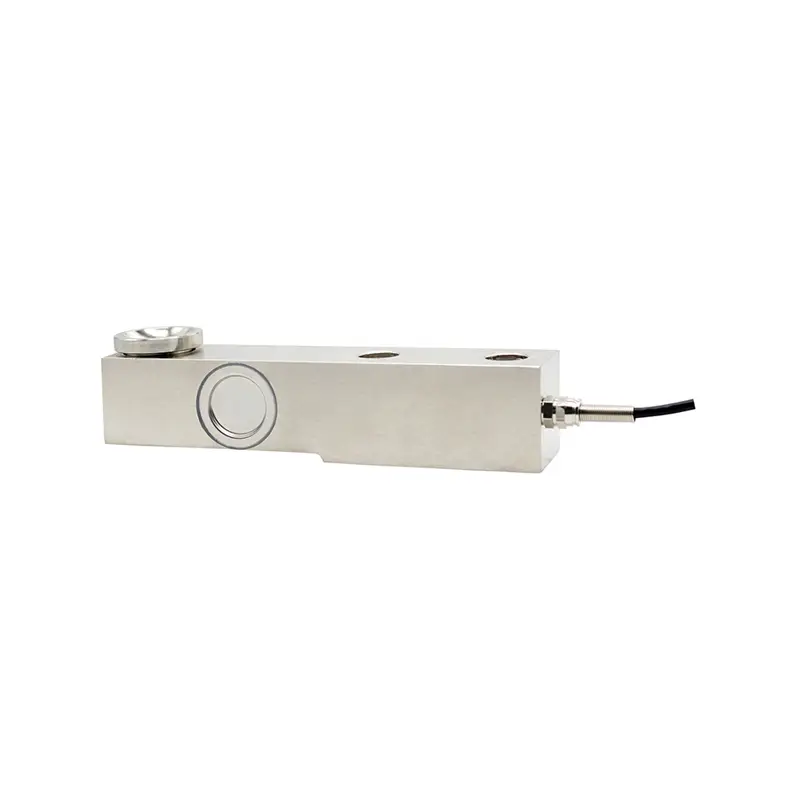

Santwell / SB-B / 싱글 엔디드 시어 빔 로드셀

SB-B Weighbridge weight sensor chinese cantilever zemic prices of shear beam load cell is a hot seller well recognized by users around the world. Designed by professional designers, SB-B Weighbridge weight sensor chinese cantilever zemic prices of shear beam load cell is attractive in its appearance. After years of growth and development,Ningbo Santwell Import & Export Co., Ltd have constructed characteristic corporate culture systems and confirmed our business principle of ‘customer first’. We will always focus on customers’ needs and promise that we will provide the most satisfying and valuable products.

Model Number: SB-B Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: santwell
Usage: Floor scale, PRESSURE SENSOR Theory: /, Resistance Sensor
Output: 350Ω Description: Shear beam load cell
Rated Load: 0.5t,1t,2t,3t,5t,10t,20t,25t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ

















Add to Wishlist
Share it:

SB-B Weighbridge weight sensor chinese cantilever zemic prices of shear beam load cell with good performance and reliable quality are created by conforming to the development trend of the industry, integrating internal superior resources, and adopting the industry’s cutting-edge manufacturing technology and production process.Therefore,It has been proved that the product can be applied to Force Sensors & Load Cells.

Specification: 2t, 3t, 0.5t, 1t

shipping: Support Sea freight · Land freight



Technical Parameter

Rated Load 0.5t,1t,2t,3t,5t,10t,20t,25t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~12V(AC or DC)
Maximum Excitation Voltage
15V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 380±10Ω
Output Impedance 350±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.05%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction
Alloy Steel
Protection Class IP67&IP68
Citation
GB/T7551-2008/OIML R60

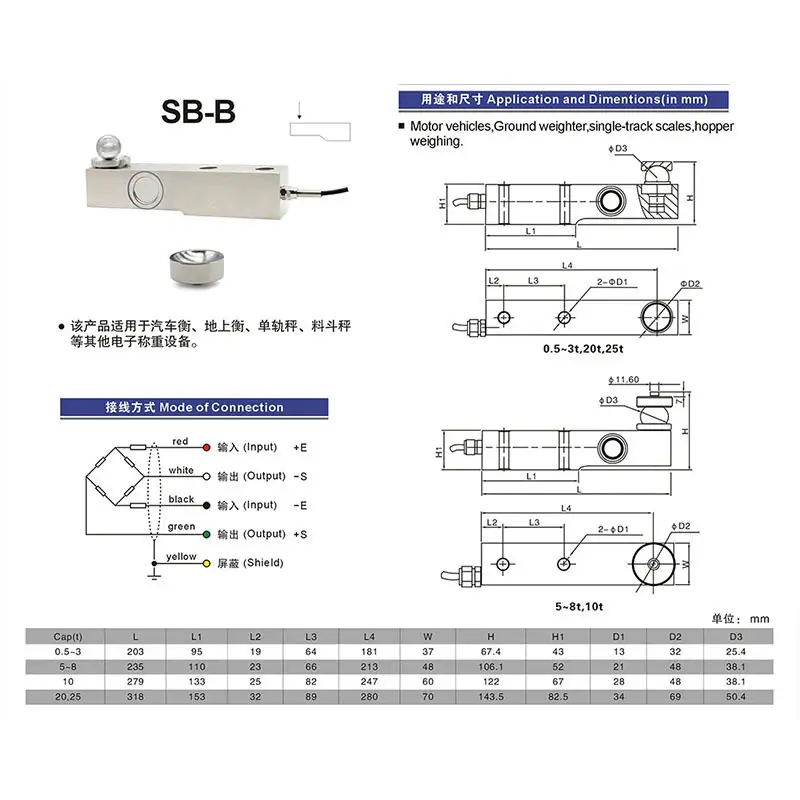

Mode of Connection Input+E:Red Input-E:Black Output+S:Green Output-S:White
