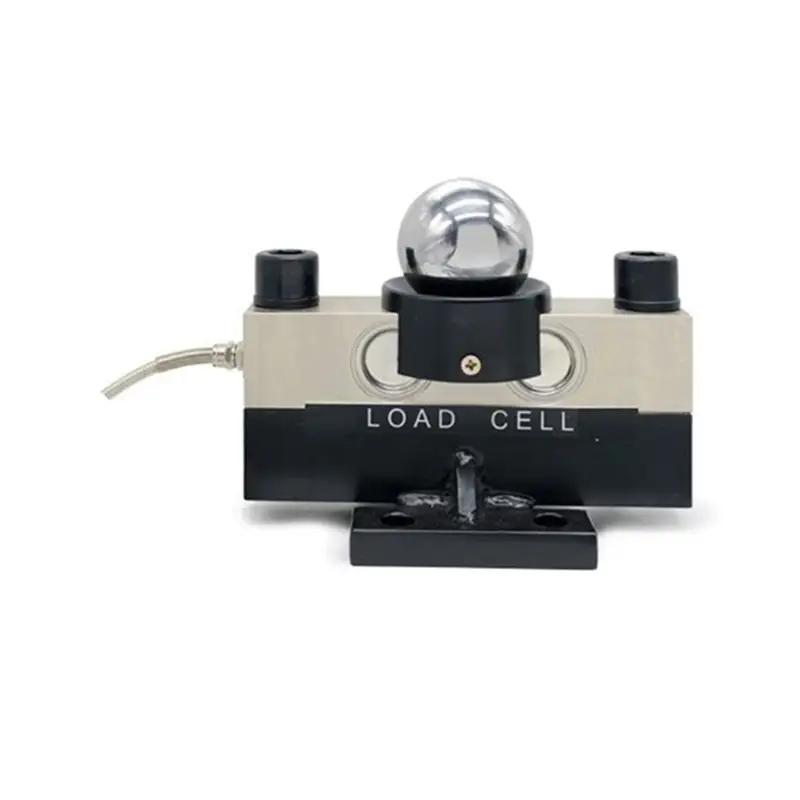

Santwell / QSZD / 더블 엔디드 시어 빔 로드셀


Since launched,Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells has been named as one of the best and popular products in our company. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. In the future, Ningbo Santwell Import & Export Co., Ltd will always adhere to the business philosophy of “people-oriented, innovative development”, based on excellent quality, driven by technological innovation, committed to high-quality products, high-level technology and high-efficiency operations, and promotes the company The economy develops soundly and rapidly.

Warranty: 1 year Customized support: OEM, ODM, OBM
Place of Origin: Zhejiang, China Brand Name: Santwell
Model Number: QSZD Rated Load: 10t 20t 30t 40t
Sensitivity: 2.0000±0.002mV/V Total Error: ±0.02%F.S
Creep(30minutes): ±0.02%F.S Recommended Excitation Voltage: 5V~18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: 150%F.S
Utimate Overload: 200%F.S










Share it:

Our professional employees are skilled at utilizing technical resources. By utilizing technology, we ensure the product manufacturing process goes efficiently.In the application field(s) of Pressure Sensors, Zemic QS 10T 20T 30T 40T 5V~18V Beam Load Cell Shear Beam Load Cell For Weighbridge Truck Scale can play out its greatest effect.

Specification : 10T, 20T, 30T, 40T

shipping: Support Sea freight · Land freight
Customization:Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
Technical Parameter
Rated Load
10t 20t 30t 40t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes)
±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 775±10Ω
Output Impedance 700±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Stainless Steel/Alloy steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection
Input+E:Red

Input-E:Black Output+S:Green Output-S:White
