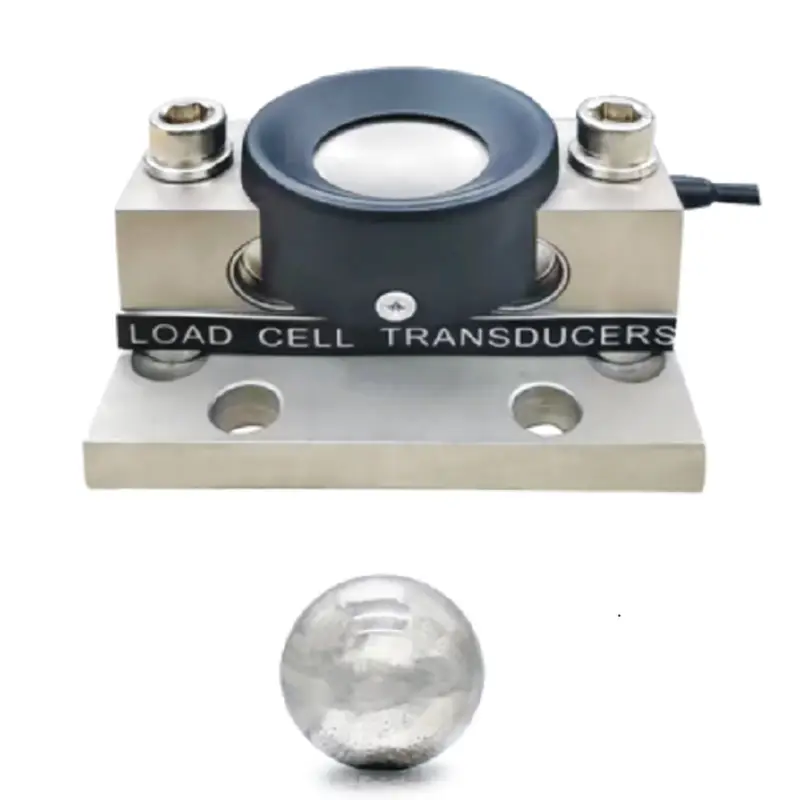

Santwell / QS-ZX / 더블 엔디드 시어 빔 로드셀


In this era, it is necessary for any enterprise including Ningbo Santwell Import & Export Co., Ltd to improve our R&D strength and develop new products on a regular basis. QS-X 10 20 30 T Specialized Customized Production Alloy Steel Weighbridge 10 Ton Load Cell has made great technological breakthroughs because technicians often hold training and technical exchanges to improve professional skills. Ningbo Santwell Import & Export Co., Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Rated Load
T
10/20/30
Sensitivity
mV/V
2.0000±0.002
Total Error %F.S
±0.02
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance %F.S ±1
Input Impedance Ω
775±10
Output Impedance Ω
700±5
Insulation Impedance ≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction Alloy steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60

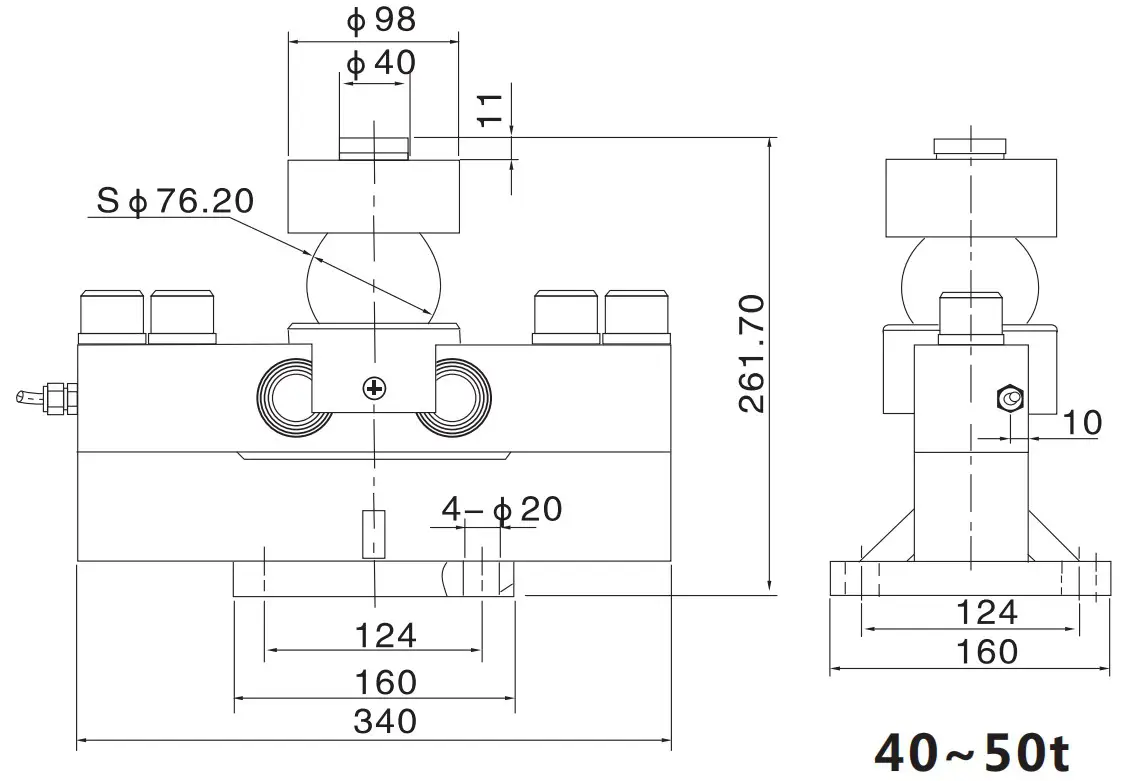

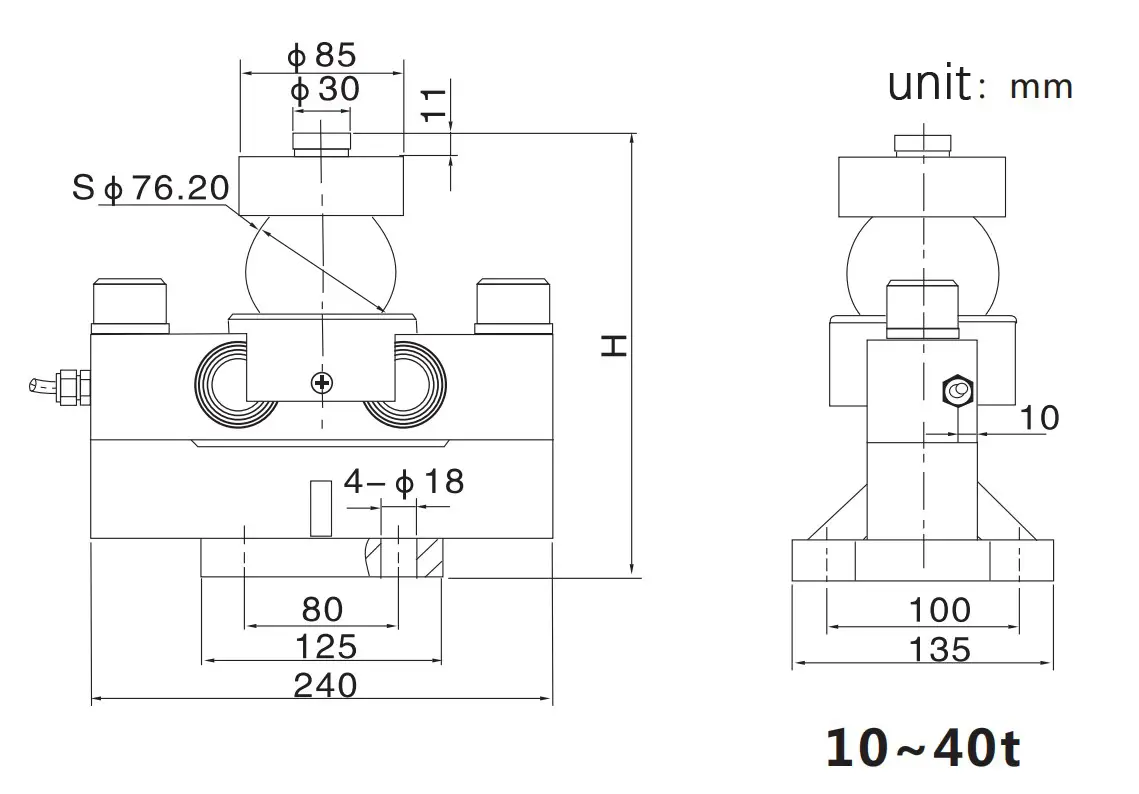

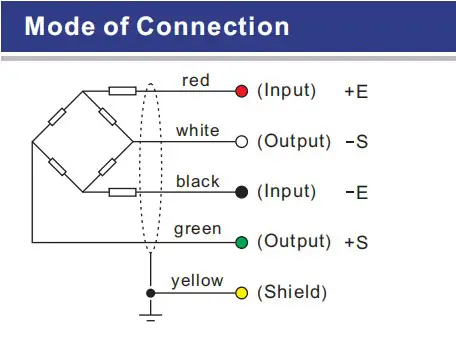

Mode of Connection

Input+E:Red Input-E:Black

Output+S:Green Output-S:White








Share it:

Our R&D engineers applied the technology to the manufacturing of this kind of product.With those approved performances, the product can be widely found in the field(s) of Force Sensors & Load Cells.

Specification : 20T, 30T, 10T

shipping: Support Sea freight · Land freight

Customization:Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)

Technical Parameter

Rated Load 3~6t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 775±10Ω
Output Impedance

700±5Ω

Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.05%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Aluminum
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
