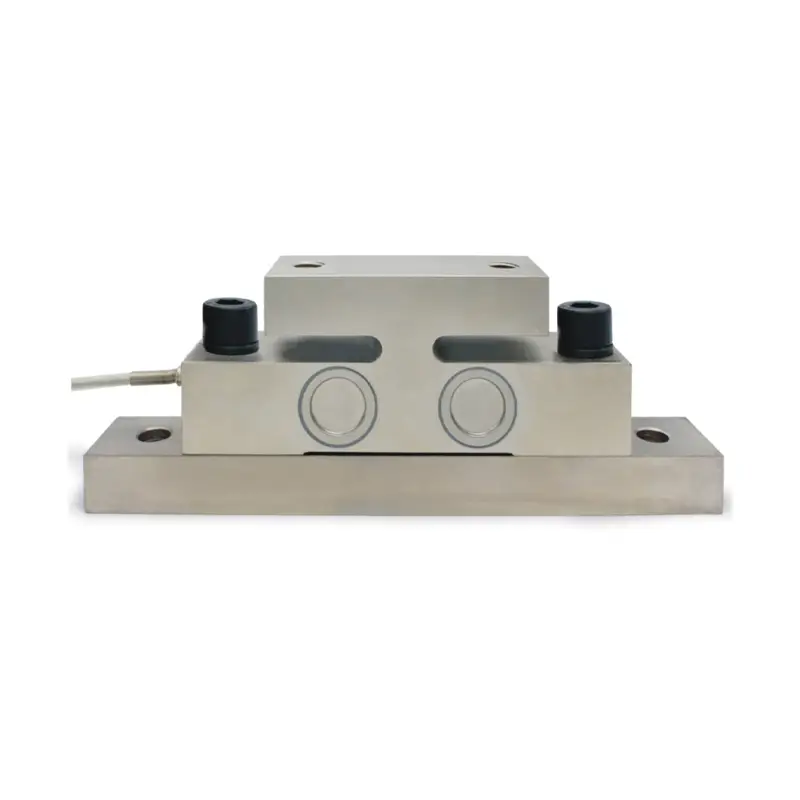

Santwell / QS-YBF / 더블 엔디드 시어 빔 로드셀


State-of-the-art technologies introduced and upgraded for the more efficient and stable manufacturing of the product. It functions perfectly in the application scenario(s) of Force Sensors & Load Cells. We can provide you with the highest quality products within your budget. Santwell has been dedicated to the design, R&D, manufacturing, and updates of Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.

Model Number: QS-YBF Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: truck scale Theory: resistan
Output: Resistance strain Description: Double ended shear beam load cell
Rated Load: 10/20/30 T Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S










Share it:

Since inception, we have been constantly upgrading the manufacturing technologies.Thanks to those technologies, product performance has also improved a lot. It has a wide application and now can be found in the field(s) of Force Sensors & Load Cells.

Specification :  10T, 20T, 30T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)

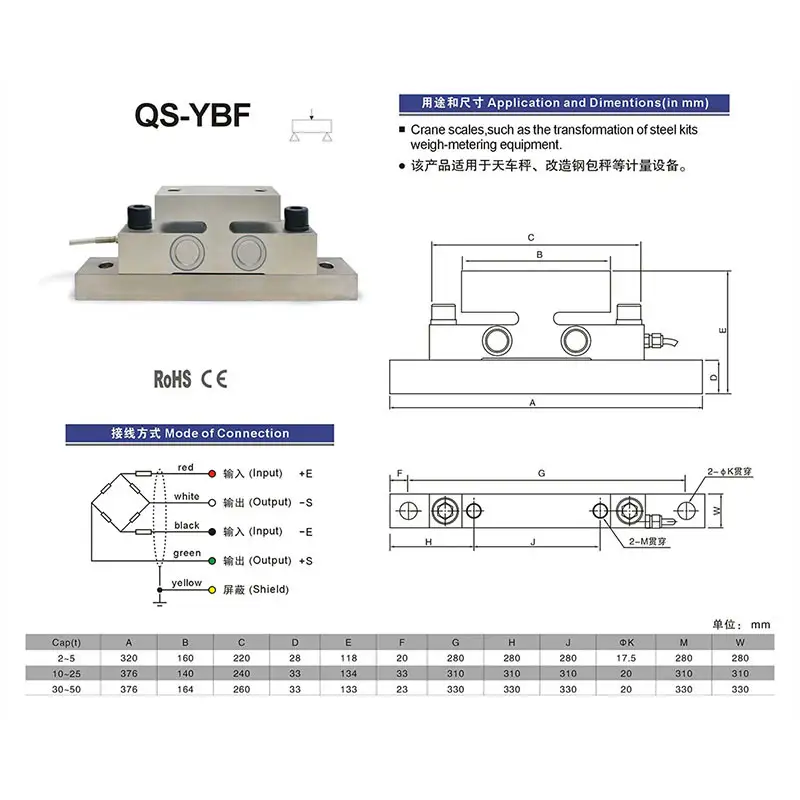

Technical Parameter

Rated Load
T
10/20/30
Sensitivity
mV/V
2.0000±0.002
Total Error %F.S
±0.02
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance %F.S ±1
Input Impedance Ω
775±10
Output Impedance Ω
700±5
Insulation Impedance ≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction Alloy steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection

Input+E:Red Input-E:Black

Output+S:Green Output-S:White
