Santwell / QS-YBC / 크레인 저울 계량 시스템 로드셀


After years of painstaking research, Ningbo Santwell Import & Export Co., Ltd’s technicians have successfully developed QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell. The team uses the most advanced production equipment and independent research and development technology to minimize QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell development cycle and ensure the high quality and strong reliability of the product. Santwell is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.

Model Number: QS-TL Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: Truck scale, railway scale, blending scale Theory: resistan

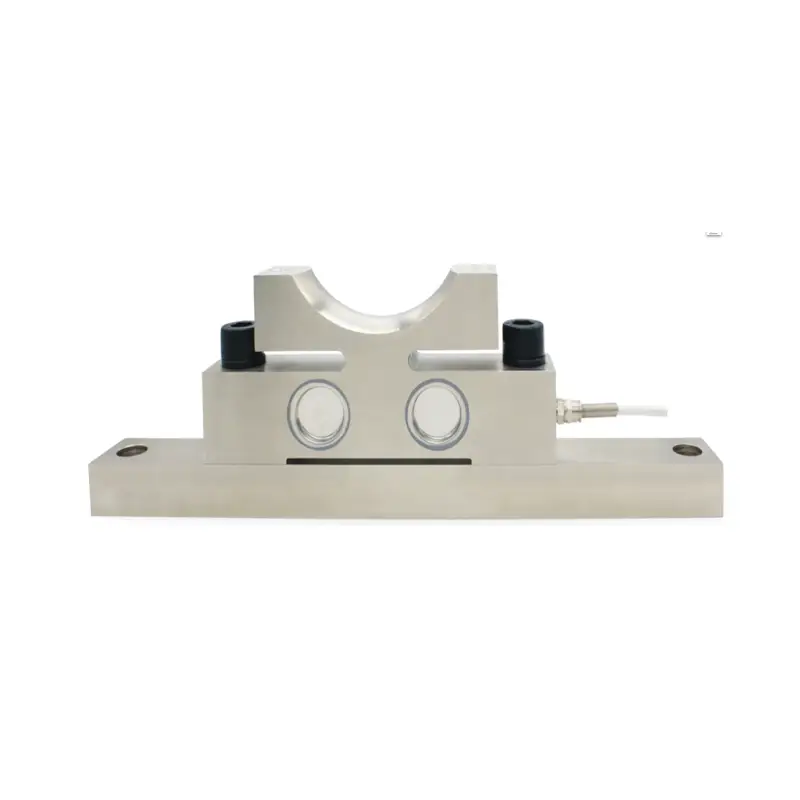

Output: Resistance strain Description: double ended shear beam
Rated Load: 10t 20t 30t 40t Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V-18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: ±150%F.S UItimate Overload: ±200%F.S




Share it:

Our technicians have strong abilities to develop and optimize technologies. We have to admit that technologies play an important in the QS-YBC 10T 20T 30T Digital Weighing Sensor Truck Scale Compression 30T Digital Load Cell manufacturing process.It is used mainly in the field(s) of Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells now.

Specification : 10t, 20t, 30t

shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)

Technical Parameter

Rated Load
T
10/20/30
Sensitivity
mV/V
1000000d
Total Error %F.S
±0.02
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance %F.S ±1
Insulation Impedance
≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction Alloy steel
Protection Class
IP67&IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection

Input+E:Red Input-E:Black Output+S:Green

Output-S:White

Communication Interface RS485
