Santwell / QS-X / 10~30톤 트럭용 계량 더블 엔디드 시어 빔 로드셀


Ningbo Santwell Import & Export Co., Ltd maintains stringent norms of quality to manufacture QS-X Weight 10-30t Double Ended Shear Beam Sensor Truck Scale Load Cell. Modern technologies innovate means are adopted for the flawless manufacturing of QS-X Weight 10-30t Double Ended Shear Beam Sensor Truck Scale Load Cell.So far, the application areas of the product have been expanded to the Force Sensors & Load Cells. It is the support of our customers that propels us to continue to move forward. Ningbo Santwell Import & Export Co., Ltd will keep providing high-quality products and professional services as always for customers. In addition, talents are the core pillar of a company. We will organize regular training on our staff to improve their skills.

Model Number: QS-X Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: santwell
Usage: truck scale Theory: resistan
Output: Resistance strain Description: Double ended shear beam load cell
Rated Load: 10t-30t Sensitivity: 2.0000±0.002mv/v
Total Error: ±0.02%F.S Creep(30 minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V(AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S UItimate Overload: 200%F.S

Share it:

Driven by more different and unique needs from customers, we have successfully innovated and upgraded our currently-used technologies.Its high flexibility and versatility have made it popular in the field(s) of TOP scale.

Specification :  10T, 20T, 30T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)

Technical Parameter

Rated Load
T
10/20/30
Sensitivity
mV/V
2.0000±0.002
Total Error %F.S
±0.02
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage
V
5 ~18 (AC or DC)
Maximum Excitation Voltage
V
24 (AC or DC)
Zero Balance %F.S ±1
Input Impedance Ω
775±10
Output Impedance Ω
700±5
Insulation Impedance ≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction Alloy steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60

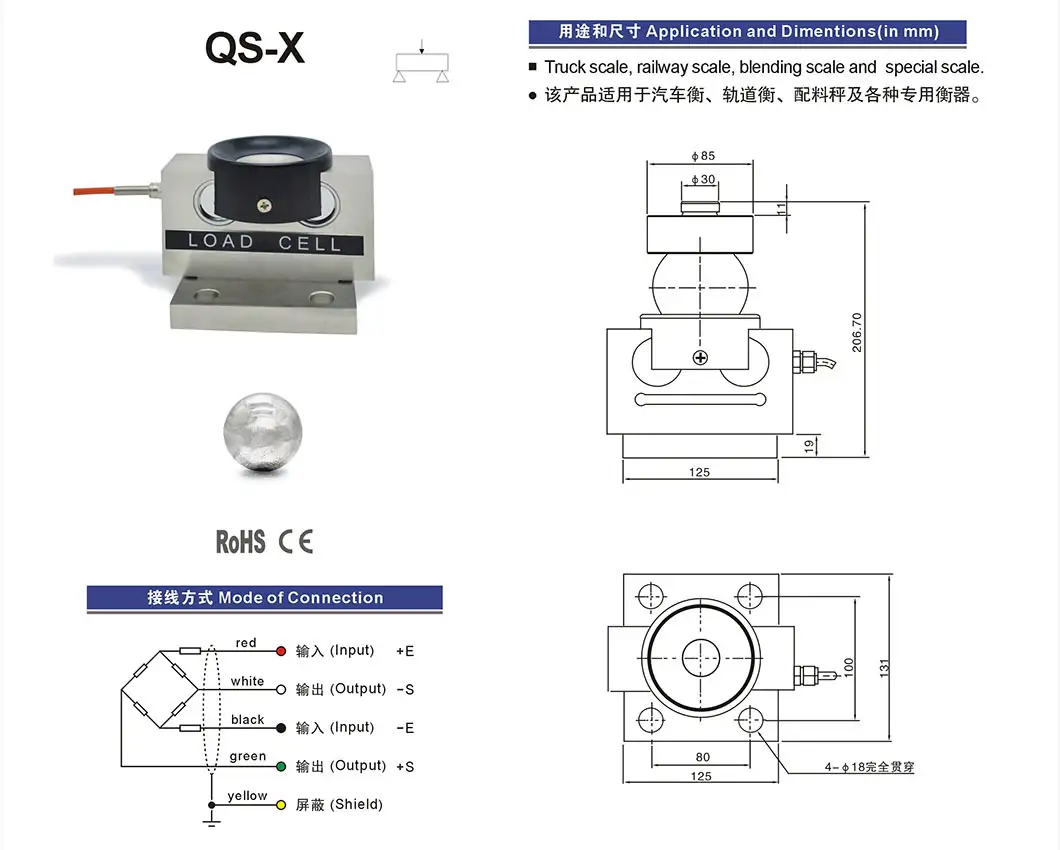

Mode of Connection
Input+E:Red Input-E:Black

Output+S:Green Output-S:White
