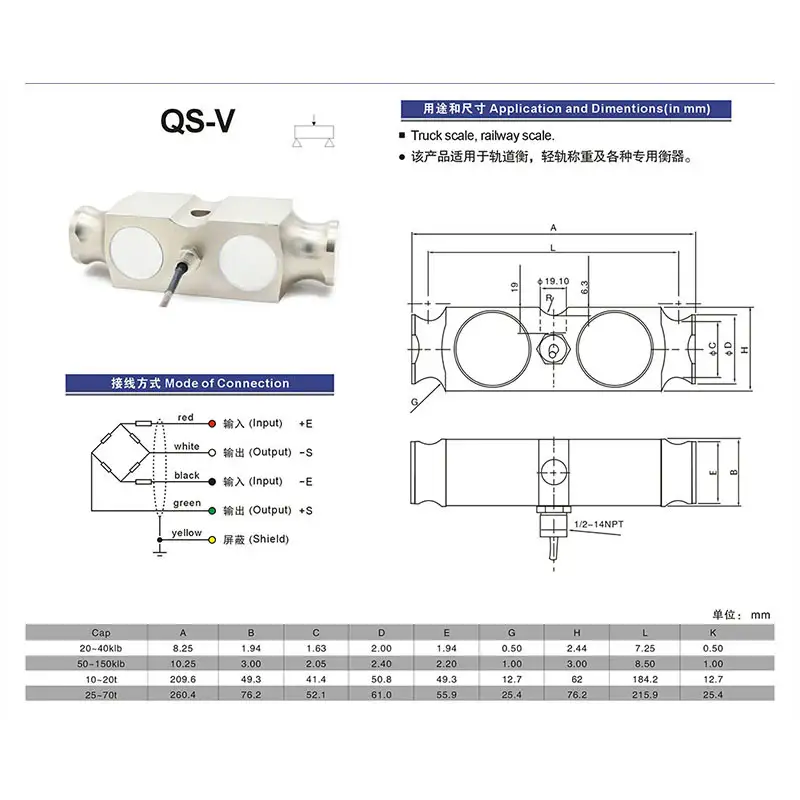

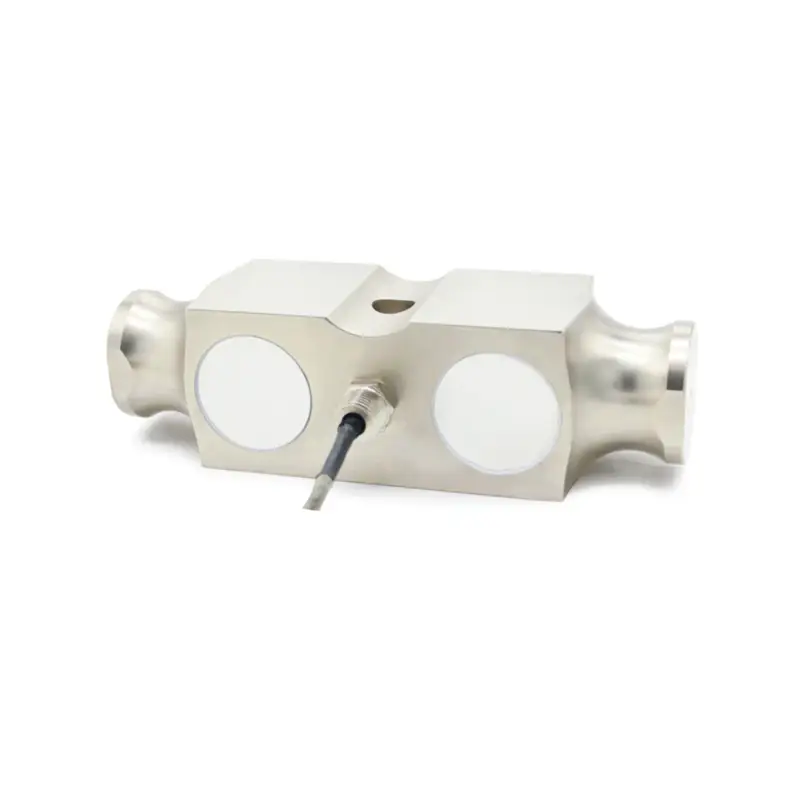

Santwell / QS-V / 트럭·철도용 계량 더블 엔디드 시어 빔 로드셀


In the fierce market competition, Ningbo Santwell Import & Export Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Force Sensors & Load Cells industry. We offer buyer Warehouse Measurement 75 Klb 24 V 2Cr14Ni Double Ended shear beam load cell QS-V that they need at prices that fit their pocket. Relying on our excellent products and sensible marketing strategy,Ningbo Santwell Import & Export Co., Ltd hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.

Model Number: QS-V Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Description: double ended shear beam load cell Rated Load: 75klb
Sensitivity: 2.0000 mv/v Total Error: ±0.04%F.S
Creep(30 minutes): ±0.02%F.S Recommended Excitation Voltage: 5V-18V(AC or DC)
Maximum Excitation Voltage: 24V(AC or DC) Zero Balance: ±1%F.S
Insulation Impedance: ≥5000MΩ Safe Overload: ±150%F.S
UItimate Overload: ±200%F.S Application: Warehouse Measurement














Share it:

Our products and solutions are all backed by our advanced manufacturing capabilities and leading technologies. So far, we have been able to manufacture the Warehouse Measurement 75 Klb 24 V 2Cr14Ni Double Ended shear beam load cell QS-V skillfully. Its application ranges include Force Sensors & Load Cells.

Specification :  10T, 20T, 30T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 300 Pieces),Graphic customization (Min. Order: 100 Pieces)

Technical Parameter

Rated Load klb 75klb
Sensitivity
mV/V
2.0000
Total Error %F.S
±0.04
Creep(30minutes) %F.S
±0.02
Recommended Excitation Voltage V
5 ~18 (AC or DC)
Maximum Excitation Voltage V
24 (AC or DC)
Zero Balance %F.S ±1
Input Impedance Ω
775±10
Output Impedance Ω
700±5
Insulation Impedance ≥5000
Safe Overload %F.S 150
Ultimate Overload %F.S
200
Operating Temperature Range
(-30~+70)
Compensated Temperature Range
(-20~+60)
Temperature Effect On Load
±0.02%F.S/10
Temperature Effect On Zero ±0.02%F.S/10
Construction
2Cr14Ni
Protection Class
IP68
Citation GB/T7551-2008/OIML R60
Mode of Connection
Input+E:Red Input-E:Black Output+S:Green Output-S:White
