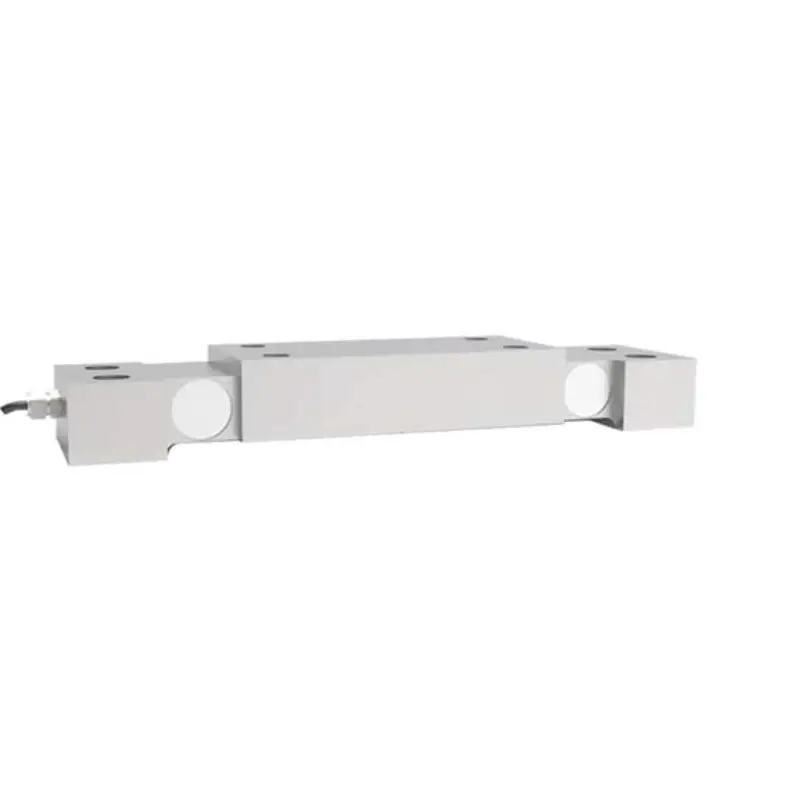

수많은 연구와 개발을 통해 닝보 산트웰 수출입유한공사(Ningbo Santwell Import & Export Co., Ltd.) 는 HM9B QS 30톤 합금강 아날로그 더블 시어 빔 로드셀을 성공적으로 선보였습니다. 이 로드셀은 **트럭 계량기 및 대형 차량용 저울(Weightbridge)**에 최적화된 고성능 센서로, 탁월한 내구성과 안정된 측정 정확도를 자랑합니다. 시장 출시 이후, 본 제품은 세련된 외관과 우수한 성능으로 고객들로부터 높은 신뢰와 호평을 받고 있습니다.
Having been through countless days and nights,Ningbo Santwell Import & Export Co., Ltd has successfully developed Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell. It is bound to catch people’s eyeballs in various fields. After Brand Hm9b QS 30 ton alloy steel analog weight sensor for trucks double shear beam weightbridge load cell launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Ningbo Santwell Import & Export Co., Ltd always adhere to the principle of ‘creating values for customers and bringing benefits to stakeholders’. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.

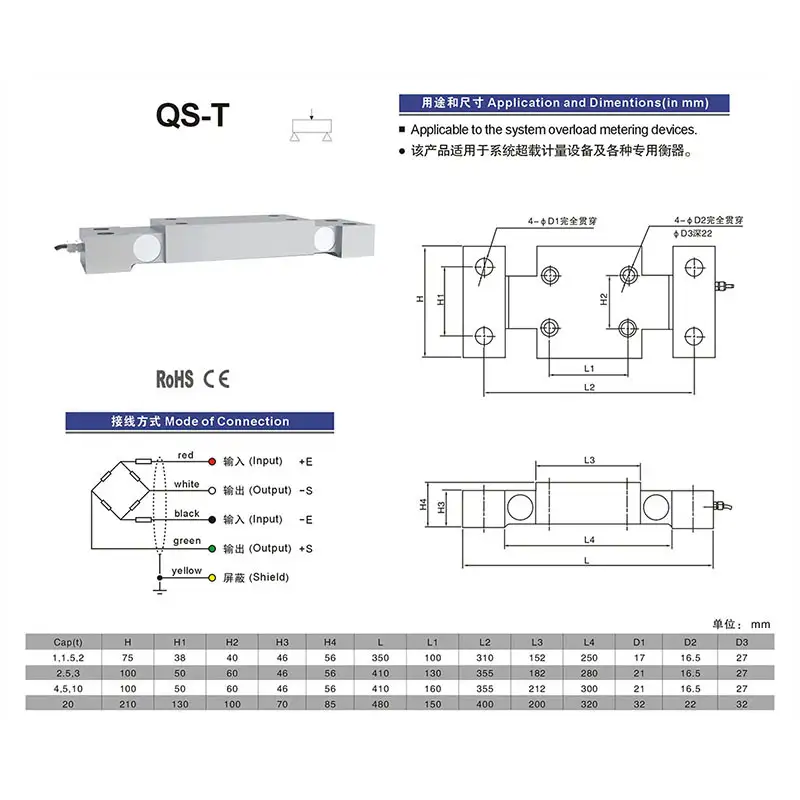

Model Number: |
QS |
Type: |
Load Cell |
Place of Origin: |
Zhejiang, China |
Brand Name: |
SantWell |
Usage: |
Truck scale, railway scale, blending scale |
Theory: |
resistan |
Output: |
Resistance strain |
Description: |
Double ended shear beam |
Rated Load: |
20t 30t 40t |
Sensitivity: |
2.0000±0.002mV/V |
Total Error: |
±0.02%F.S |
Creep(30minutes): |
±0.02%F.S |
Recommended Excitation Voltage: |
5V~18V(AC or DC) |
Maximum Excitation Voltage: |
24V(AC or DC) |
Zero Balance: |
±1%F.S |
Insulation Impedance: |
≥5000MΩ |
Safe Overload: |
150%F.S |
Utimate Overload: |
200%F.S |
