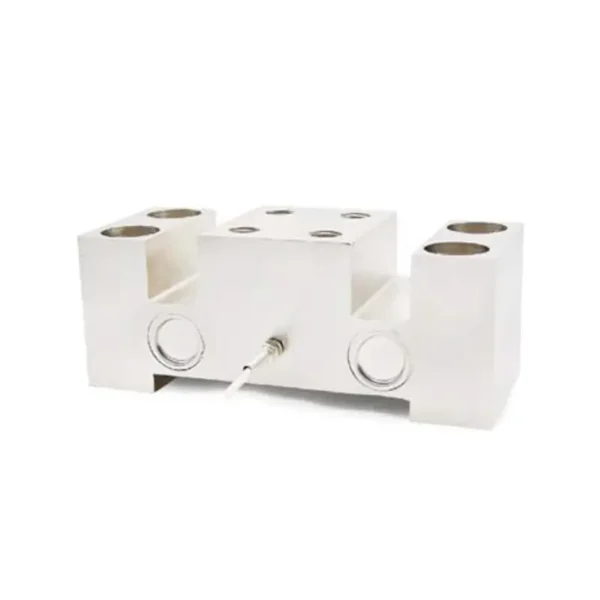

Santwell / QS-F / 스틸 키트 계량용 더블 엔디드 시어 빔 로드셀


Model Number: QS-F Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Usage: truck scale, PRESSURE SENSOR Theory: resistance strain, Resistance Sensor
Output: 1000000d Description: double ended beam load cell
Sensitivity: 1000000d Temperature range,operating: (-30~+70)℃
Construction: Alloy Steel Rated Load: 10/20/30 T
Safe Overload: 150%F.S Protection Class: IP67 & IP68
Output Impedance: 700±5Ω Communication Interface: RS485

Share it:

High-level technologies are adopted to manufacture the product now. It is those technologies that contributes to the manufacturing of high-quality and multi-functional QS-F Specialized Customized Production Alloy Steel Weight Sensor Cheap Weighbridge Load Cell For Trucks.In the application field(s) of Force Sensors & Load Cells , the product is commonly seen and widely used.

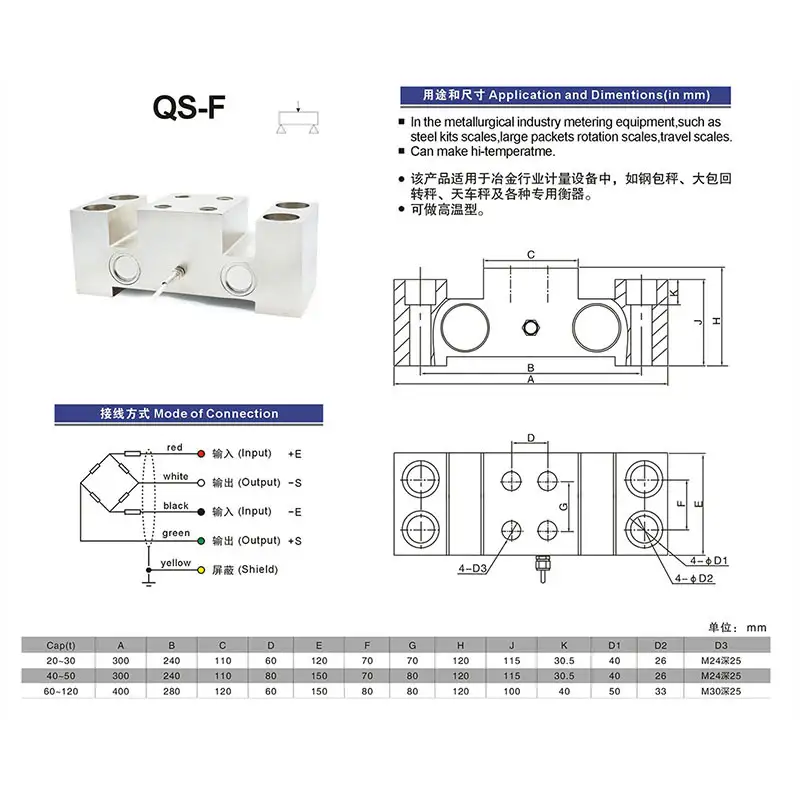

Specification :  10T, 20T, 30T

shipping: Support Sea freight · Land freight<

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 500 Pieces),Graphic customization (Min. Order: 500 Pieces)
