| Type: | load cell | Operating temperature: | -20 ~+80℃ |
| Theory: | Resistance Sensor | Features: | Round shape |
| Place of Origin: | China | Brand: | Santwell |

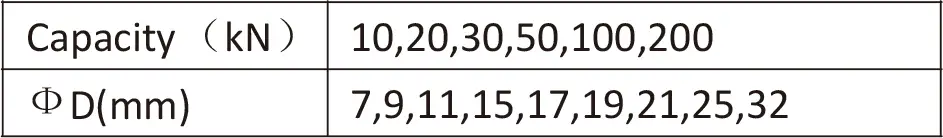

| Capacity: | 10/20/30/50/100/200kN | Output: | Analog signal, Analog SENSOR |
| Application: | Industrial test and research force measuring | Operating temperature: | -20 ~+80℃ |
| Material: | Stainless steel | Non-linearity: | 0.1%F.S |
| Hysteresis: | 0.1%F.S |

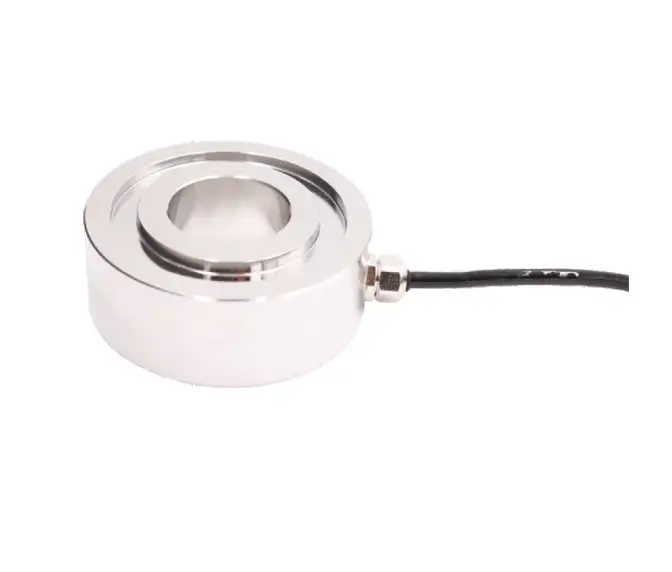

MA117 Compression Sensor miniature force measuring spoke style load cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Shipping: Support Sea freight · Land freight
Customization: Customized logo
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 제공합니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 제공합니다.
50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP68 등급의 보호 성능을 갖추고 있습니다.
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.
Ningbo Santwell Import & Export Co., Ltd comes here today with the great news that we have successfully developed Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells.It is a kind of new product made by state-of-the-art technologies. Force Sensors & Load Cells has passed a series of international quality assurance system and product safety certification . Since our inception, Ningbo Santwell Import & Export Co., Ltd have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market. of the most leading brands in the future.
| Model Number: | LFM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | shear beam load cell | Rated Load: | 100t |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.05%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Force measurement equipment |
After a long period of exploration,Ningbo Santwell Import & Export Co., Ltd has launched High Technology Industrial Weighing Alloy Steel prices of load cell spoke load cell 30 Ton LFR. We pride ourselves on our personalized and efficient service. In order to be able to successfully meet the challenges,Ningbo Santwell Import & Export Co., Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.
| Model Number: | LFR | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | spoke style load cell | Rated Load: | 0.5/1/2/3/5/10/30/40/50/60 |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.02%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Car weighter orbit weighter batching weighing |
100~150T The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA120D which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120D can be used to measure load 150T capacity, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.1%F.S..
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
