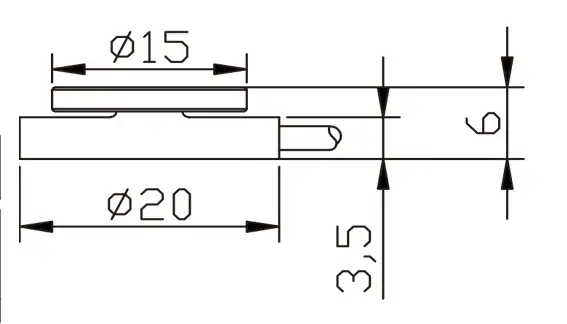

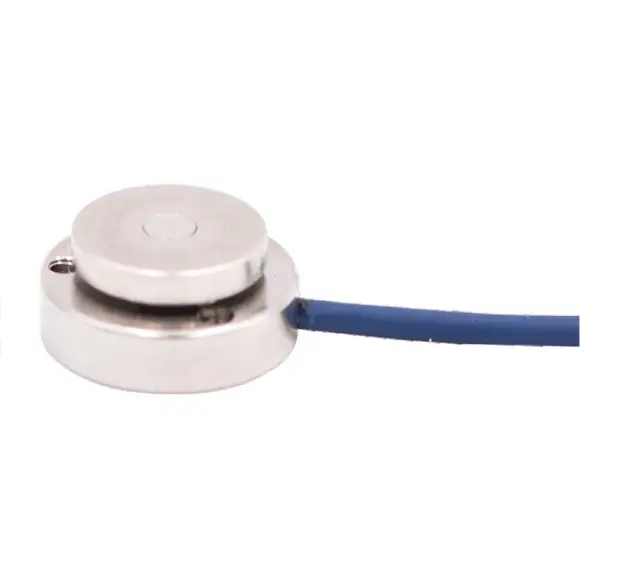

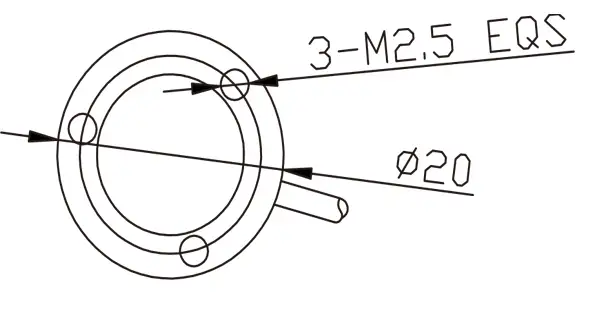

MA107B Miniature compression sensor ring shaped spoke style load cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Shipping: Support Sea freight · Land freight
Customization: Customized logo
After a long period of exploration,Ningbo Santwell Import & Export Co., Ltd has launched High Technology Industrial Weighing Alloy Steel prices of load cell spoke load cell 30 Ton LFR. We pride ourselves on our personalized and efficient service. In order to be able to successfully meet the challenges,Ningbo Santwell Import & Export Co., Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.
| Model Number: | LFR | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | spoke style load cell | Rated Load: | 0.5/1/2/3/5/10/30/40/50/60 |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.02%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Car weighter orbit weighter batching weighing |

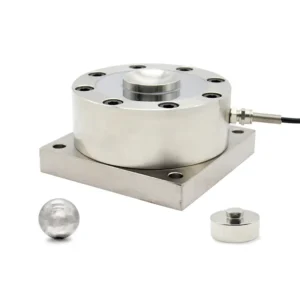

0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
Ningbo Santwell Import & Export Co., Ltd comes here today with the great news that we have successfully developed Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells.It is a kind of new product made by state-of-the-art technologies. Force Sensors & Load Cells has passed a series of international quality assurance system and product safety certification . Since our inception, Ningbo Santwell Import & Export Co., Ltd have been striving forward with the aim of being a leading company in the globe. We will focus more on improving our R&D capabilities and upgrading technologies in order to develop more creative products, therefore leading the industry trends and keeping us competitive in the market. of the most leading brands in the future.
| Model Number: | LFM | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | shear beam load cell | Rated Load: | 100t |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.05%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Force measurement equipment |
100~150T The Creep ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA120D which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120D can be used to measure load 150T capacity, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.1%F.S..
10-2000kg Stainless Steel Ring Force Sensor FA115 is a model of our brand FIBOS FA1-Series, Ring Force Sensor FA115 can be used to measure force 10kg,20kg,50kg,100kg,200kg,300kg, 500kg,1000kg and 2000kg capacity, its Creep(30min) ≤0.1%F.S., its Hysteresis and Repeatability both ≤0.2%F.S., and its Non-linearity ≤0.3%F.S..
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
3-5t Stainless Steel Ring Force Sensor FA167 is a model of our brand FIBOS FA1-Series, Ring Force Transducer FA167 can be used to measure force 3t and 5t capacity, its Zero Balance range is ±0.02mV/V, its Creep(30min) ≤0.05%F.S., its Non-linearity ≤0.2%F.S., its Hysteresis ≤0.3%F.S. and its Repeatability ≤0.1%F.S., its weight is 0.2kg.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 제공합니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 제공합니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 제공합니다.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 우수하며, IP66 등급의 보호 성능을 갖추고 있습니다.
