Santwell / CMB / 동적 레일 스케일 / 대형 호퍼 스케일 중량 센서 로드셀


Buyers have always reached the best quality providing and reliable 30t 40 Ton Load Cell Alloy Steel 10 Ton 50 Ton Compression Load Cells for truck scale CMB manufacturers. In today’s era,30t 40 Ton Load Cell Alloy Steel 10 Ton 50 Ton Compression Load Cells for truck scale CMB has proved its value in the field(s) of Force Sensors & Load Cells. Combining all good performance of adopted raw materials, our 30t 40 Ton Load Cell Alloy Steel 10 Ton 50 Ton Compression Load Cells for truck scale CMB has been proved to be applied to the field(s) of Force Sensors & Load Cells.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.

Model Number: CMB Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: SantWell
Usage: truck scale Theory: resistance

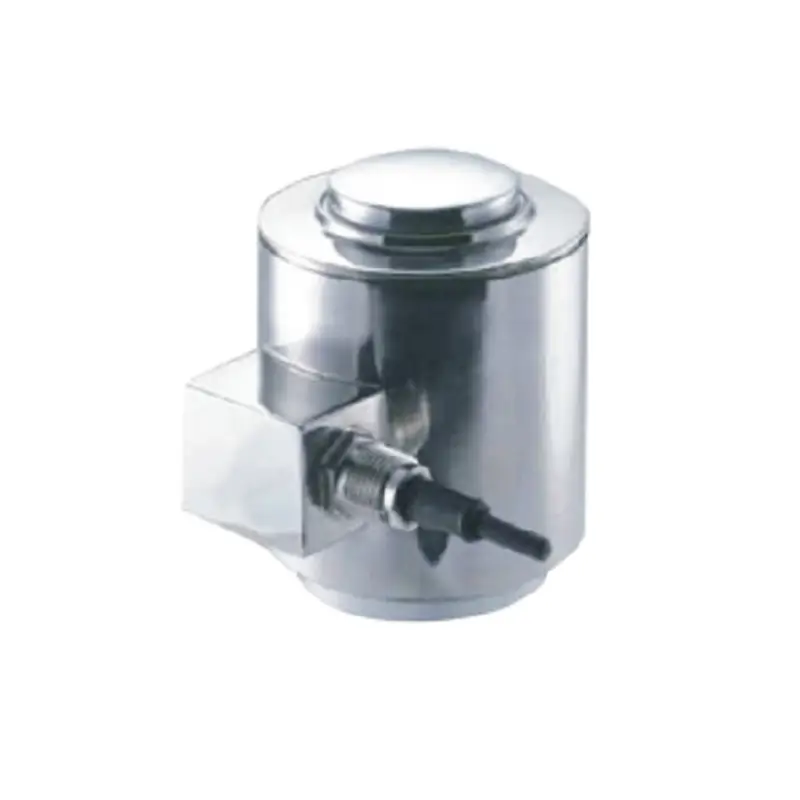

Output: 2.00mv/v Description: Column type load cell
Rated output: 10t,20t, 30t, 40t,50t Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~18V (AC or DC) Maximum Excitation Voltage: 24V(AC or DC)
Zero Balance: ±1%F.S Safe Over load: 150%F.S
Ultimate Overload: 200%F.S Working temperature: (-30~70)℃












Share it:

Our Force Sensors & Load Cells product is made of multiple raw materials that are chemically stable and physically excellent. As a kind of unique and important 30t 40 Ton Load Cell Alloy Steel 10 Ton 50 Ton Compression Load Cells for truck scale CMB, it has a variety of uses in many fields.

Specification: 10t, 20t, 30t, 40t, 50t

shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 10 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)



Technical Parameter

Rated Load 10t,20t,25t,30t,40t
Sensitivity 2.0000±0.002mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~18V(AC or DC)
Maximum Excitation Voltage 24V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 775±10Ω
Output Impedance 700±5Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Alloy Steel
Protection Class IP67&IP68
Citation GB/T7551-2008/OIML R60

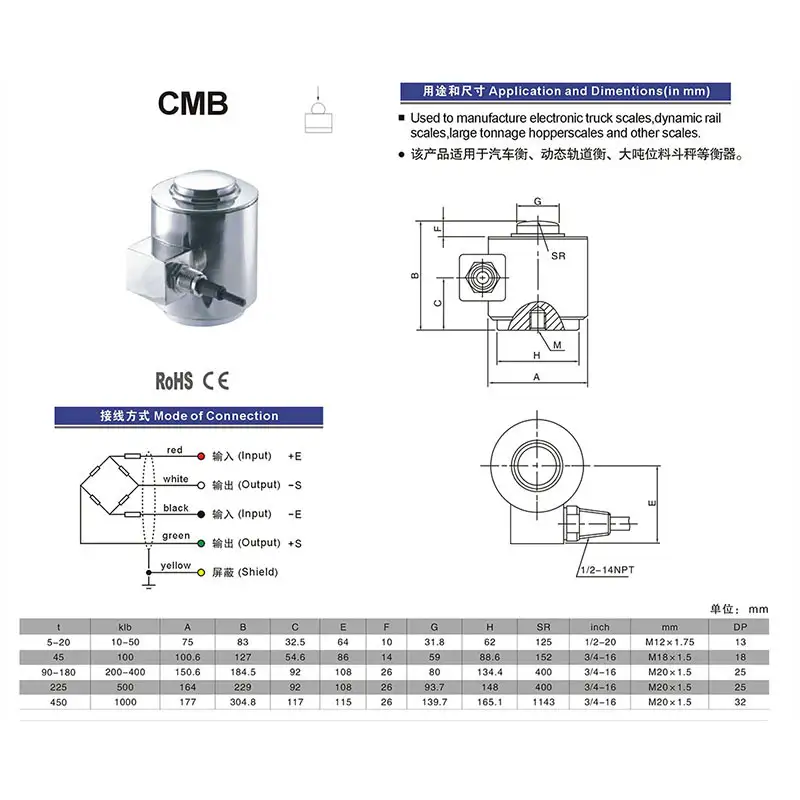

Mode of Connection Input+:Red Input-:Black Output+:Green Output-:White
