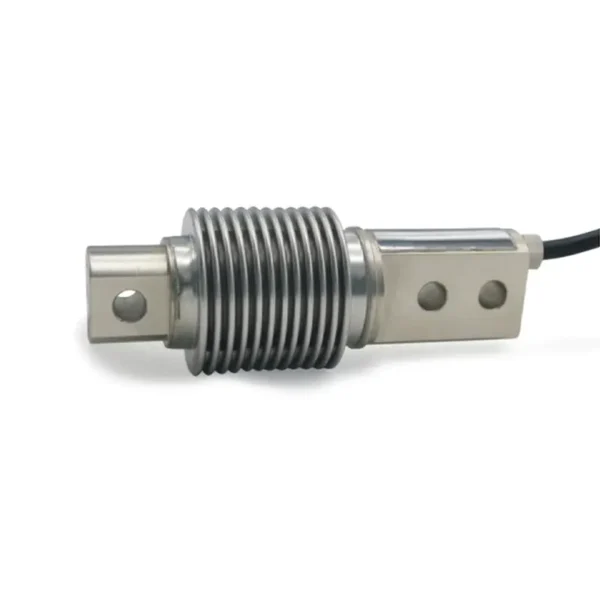

In order to discover more BBM IP68 Stainless Steel 24V Bending Beam Load Cell Silo Load Cell Weight Sensor performance, we have been upgrading the technologies used in our company.It has been proved that the product has a solid performance in the field(s) of Force Sensors & Load Cells.
Specification: 50kg, 100kg, 200kg, 300kg, 500kg
shipping: Support Sea freight · Land freight
Technical Parameter
|
Rated Load
|
kg | 50kg/100kg/200kg/300kg/500kg |
| Sensitivity |
mV/V
|
2.0000+0.002 |
| Total Error | %F.S | 0.1 |
| Creep(30 minutes) | %F.S | 0.01 |
| Recommended Excitation voltage | V | 5~18 (AC or DC) |
| Maximum Excitation Voltage | V | 24 (AC or DC) |
| Zero balance | %F.S | 1 |
| Input Impedance | Ω | 385+1 0 |
| Output Impedance | Ω | 350+5 |
| Insulation Impedance | MΩ |
≥5000
|
| Safe Overload | %F. S | 150 |
| Ultimate Overload | %F. S | 200 |
| Operating Temperature Range | °C | ( -30~+70 ) |
| Compensated Temperature Range | °C | ( -20~+60 ) |
| Temperature Effect On Load | °C | +0.02%F.S/10 |
| Temperature Effect On Zero | °C | +0.02%F.S/10 |
| Construction | Alloy Steel | |
| Protection Class | Ip68 | |
| Citation | GB/T7551-2008/OIML R60 |
