Rated Load: >300kg
Accuracy : 30000D
Type : weighing indicator, Platform scale indicator
Shipping: Support Sea freight · Land freight
Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
Model Number: | B08 | Power Supply: | -7mV ~ 12.8mV |
Display Type: | 6-digit 20mm LED or 25mm LCD with backlight | Display: | 6-digit 20mm LED or 25mm LCD with backlight |
Accuracy class: | OIML III | Input voltage: | -7mV ~ 12.8mV |
Resolving: | display15000, internal code 1000000 | Excitation voltage: | DC3.3V |
Functions: | accumulate, hold, animal weighing, check, sort |
Rated Load: >300kg
Accuracy : 30000D
Type : weighing indicator, Platform scale indicator
Shipping: Support Sea freight · Land freight
Customized support: | OEM | Place of Origin: | Zhejiang, China |
Brand Name: | Santwell | Model Number: | LP7510 |
Power Supply: | -5mV ~ 20mV | Display Type: | 6-digit 20mm LED or 25mm LCD with backlight |
Display: | LED or LCD with backlight | Accuracy class: | OIML III |
Input voltage: | -5mV ~ 20mV | Excitation voltage: | DC5V |
Power supply: | AC110/220V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery | Material: | Carbon steel / Stainless Steel / Stainless Steel Waterproof |
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
Customized support: | OEM, ODM | Place of Origin: | Zhejiang, China |

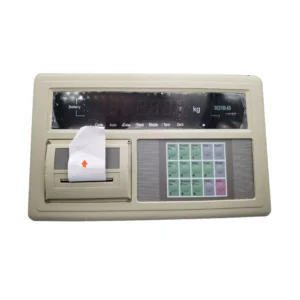

Brand Name: | Santwell | Model Number: | XK3190-A9+ |
Power Supply: | DC8V | Display Type: | 7 bits LED ,7 status indications |
Model: | A9/ A9P | Input signal range: | 1mV~24mV |
Load cell Excitation: | Dc 8V | Max. load cell connection: | 8 at 350 ohm |
Display: | 7 bits LED ,7 status indications | Standard interface: | RS232C , Scoreboard at 20mA current loop Parallel printer |
Customized support: | OEM, ODM | Place of Origin: | Zhejiang, China |

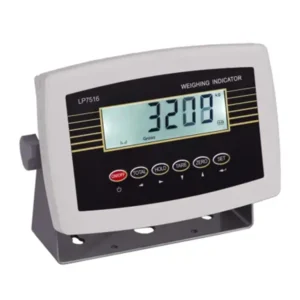

Brand Name: | Santwell | Model Number: | LP7516 |
Power Supply: | -7mV ~ 12.8mV | Display Type: | 6-digit 20mm LED or 25mm LCD with backlight |
Display: | 6-digit 20mm LED or 25mm LCD with backlight | Accuracy class: | OIML III |
Input voltage: | -7mV ~ 12.8mV | Resolving: | display15000, internal code 1000000 |
Excitation voltage: | DC3.3V | Functions: | accumulate, hold, animal weighing, check, sort |
Customized support: | OEM | Place of Origin: | Zhejiang, China |
Brand Name: | Santwell | Model Number: | XK315A1GB-3 |
Power Supply: | 6V 2.8AH | Display Type: | 6-digit 38mm red LED |
Housing: | Stainless steel | Display: | 6-digit 20.2mm green LED |
Dimensions: | 260*222*161mm | Weight: | 2.2kg |
Inside battery: | 6V 2.8AH | Applications: | Electronic platform scale, weighing scale, etc. |
Function: | With RS232,WIFI,USB,Warning light | Applies to:: | Mechanical scale |
Number of connectable sensors: | 4*350Ω,8*700Ω | Model: | XK315A1GB-3 |
Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
Model Number: | LP7515 | Power Supply: | -3mV ~ 12mV |
Display Type: | 6-digit 20mm LED with backlight | Accuracy class: | OIML III |
Resolving: | display50000, internal code 2000000 | Excitation voltage: | DC3.3 V |
Power supply: | 3 AA-size batteries,or DC6V |
Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing
Customized support: | OEM | Place of Origin: | Zhejiang, China |
Brand Name: | Santwell | Model Number: | LP7553 |
Power Supply: | -6mV ~ 19.5mV | Display Type: | 6-digit 50mm LED or LCD with backlight |
Accuracy class: | OIML III | Resolving: | display50000, internal code 2000000 |
Excitation voltage: | DC3.3 V | Power supply: | AC110/220v 50/60Hz |
Customized support: | OEM | Place of Origin: | Zhejiang, China |
Brand Name: | Santwell | Model Number: | LP7512 |
Power Supply: | -10mV ~ 19.5mV | Display Type: | 6-digit 20mm LED or 25mm LCD with backlight |
Display: | 6-digit 20mm LED or 25mm LCD with backlight | Accuracy class: | OIML III |
Input voltage: | -10mV ~ 19.5mV | Resolving: | display50000, internal code 2000000 |
Excitation voltage: | DC5V | Power supply: | AC110/240V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery |
Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
Model Number: | LP7512 | Power Supply: | -10mV ~ 19.5mV |
Display Type: | 6-digit 20mm LED or 25mm LCD with backlight | Display: | 6-digit 20mm LED or 25mm LCD with backlight |
Accuracy class: | OIML III | Input voltage: | -10mV ~ 19.5mV |
Resolving: | display50000, internal code 2000000 | Excitation voltage: | DC5V |
Power supply: | AC110/240V 50/60Hz DC9V or built-in 6V/4Ah lead acid battery |
Customized support: | OEM | Place of Origin: | Zhejiang, China |

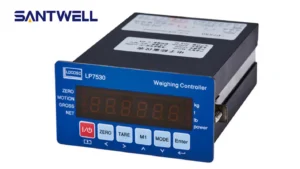

Brand Name: | Santwell | Model Number: | LP7530 |
Power Supply: | -3mV ~ 30mV | Display Type: | 6-digit 10mm LED display |
Accuracy class: | OIML III | Input voltage: | -3mV ~ 30mV |
Resolving: | display30000, internal code 2000000 | Excitation voltage: | DC5V |
Power supply: | AC220V 50/60Hz DC24V |
Features
* Compatible with all functions of model XK3190-A9+
* High precision A/D conversion with readability 1/30000
* Non-linearity correction, calibration tolerance correction
* Auto change division among 3 different weighing ranges set up by user
* Password management and time power off function
* Set up print function for auto/manual, no condition/ under condition, daily/ stored statistics report printing
* Standard RS232 communication interface with selectable baud rate and communication method (RS422/RS485 optional)
* Standard scoreboard interface with current loop(20mA)method and standard parallel printer interface
* Able to print any parameter of indicator for saving and referring.
* Hardware detection and voltage of load cell output displaying function
