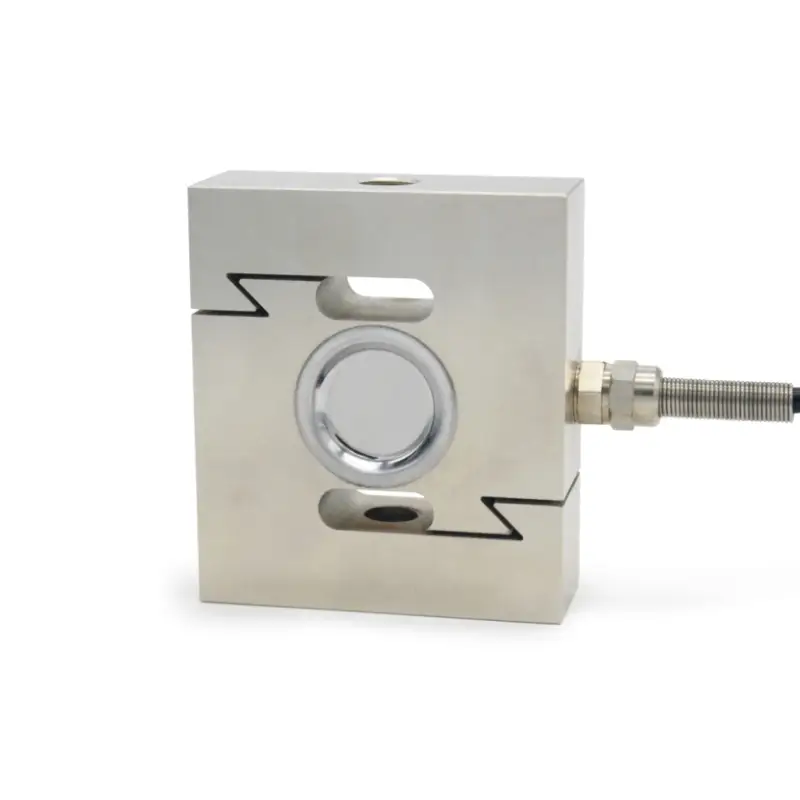

Web Tension Load Cell Scales 15 ton to 30 ton s type load cell Weighing Sensor for Electronic Platform AST05 Integrate advanced technology of the enterprise, excellent performance, and the sales volume has been high, helping the enterprise to become the industry leader.Moreover,to take care of different needs, product customization is provided.
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
| Rated Load | T | 0.5/1/2/3/5/7.5/10/15/20 |
|
Sensitivity
|
mV/V |
2.0000±0.002
|
| Total Error | %F.S | ±0.02 |
| Creep(30minutes) | %F.S | ±0.02 |
| Recommended Excitation Voltage | V |
5 ~12 (AC or DC)
|
| Maximum Excitation Voltage | V |
15 (AC or DC)
|
| Zero Balance | %F.S | ±1 |
| Input Impedance | Ω |
380±10
|
| Output Impedance | Ω |
350±5
|
| Insulation Impedance | MΩ | ≥5000 |
| Safe Overload | %F.S |
150
|
| Ultimate Overload | %F.S | 200 |
| Operating Temperature Range | ℃ |
(-30~+70)
|
| Compensated Temperature Range |
℃
|
(-20~+60) |
| Temperature Effect On Load | ℃ |
±0.02%F.S/10
|
| Temperature Effect On Zero | ℃ | ±0.02%F.S/10 |
| Construction | Alloy steel | |
| Protection Class |
IP67
|
|
| Citation | GB/T7551-2008/OIML R60 | |

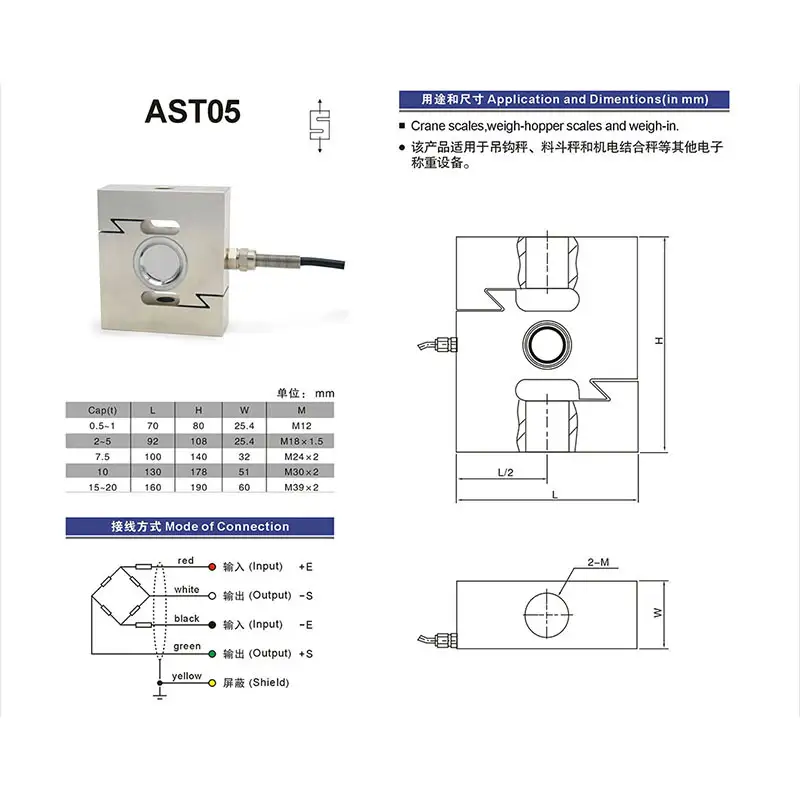

| Mode of Connection |
Input+E:Red Input-E:Black Output+S:Green Output-S:White
|
