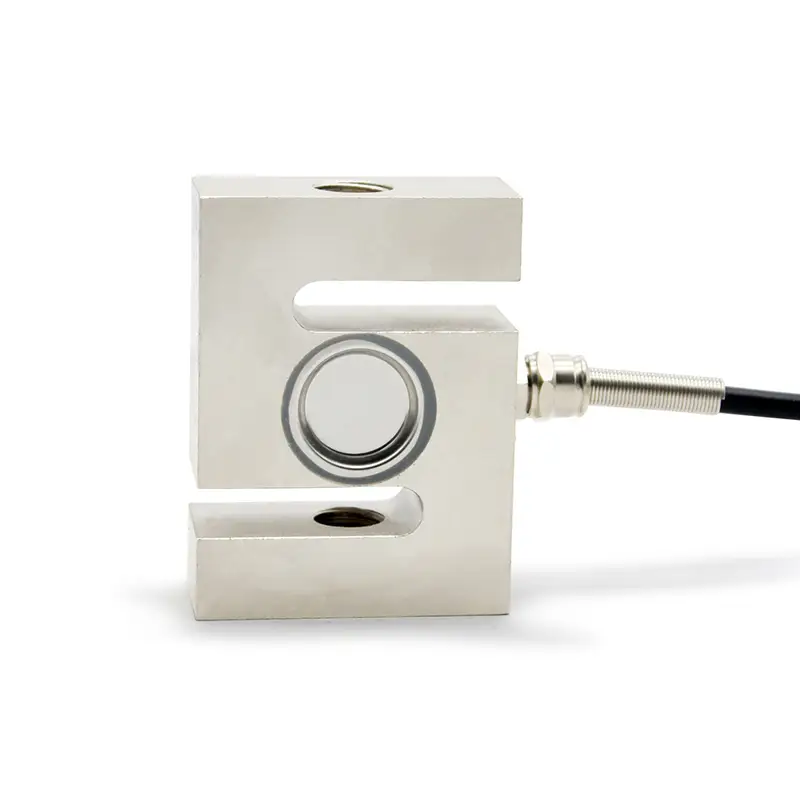

20000kg S-Type load Cell Sun Cells Torsion Load Cell 2 Ton For Hook Scales AST04 Relying on the excellent quality and pain-solving functions, it is loved and communicated by customers, which not only allows the company’s product brand to gain great market exposure, but also makes the company’s market sales and market share explode Style growth.What’s more It is widely applied in such fields as Force Sensors & Load Cells.
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)
Technical Parameter
| Rated Load | 10t |
| Sensitivity | 2.0000±0.002mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~12V(AC or DC) |
| Maximum Excitation Voltage | 15V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±10Ω |
| Output Impedance | 350±5Ω |
| Insulation Impedance | ≥5000MΩ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Operating Temperature Range | (-30~+70)℃ |
| Compensated Temperature Range | (-20~+60)℃ |
| Temperature Effect On Load | ±0.02%F.S/10℃ |
| Temperature Effect On Zero | ±0.02%F.S/10℃ |
| Construction | Alloy Steel |
| Protection Class | IP67 |
| Citation | GB/T7551-2008/OIML R60 |
| Mode of Connection | Input+E:Red Input-E:Black Output+S:Green Output-S:White |
