Specification: 10t
shipping: Support Sea freight · Land freight
Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 2000 Pieces),Graphic customization (Min. Order: 2000 Pieces)
Technical Parameter
| Rated Load | 10t |
| Sensitivity | 2.0000±0.002mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~12V(AC or DC) |
| Maximum Excitation Voltage | 15V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±10Ω |
| Output Impedance | 350±5Ω |
| Insulation Impedance | ≥5000MΩ |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Operating Temperature Range | (-30~+70)℃ |
| Compensated Temperature Range | (-20~+60)℃ |
| Temperature Effect On Load | ±0.02%F.S/10℃ |
| Temperature Effect On Zero | ±0.02%F.S/10℃ |
| Construction | Alloy Steel |
| Protection Class | IP67 |
| Citation | GB/T7551-2008/OIML R60 |

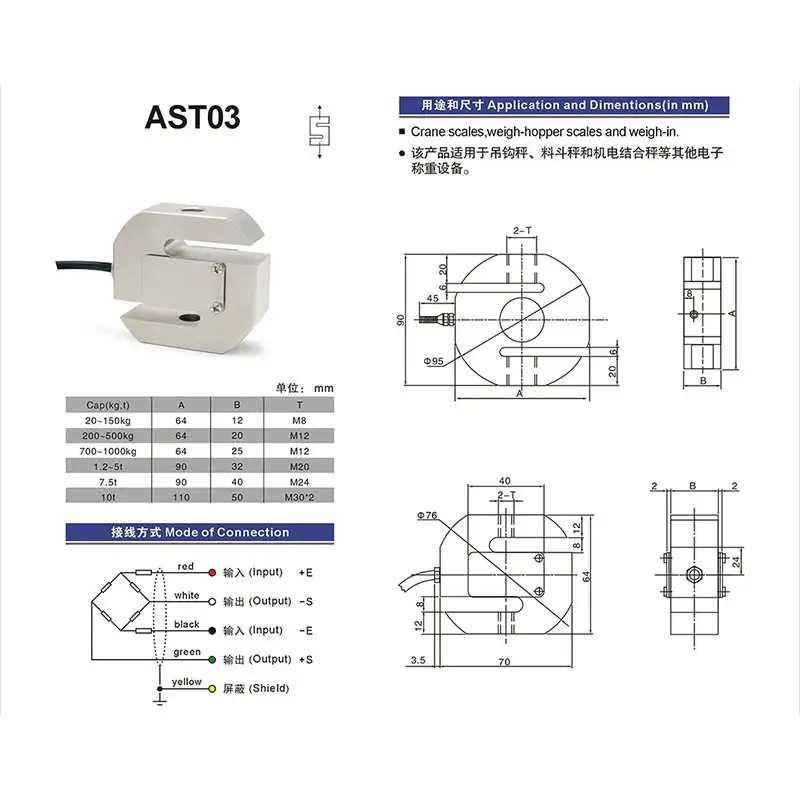

| Mode of Connection | Input+E:Red Input-E:Black Output+S:Green Output-S:White |
