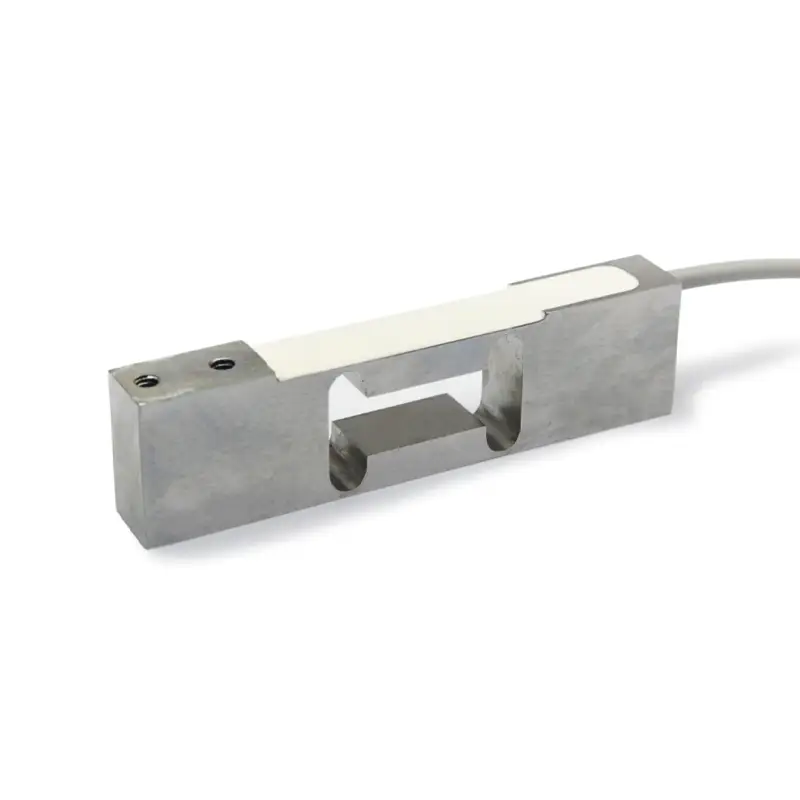

Santwell / A623a / Platform Electronic Scale Sensor Load Cell

Having absorbed the best and the brightest to join us, Ningbo Santwell Import & Export Co., Ltd finds it easier and more efficient to develop products on a regular basis.Low Cost Weight Sensor HBM Single Point Load Cell 50 kg Impact Platform Scale Load Cell 400kg A623a is the newest result combining all the efforts and wisdom of our employees. Low Cost Weight Sensor HBM Single Point Load Cell 50 kg Impact Platform Scale Load Cell 400kg A623a with reasonable price, excellent performance and excellent quality, it has won wide recognition from customers. It is the support of our customers that propels us to continue to move forward. Ningbo Santwell Import & Export Co., Ltd will keep providing high-quality products and professional services as always for customers. In addition, talents are the core pillar of a company. We will organize regular training on our staff to improve their skills.

Model Number: A623a Place of Origin: Zhejiang, China
Brand Name: Santwell Usage: PRESSURE SENSOR
Theory: Resistance Sensor Output: Analog SENSOR
Rated Load: 50kg~1000kg Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S











Add to Wishlist
Share it:

A623a is a kind of product that combines both functions and aesthetics. It is designed to be a reasonable structure and exquisite appearance, excellent enough to catch people’s eyes. Made of raw materials that have passed the quality tests, it is special with the excellent performance.

shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)



Technical Parameter

Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~12V(AC or DC)
Maximum Excitation Voltage 15V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 380±5Ω
Output Impedance 350±2Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Alloy Steel/Aluminium
Protection Class IP66
Citation GB/T7551-2008/OIML R60

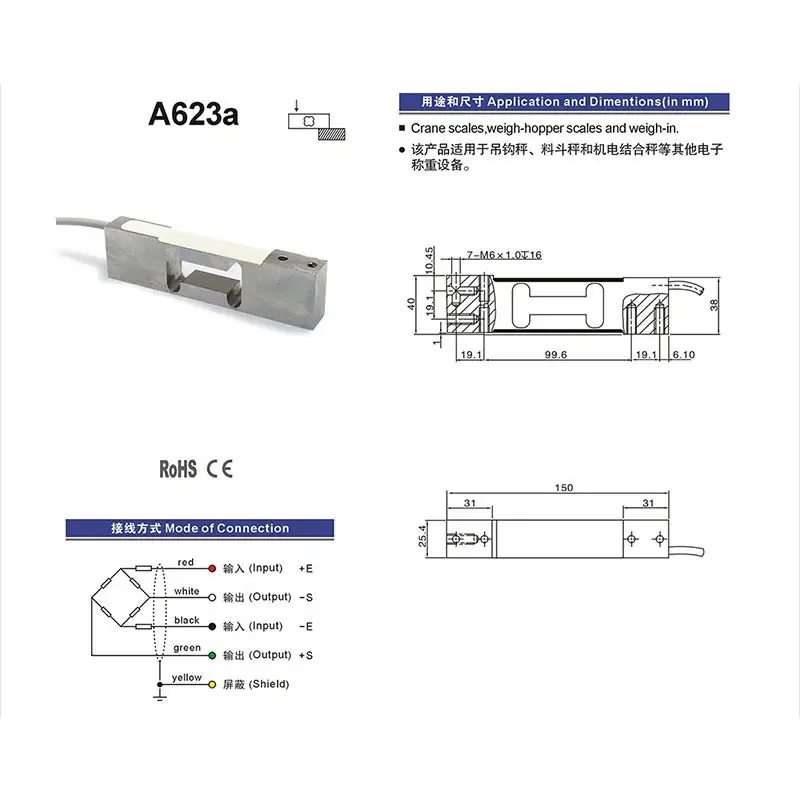

Mode of Connection Input+E:Red Input-E:Black

Output+S:Green Output-S:White
