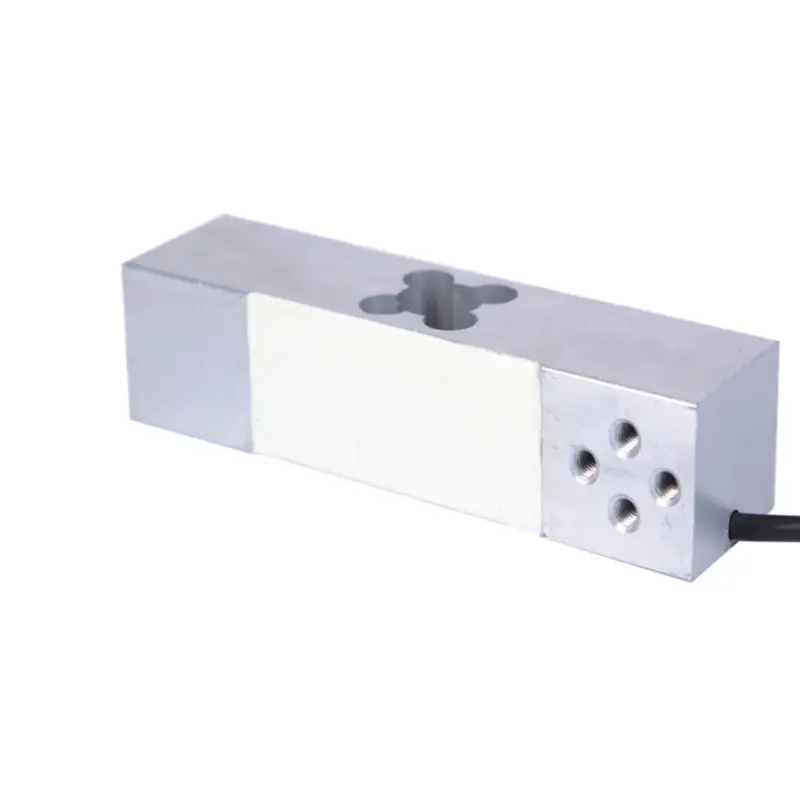

Santwell / A638 / 플랫폼 전자식 저울 센서 로드셀


Thanks to the efforts of our staff,Ningbo Santwell Import & Export Co., Ltd can launch our Alloy Steel load cell 300kg 500kg prices of load cell Indicator For Platform Scales A638 release meeting as scheduled. Our Force Sensors & Load Cells is supplied with a competitive price . Since launched, Alloy Steel load cell 300kg 500kg prices of load cell Indicator For Platform Scales A638 has been receiving mounting acclaim from customers. In the future, Ningbo Santwell Import & Export Co., Ltd will continue to attach importance to the cultivation of talents, continuously improve the staff’s business level and professional skills, strengthen technological innovation, and continuously enhance the comprehensive competitiveness of the company, in order to achieve’building a century-old evergreen enterprise and creating a well-known international brand’ Work hard for this grand goal.

Model Number: A638 Type: Load Cell
Place of Origin: Zhejiang, China Brand Name: Santwell
Rated Load: 50kg~1000kg Sensitivity: 2.0000±0.002mV/V
Total Error: ±0.02%F.S Creep(30minutes): ±0.02%F.S
Recommended Excitation Voltage: 5V~12V(AC or DC) Maximum Excitation Voltage: 15V(AC or DC)
Zero Balance: ±1%F.S Insulation Impedance: ≥5000MΩ
Safe Overload: 150%F.S Utimate Overload: 200%F.S












Share it:

Innovation is a factor in the long-term quality assurance of Alloy Steel load cell 300kg 500kg prices of load cell Indicator For Platform Scales A638.The measured data indicates that products meets the market requirements.In additon,we can customize size, shape or color to suit the specific need of our customers.

shipping: Support Sea freight · Land freight

Customization: Customized logo (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces)

Technical Parameter

Rated Load 50kg-1000kg
Sensitivity 2.0000±0.001mV/V
Total Error ±0.02%F.S
Creep(30minutes) ±0.02%F.S
Recommended Excitation Voltage 5V~12V(AC or DC)
Maximum Excitation Voltage 15V(AC or DC)
Zero Balance ±1%F.S
Input Impedance 380±5Ω
Output Impedance 350±2Ω
Insulation Impedance ≥5000MΩ
Safe Overload 150%F.S
Ultimate Overload 200%F.S
Operating Temperature Range (-30~+70)℃
Compensated Temperature Range (-20~+60)℃
Temperature Effect On Load ±0.02%F.S/10℃
Temperature Effect On Zero ±0.02%F.S/10℃
Construction Alloy Steel/Aluminium
Protection Class IP66
Citation GB/T7551-2008/OIML R60
Mode of Connection Input+E:Red
Input-E:Black
Output+S:Green
Output-S:White
