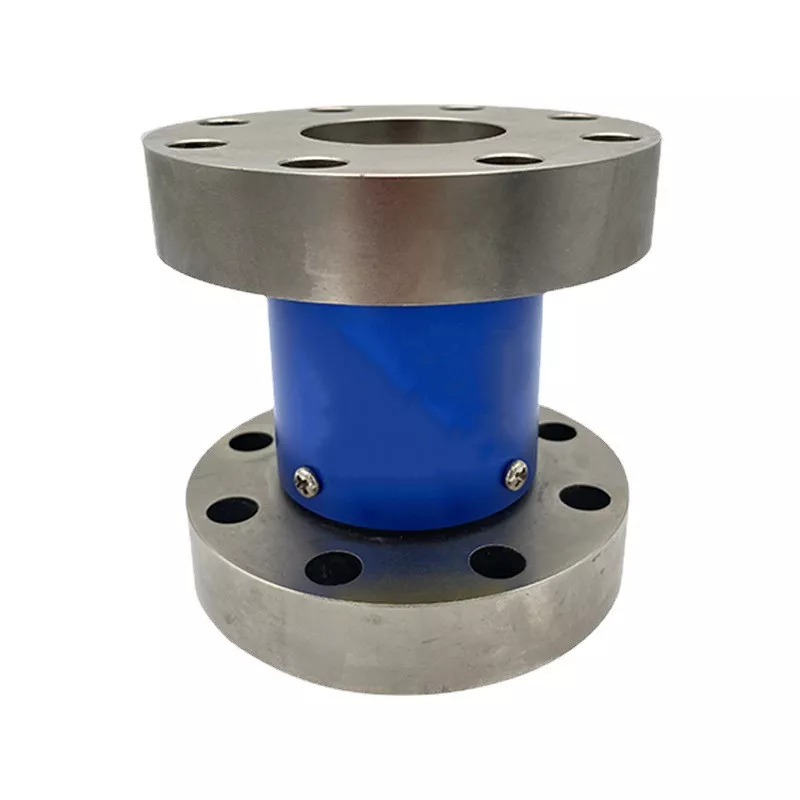

LCT321 Static Torque Sensor Clibration Reaction Static Torque Sensor Mininature Static Torque Sensor

Product Description

圣邦网站2详情页-1000_01 - 副本


Product Introduction:

◎Material: stainless steel or alloy steel;

◎Measuring range: 0-50knm;

◎Accuracy 0.1 / 0.3% FS;

◎Resistance strain is an integrated product composed of sensitive elements and integrated circuits;

◎High precision, stable and reliable performance;

◎Low and medium range torque measurement, easy to install and use;

◎Static torque measurement, both ends are connected by flanges;

◎Widely used in static torque measurement;

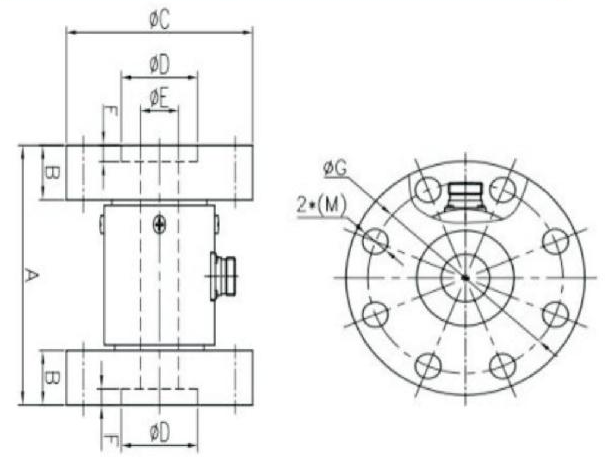

Dimension:


Capacity(Nm) A B φC φD φE F φG M
0-100 85 10 59 22 12 5 49 4-φ6.5
150-1000 95 20 98 40 20 6 80 8-φ10.5
1500-5000 95 20 125 50 40 6 105 8-φ12.5
6000-10000 160 30 190 80 30 6 160 8-φ19
15000-50000 220 45 308 130 80 5 250 12-φ26

Technical Parameter：

Parameter Numerical Value Parameter Numerical Value
Cap. 0~50KNm Input resistance 750±10Ω
Material Alloy/stainless steel Output resistance 750±5Ω
Output sensitivity 1-1.5mV/V Insulation resistance ≥5000MΩ/100VDC
Zero output ±1%FS Service voltage 10V
Nonlinear ±0.1,±0.3%FS Maximum voltage 12V
Lagging ≤±0.05%FS Temp. compensation range -10~+60℃
Repeatability ≤±0.05%FS Working temp. -20~+65℃
Creep (30min) ≤±0.03%FS Safe Overload 150%
Sensitivity temp. drift ≤±0.03%FS/10℃ Ultimate overload 200%
Zero temp. drift ≤±0.03%FS/10℃ Cable size φ5.2×3m



Product name LCT321 Static Torque Sensor Clibration Reaction Static Torque Sensor Mininature Static Torque Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
