Product Description:

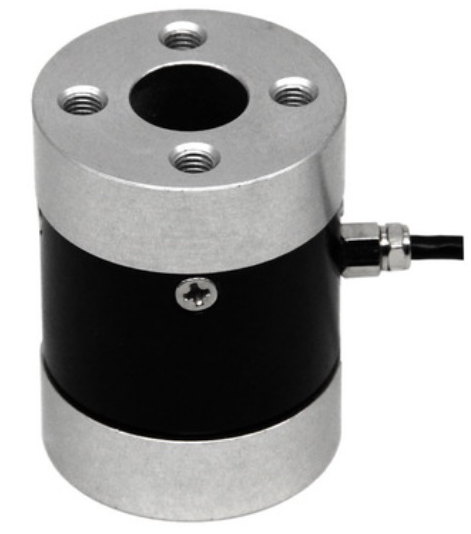

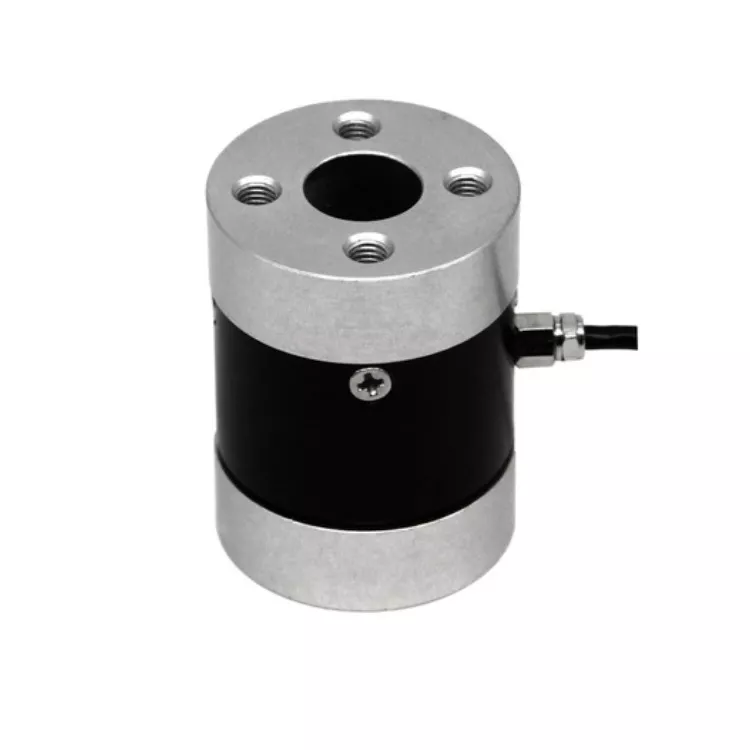

Small size, flange structure, easy installation. Stainless steel or aluminum alloy, high precision and good stability. It is used in static torque testing equipment, torque wrench and other torque testing equipment.
Dimension:
◎The overall dimensions can be designed and customized according to customer requirements.。
Technical Parameter:
Product description:
Capacity ：0-0.5-150N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
Product description:
Capacity ：0-10N.m
Material: aluminum alloy
Type: torque type
Defend grade: IP65.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: Aluminum alloy
Features: Low height
Applicable to measure and control of the static, non-continuous rotation torque force value
The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications.
Nickel plated alloy steel
Suitable for measuring the torque of static and discontinuous rotation.
Product description:Features:
Capacity ： 0-5~1000N.m
Material: alloy steel
Type: torque type
Defend grade: IP67.
High accuracy, high stability, anti-interference
Application: suitable for static and non-continuous rotation torque force measurement.
It is suitable for precision control of robot arms, grinding and polishing of curved surfaces, precise carving of machining centers, and precision testing of medical equipment.
Material: stainless steel Aluminum alloy
Features: High precision Strong anti-eccentricity Customizable
Flange to square torque sensor ZMNJF is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. ZMNJF can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 500Nm. The measuring range and flange/square size can be customized to meet customer’s requirements.
Nickel plated alloy steel
Product description:
Capacity ：5-50~5000N.m
Defend grade: IP67.
Type: torque type
1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、Static torque sensors can be used in various industrial fields, such as electric screwdrivers, torque wrenches, wind turbines and so on.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.
