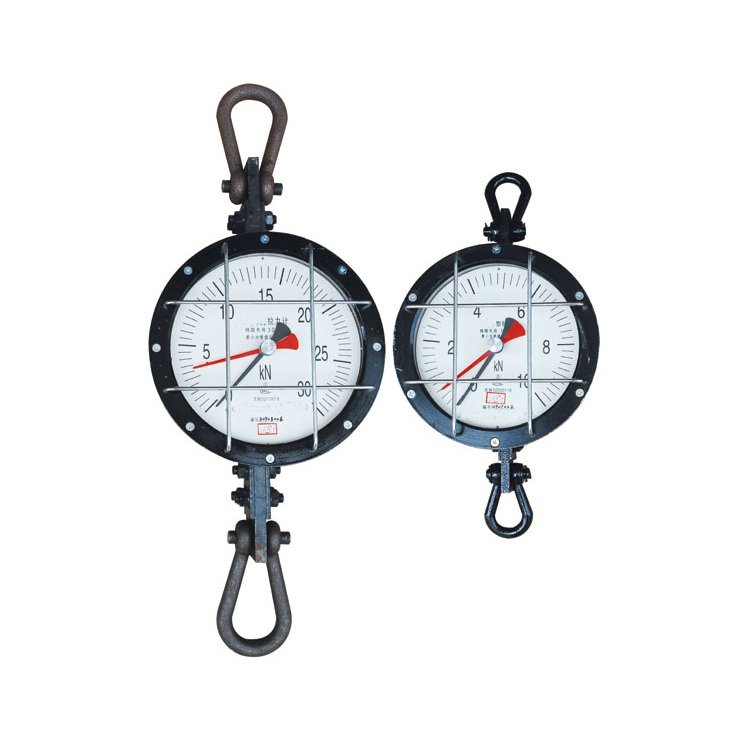

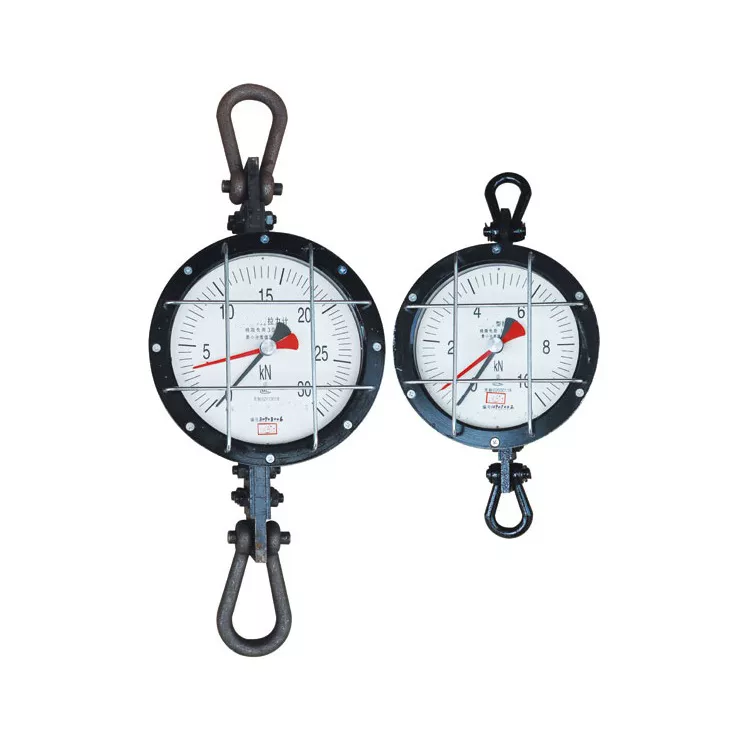

LCSW99 Mechanical Link 0-500KN for Pull Measurement of Auto, Train, Boat And Other Vehicles, Machines And Rope
Application:
MLT02 series tensionmeter is used for pull measurement of auto, train, boat and other vehicles, machines and rope. The measurement range is from 1/10 range to the upper limit;
Dimension:
Accuracy and allowance:
Allowance for level one accuracy is±1% of the full range. Allowance for level two accuracy is ±2% of the full range;
Using Rules:
◎Before using: the active pointer (black pointer) shall be at the zero. Adjusting method: rotate the lower adjusting knob under the meter housing. The passive pointer ( red pointer) shall coincide with the active pointer. Adjusting method: rotate the reset knob in the glass center.
◎Do not exceed the upper limit of range to avoid damage.
◎Do not disassemble the internal mechanism, unless the reading shall be changed.
◎Avoid impacting of dropping during using. Load stably and slowly. Store it in dry condition free of humidity.
◎The tensionmeter shall be re-examined after one year’s using;

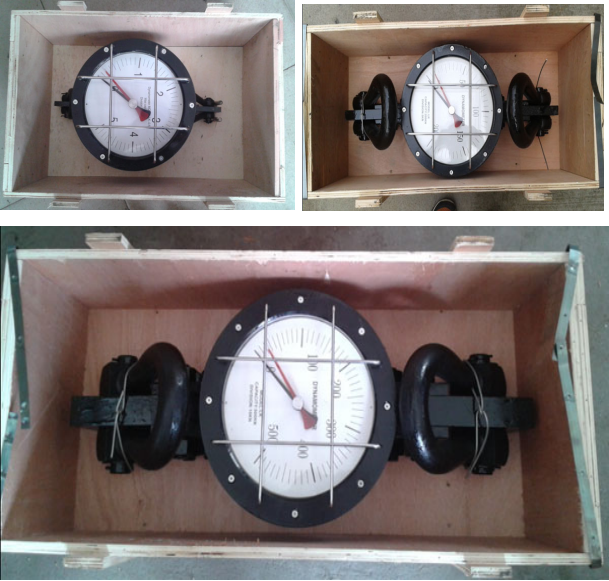

Product Detail:
