Product Description:

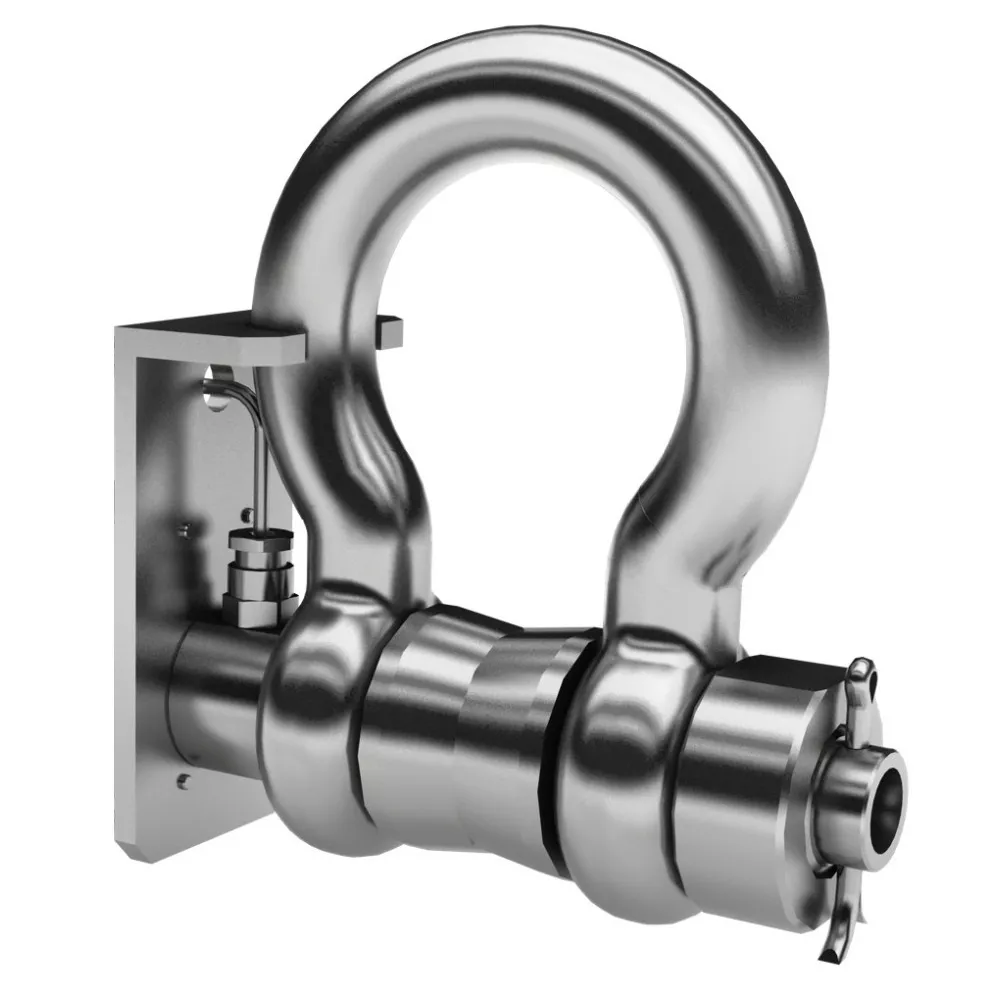

The cable Shackle load cell is a High Strength cable Load Cell manufactured with a Load Pin. The cable Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection..

◎Ranges from 3 to 500 Ton

◎Integrated 2-wire signal amplifier, 4-20mA

◎Robust design in stainless steel

◎Designed for Harsh Environments

◎Designed to be compatible with existing standards

◎Easy to install and maintain

The electronics are molded and encapsulated inside the load cell, proven to be the best solution for EMC, potential leakage and long lifetime performance.

Specifications:

Dimension:

Note: All dimensions are subject to change according actual use as a standard.

Applications:

◎Cable recovery/repair

◎Vehicle lifting

◎Wave generator mooring/tethering

◎Offshore wind cable installations

◎Bollard Pull and Certification

◎Cable Laying

Package:
