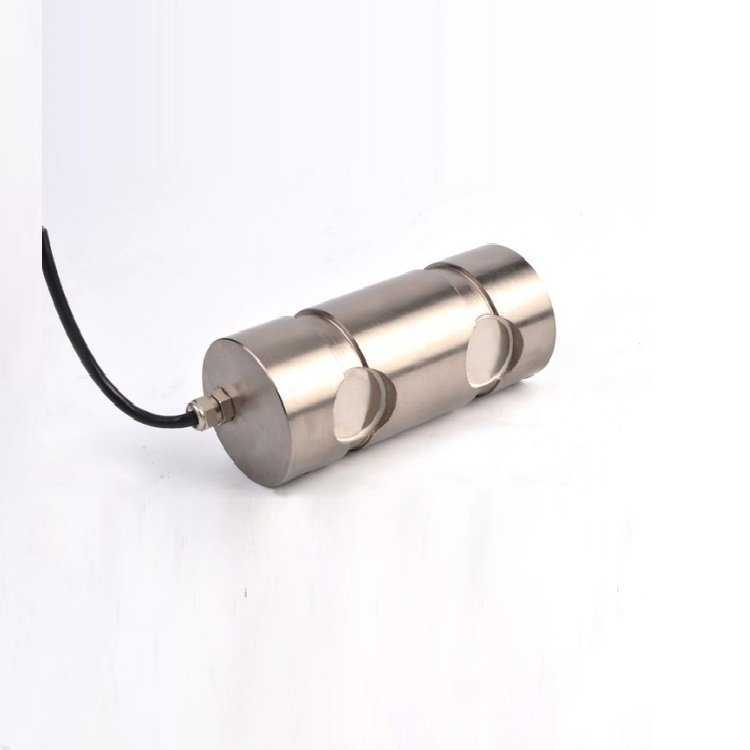

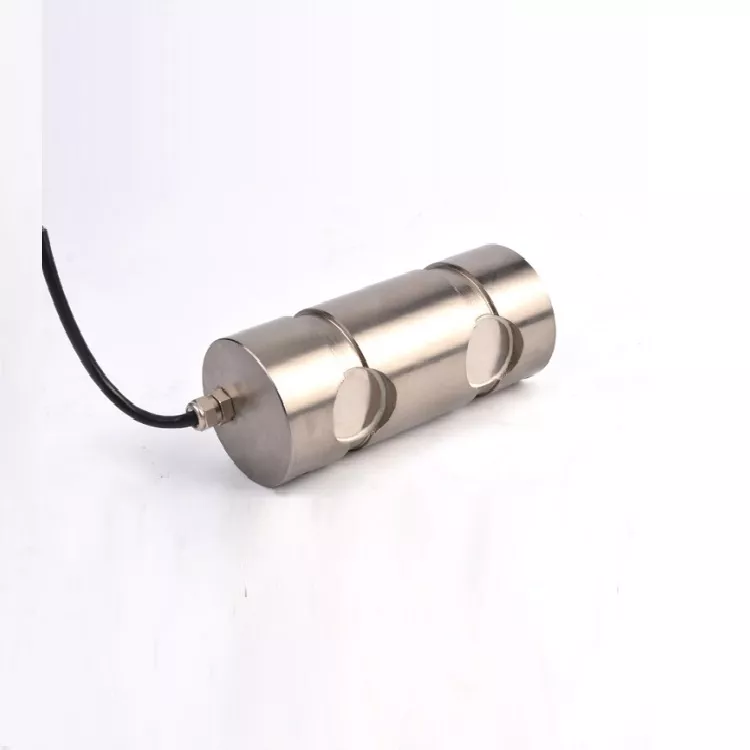

LC732 Load Pins Suppliers Custom Load Monitoring Solution Load Pins

Product Description

LC732

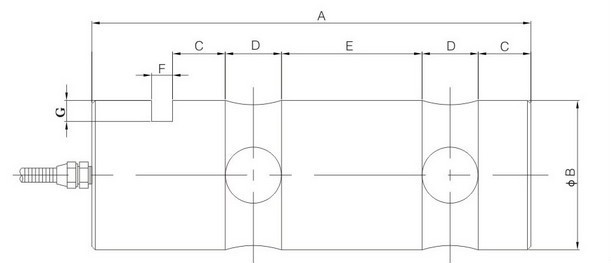

Dimensions：Unit:mm

LC732



Capacity A B C D E F G
2ton~5ton 120 40 15 15 25 6 6
10ton 160 55 20 22 40 8 8
15~20ton 200 65 25 27 50 10 8
30~40ton 250 85 30 32 80 12 10

 Technical Parameter:

Rated Load: 2/5/10/20/40/70t Operating Temp.Range: -30~+70℃
Sensitivity: (1.0±0.1%) m V/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.5% F.S Ultimate Over Load: 400%F.S
Creep Error(30min): ±0.05% F.S Recommend Excitation Vol.: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation Vol.: 15V DC
Temp. Effect On Zero: ±0.05% F.S/10℃ Sealing Class: IP67
Temp. Effect On Span: ±0.05% F.S/10℃ Element Material: Alloy / Stainless Steel
Input Resistance: 400Ω±20Ω Cable: Length=L:5m~16m
Output Resistance: 350Ω±3Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Green(Output+),

Black(Input-),White(Output-)



Product name LC732 Load Pins Suppliers Custom Load Monitoring Solution Load Pins
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
