SAINTBOND / LC5204 Button Force Transducers Micro Force Sensor Load Cell

Add to Wishlist
Share it:

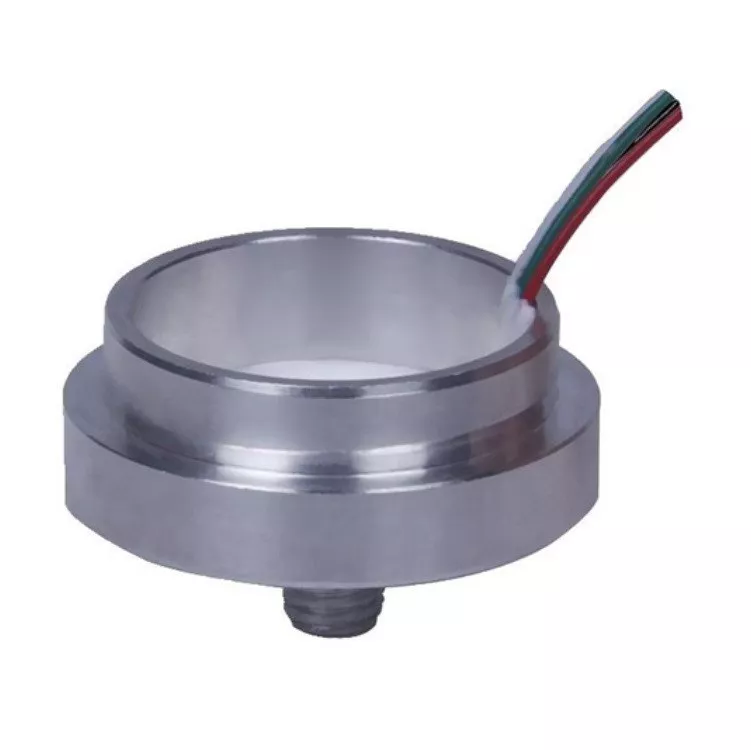

LC5204 Button Force Transducers Micro Force Sensor Load Cell

Product Description

LC5204

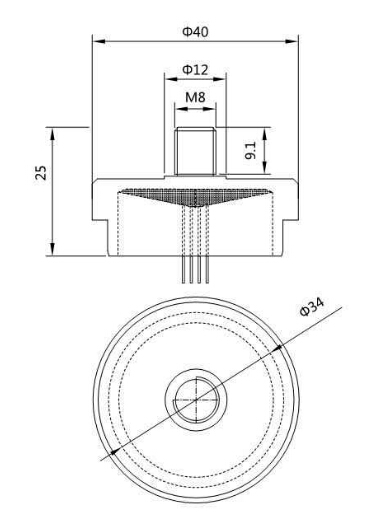

Dimension:

LC5204

Description:

SAINTBOND Miniature compression load cells are made of SAINTBOND’s advanced strain gauge technology. These load cells are designed for applications in a space limited area.

The capacities of LC5204 start from 20kg to 100kg.The measuring accuracy is 0.1%R.O.(R.O.= Rated Output).) Manufactured from high quality aluminum alloy of aviation standard. MiNi100 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.



Features:

◎Miniature Compression load cells

◎Capacity:20kg,…,100kg

◎Accuracy:0.1%R.O.

◎Super micro structure

◎Aluminum construction with surface anodized

◎Environment protection class:IP65



Applications:

◎Flat mounting weighing systems,

◎Force measuring in a narrow space.



Technical Data:

Model LC5204 Excitation,Recommended ≤6VDC
Rated Capacity 100/200/300/500/1000kg Operating Temp.Range -10－+40℃
Accuracy Class X Safe Overload 120%R.C.
Rated Output 2.0±0.5%mV/V Insulation Resistance ≥2000MΩ(50VDC)
Zero Balance ±0.1mV/V Cable,Length ø3mm×2m
Input Resistance 350±10Ω Hysteresis Error ±0.05%R.O.
Output Resistance 350±10Ω Creep in 2 Min. ±0.05%R.O.
 Linearlty Error ±0.05%R.O. Temp.Effect on Output ±0.05%R.O./10℃
Repeatability Error ±0.05%R.O. Temp.Effect on Zero ±0.05%R.O./10℃



Product name LC5204 Button Force Transducers Micro Force Sensor Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
