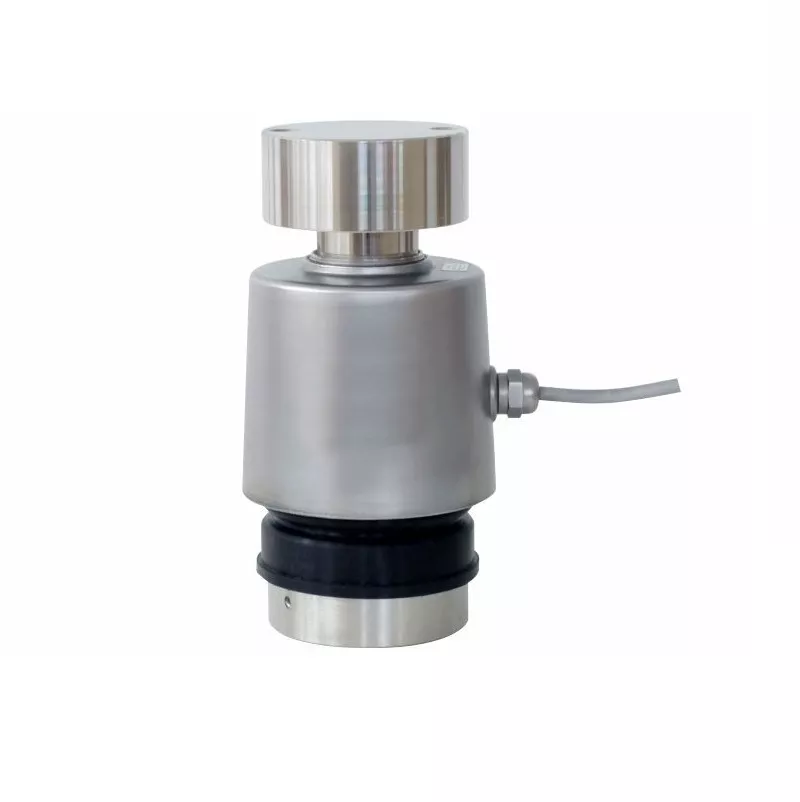

LC491 Micro Load Cell Indicator Column Compression Load Cells
Application:
●Truck scale;
●Tank scale;
●Axle weighing scale;
●Railway scale;

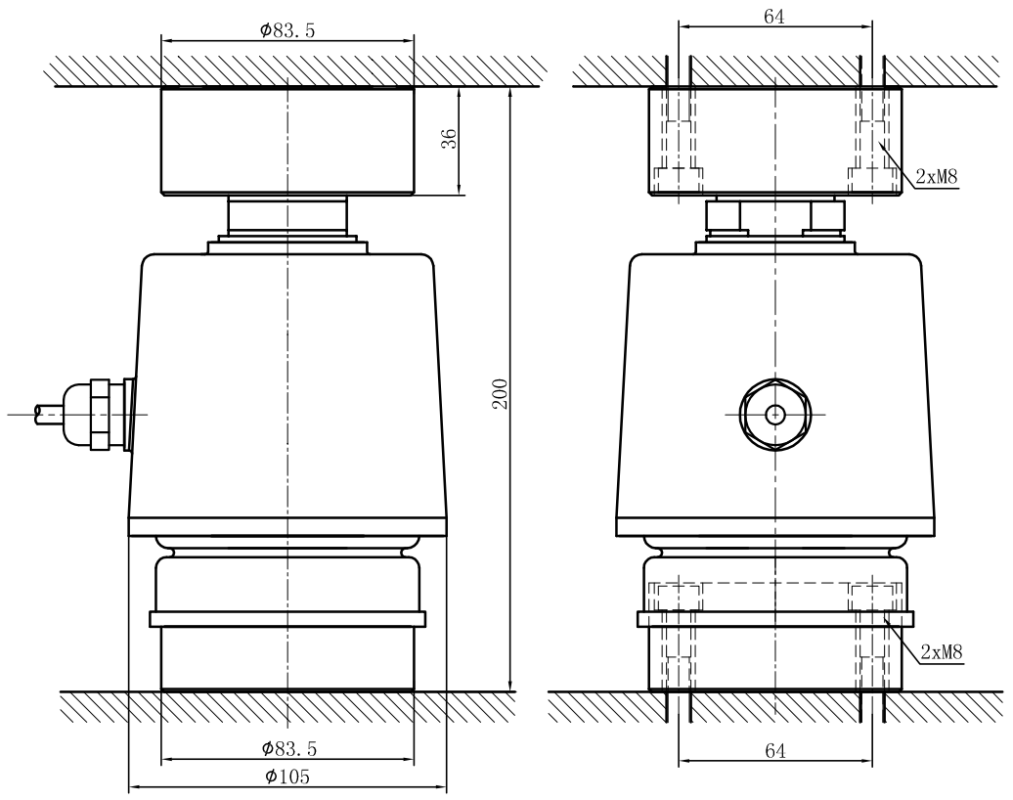

Dimension:
Technical Parameter:
SC9N은 무거운 계량 어플리케이션에 이상적인 컬럼형 폼팩터로 제작된 압축 로드셀입니다. 5톤에서 30톤까지 다양한 용량으로 제공되며, 대칭형 폼팩터로 설치 및 장착이 간편합니다.
The SC9N is a compression load cell built in the a column style form factor ideal for heavy weighing applications. Available in capacities from 5 Tonnes to 30 Tonnes, its symmetric form factor allow for easy installation and mounting.
SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.
The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.
The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.
Features:
Capacity 15t-100t
High precision
Easy and fast installation
Nickel plated alloy steel
Optional features:
Stainless steel construction
KWT1S55 is a small range and high-precision tensile and compressive force sensor. Its main body is designed with an aluminum alloy structure, and its top is equipped with a compressive loading head, which is convenient for customers to apply pressure to the heart.
Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.
Material: stainless steel, Aluminum alloy
Size: Overload Protection High precision
1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.
2.Simple to install, easy to use.
3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.
1. Super strong resistance for anti shock pressure;
2. Operating perfectly under 10m water;
3. Could work under harsh environment i.e. in dusty, sandy or icing environment;
4. Made of alloy steel, with reset function which enable the sensor to bear side impact;
5. Super stability on accuracy during long term operation;
6. User friendly, accuracy will not be affected in case that the product is installed with 5mm center deviation.
This product is made of high-quality alloy steel, offering excellent stability and resistance to signal interference. It can be installed in confined spaces and customized to specific requirements, making it widely used for pressure and force measurement in various industrial applications.
Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.
KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.
This product has a simple structural design and low cost. The design of its sealing membrane changes the cumbersome process of requiring a matching housing in the past, overcomes the defect of the housing of traditional sensors being easily damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with traditional column sensors, this type of sensor achieves relatively high accuracy in linearity, lateral resistance, torsion resistance, and azimuth error.
Traditional column sensors are widely used in various electronic weighing devices such as track scales, hopper scales, platform scales, etc.
It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.
Material: stainless steel
Size: Low height, Plane loading
