1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.

2.Simple to install, easy to use.

3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.

1. Alloy steel/Stainless steel;

2. High accuracy digital truck scales load cell with 1,000,000 counts

3.Suitable for electronic truck scale, track scale and other electronic weighing devices.

• Capacity: 0-100T
• Sensitivity: 1.5±0.05mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

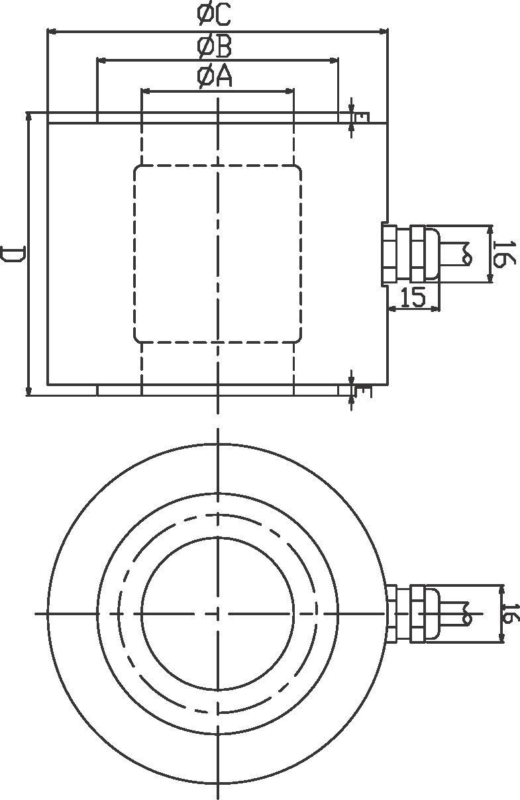

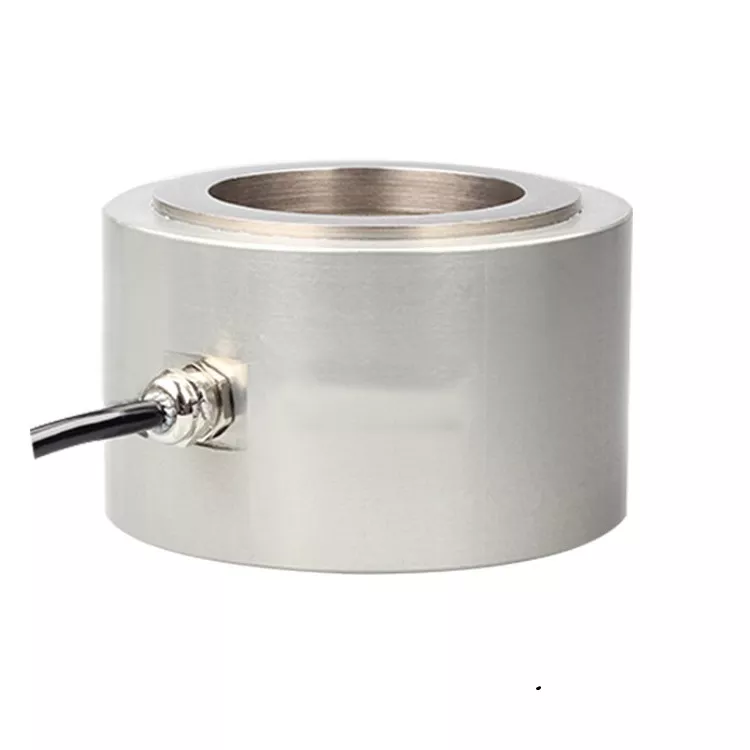

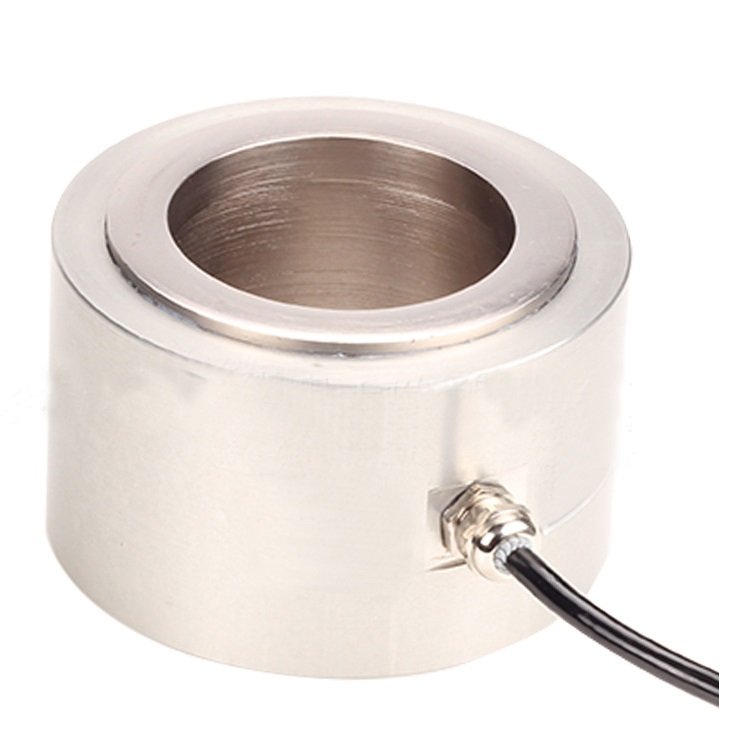

1.A ring-shaped column sensor is a device used to measure and monitor the axial preload of bolted connections.
2.It can be used to improve the reliability and safety of bolted connections, preventing bolts from loosening or becoming too tight.
3.It can reflect the contact interface stiffness and clamping force of bolted connections, and detect or quantify the tightening degree of bolts.
4. The inner hole size can be customized non-standard, and the elastomer is made of high-quality stainless steel material.

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.

This product has a simple structural design and low cost. The design of its sealing membrane changes the cumbersome process of requiring a matching housing in the past, overcomes the defect of the housing of traditional sensors being easily damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with traditional column sensors, this type of sensor achieves relatively high accuracy in linearity, lateral resistance, torsion resistance, and azimuth error.
Traditional column sensors are widely used in various electronic weighing devices such as track scales, hopper scales, platform scales, etc.

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

Material: stainless steel

Size: Low height, Plane loading

SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.

The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.

1. Super strong resistance for anti shock pressure;

2. Operating perfectly under 10m water;

3. Could work under harsh environment i.e. in dusty, sandy or icing environment;

4. Made of alloy steel, with reset function which enable the sensor to bear side impact;

5. Super stability on accuracy during long term operation;

6. User friendly, accuracy will not be affected in case that the product is installed with 5mm center deviation.
