The ZMZX1 is column type compression mounting kit. The load cell offers fast signalling times and optimal transparency in dosing and weighing processes. With an output signal of 2.0 mV/V, load levels of up to 100 t, accuracy classes up to C3 and high-quality alloy steel, it has a wide range of potential applications.

Nickel plated alloy steel

Column type, hermetically sealed structure, IP68 compression, fast response, strong anti-overload, upper ball head load bearing.

Simple install, easy to use, suitable for electronic truck scale, dynamic railroad scale and big capacity hopper scale, etc.

Widely used in auto press assembly, automated assembly, 3C product testing;
New energy product assembly, medical testing, robot, mold assembly and other industrial test, measurement and systems.

Material: stainless steel, Aluminum alloy

Size: Overload Protection High precision

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

• Capacity: 0-2000kg
• Sensitivity: 2.0±0.05mV/V
• Non-linearity 0.05% F.S.
• Repeatability 0.03% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.

2.Simple to install, easy to use.

3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.

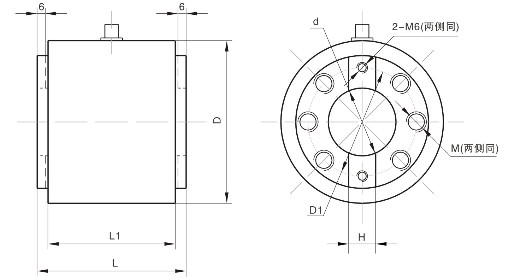

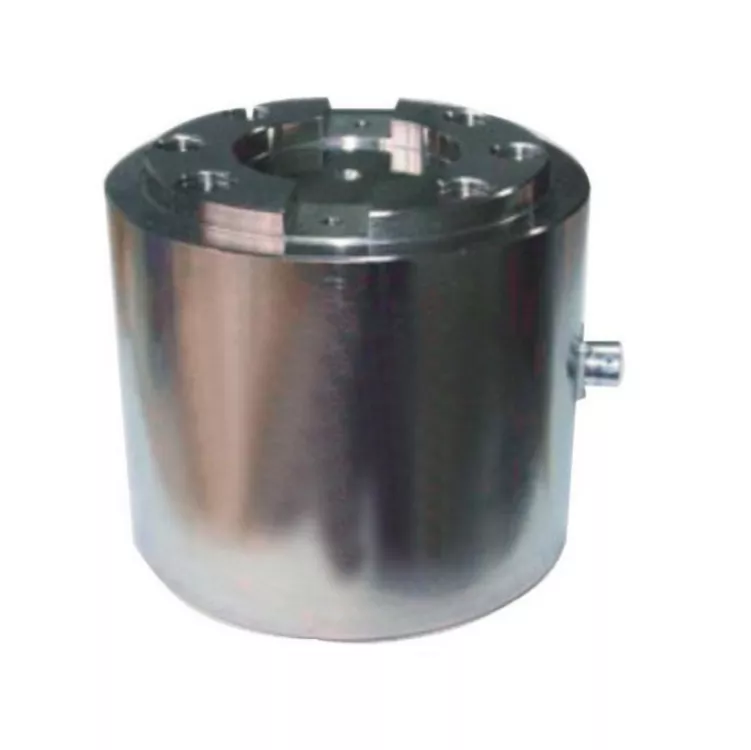

KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.

1. Super strong resistance for anti shock pressure;

2. Operating perfectly under 10m water;

3. Could work under harsh environment i.e. in dusty, sandy or icing environment;

4. Made of alloy steel, with reset function which enable the sensor to bear side impact;

5. Super stability on accuracy during long term operation;

6. User friendly, accuracy will not be affected in case that the product is installed with 5mm center deviation.

1.Made of stainless steel.

2.Laser welding sealing treatment, can be anti-oil, waterproof, anti-corrosive gases and media.

KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.

1.A ring-shaped column sensor is a device used to measure and monitor the axial preload of bolted connections.
2.It can be used to improve the reliability and safety of bolted connections, preventing bolts from loosening or becoming too tight.
3.It can reflect the contact interface stiffness and clamping force of bolted connections, and detect or quantify the tightening degree of bolts.
4. The inner hole size can be customized non-standard, and the elastomer is made of high-quality stainless steel material.
