LC4599 MTX Load Cells Column Canister Compression Load Cell

Product Description

LC4599

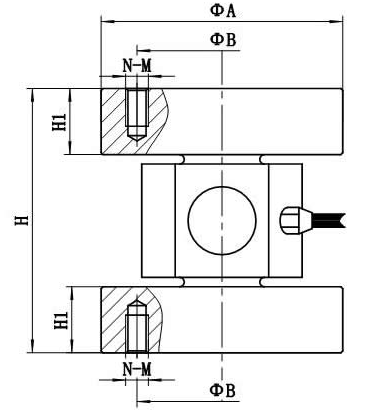

Dimensions: Unit: mm

LC4599

Capacity ΦA ΦB H N-M H1
(Ton) (mm)
0.3~5t 58 42 75 4-M8 17
10~30t 88 65 130 6-M12 30
40~60t 128 90 140 8-M12 35
80~150t 168 125 160 8-M16 45

Note:

lNote: the parameters noted in this page are only for model selection reference. Please refer to the confirmation at the time of ordering for details!

lThe size can be customized according to customers’ requirements;

Technical Parameter:

Rated Load: 300kg~150t
Sensitivity: 1.0~2.0mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.1% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.05% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Max. Excitation Voltage: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67
Input Resistance: 380±30Ω Element Material: Alloy Steel/Stainless Steel
Output Resistance: 350±2Ω Cable: Length=L:12m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC4599 MTX Load Cells Column Canister Compression Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
