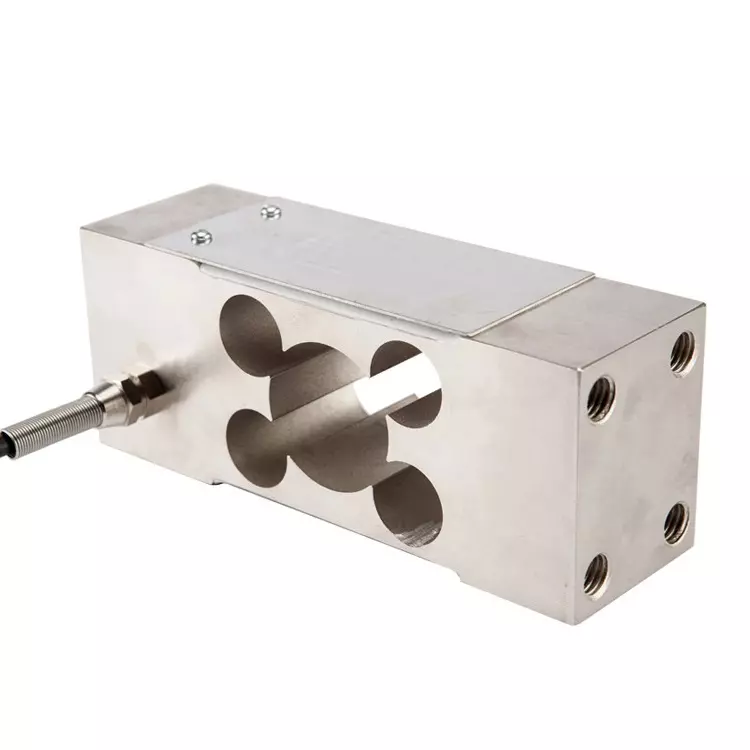

LC361 Low Cost Small Shear Beam Weight Sensor Single Point Load Cells for Conveyor Belt

Product Description

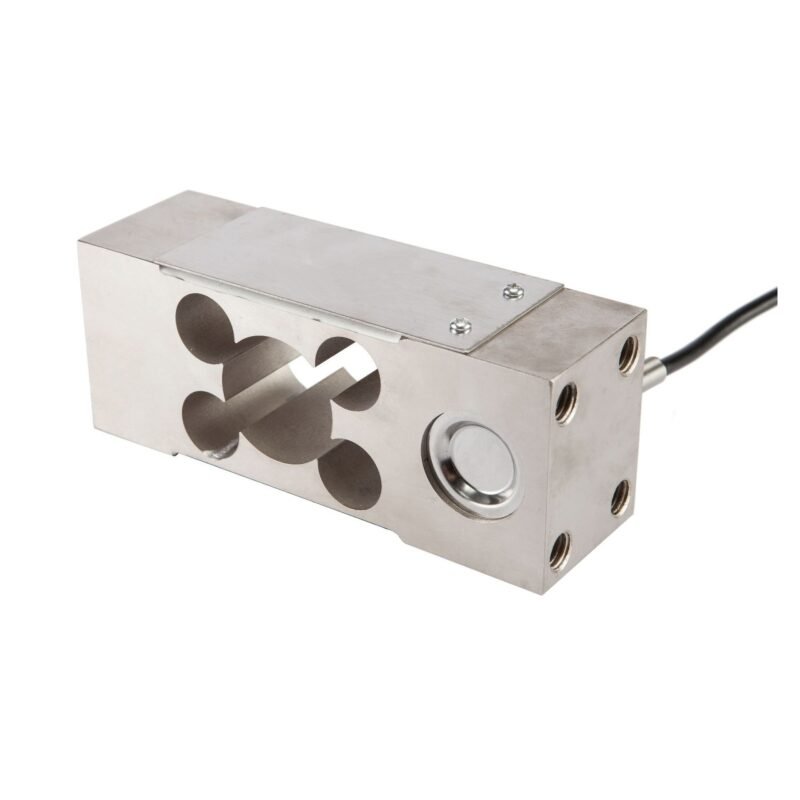

LC361-1

Dimensions Unit:mm:

LC361

Products Specification:

◎Capacity:1,2,3,5,7(kN);

◎Factory-adjusted control four angles to ensure consistent output in the specified load plane of each point;

◎High accuracy，easy to install，made of alloy steel or stainless steel;

◎Suitable for batching scale,plat form scale,electronic belt scale,batching scale,ect;

 Technical Parameter:

Rated Load: 1~7kN
Sensitivity: (2.0±0.1%) m V/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 380±10Ω Element Material: A,SS: Alloy /Stainless Steel
Output Resistance: 350±3Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC361 Low Cost Small Shear Beam Weight Sensor Single Point Load Cells  for Conveyor Belt
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
