Recommended Platform size: 400×400(mm)

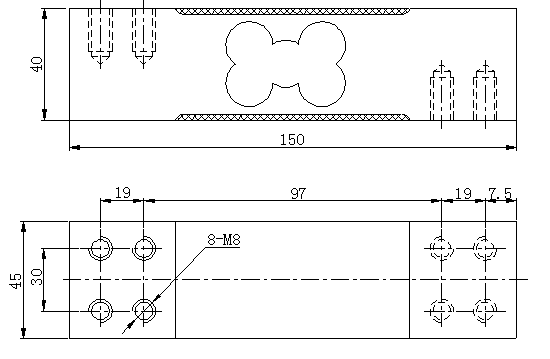

Dimensions:
Size: 150x40x45(mm) Thread hole:8-M8
It uses 4-core shielded cable (φ5×1500mm). The length of the cable can be adjusted according to clients’ request, but we suggest to use this standard length to ensure the output precision
Technical Parameter:
50,100,200,500,1000,2000,3000kg Or Customized Single Point Weight Sensor FA524A belongs to FA524 which is from Single Point Weight Sensor category of our brand FIBOS FA5-Series. FA524A can be used to measure weight 50kg,100kg,200kg,500kg,1000kg,2000kg and 3000kg or customized capacity, its Cable size is ⌀3x4000mm or can be customized length.
300,600,1000,3000,6000kg;10,30,60,100,300t Or Customized Single Point Weight Sensor FA518 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA518 can be used to measure weight 300kg,600kg,1000kg,3000kg,6000kg and 10t,30t,60t,100t,300t or customized capacity, its material we use Alloy steel or other customized material.
300kg IP68 Alloy Steel Single Point Weight Sensor FA910 is a model of our brand FIBOS FA9-Series, Single Point Weight Sensor FA910 can be used to measure weight 300kg capacity, its Rated output range is 2.0±0.2%mV/V, its Zero Balance range ≤1%F.S., its Creep(30min),Non-linearity and Hysteresis all ≤0.3%F.S. and its Repeatability ≤0.1%F.S..
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAQ-C load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAQ-C load cells can be used to measure loads range from 200kg to 2000kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
LAQ-C load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales, bench scale, platform scales and packing machinerys.
100,200,500kg Or Customized Single Point Weight Sensor FA559 is a model of our brand FIBOS FA5-Series, it belongs to Single Point Weight Sensor category. FA559 can be used to measure 100kg,200kg and 500kg or customized capacity, its Creep(30min),Non-linearity and Repeatability all ≤0.2%F.S. or can be customized, its Hysteresis ≤0.3%F.S. or also can be customized.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAK-H1 load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAK-H1 load cells can be used to measure loads range from 0.3kg to 3kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAK-H1 load cells are mainly used for electronic balances,counting scales,jewellery scales and retail scales.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-H-B load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-H-B load cells can be used to measure loads range from 20kg to 200kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-H-B load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
LCT Single Point Load Cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of LCT Single Point Load Cells / Platform Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and only one unit is sufficient to build up a scale.
Model LAB-C6A load cells are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAB-C6A load cells can be used to measure loads range from 3kg to 40kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output)
LAB-C6A load cells are mainly used for price computing scales,counting scales,weighing scales,retail scales and bench scale.
Description
5,10,20,50,80,100kg Or Customized Single Point Weight Sensor FA537 is a model of our brand FIBOS FA5-Series, Single Point Weight Sensor FA537 can be used to measure weight ranges from 5kg,10kg,20kg,50kg,80kg up to 100kg or could be customized capacity, its Creep(30min) and Repeatability both ≤0.18%F.S. or could be customized, and its Non-linearity and Hysteresis both ≤0.2%F.S. or customized.
