LC348 Shear Beam F1 Weight Load Cell Shear Beam Load Cell 5000kg 10000kg 10t

Product Description

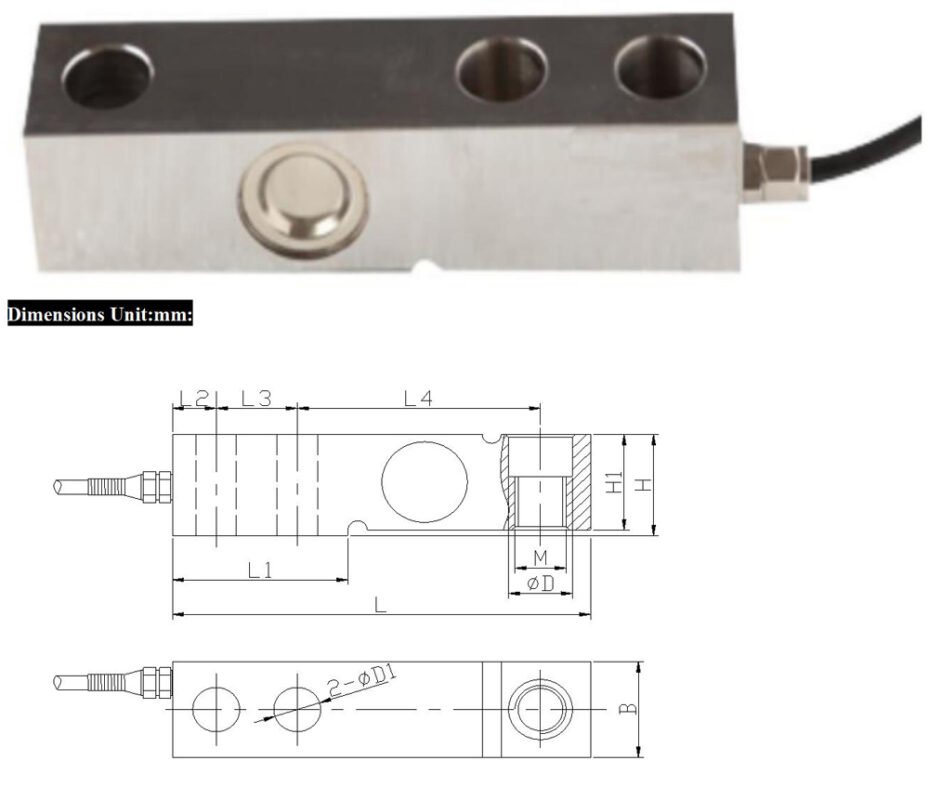

LC348_01



Products Specification:

◎LC348 load cells are available in the capacities 0.1t to 10t.

◎Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.

◎Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.

◎Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Technical Parameter:

Rated Load: 0.1/0.2/0.3/0.5/1/2/3/5/7.5/10t
Sensitivity: (2.0±0.1%) m V/V,

(3.0±0.1%) mV/V

 Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 385±5Ω Element Material: A,SS: Alloy /Stainless Steel
Output Resistance: 352±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60

LC348_03LC348_04



Product name LC348 Shear Beam F1 Weight Load Cell Shear Beam Load Cell 5000kg 10000kg 10t
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
