LC348 Load Cells Manufacturers Miniature Double Shear Beam Load Cell 50KG With Foot

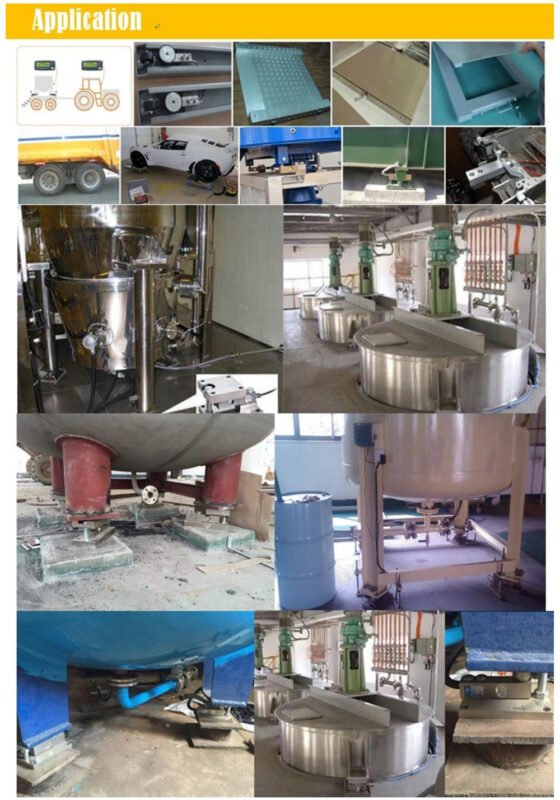

Application:
lLow profile platforms
lPallet truck weighing
lTank and silo weighing
Product Characteristics:

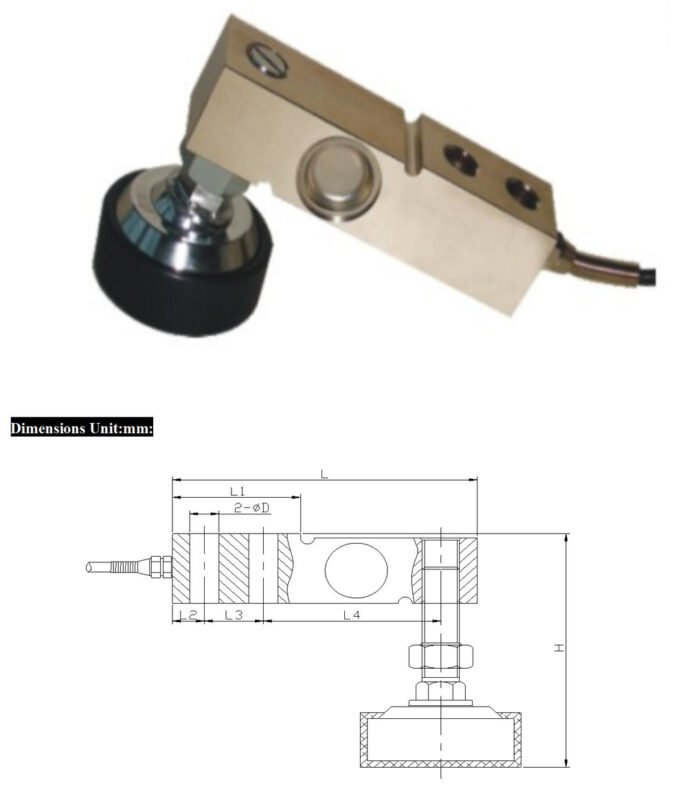

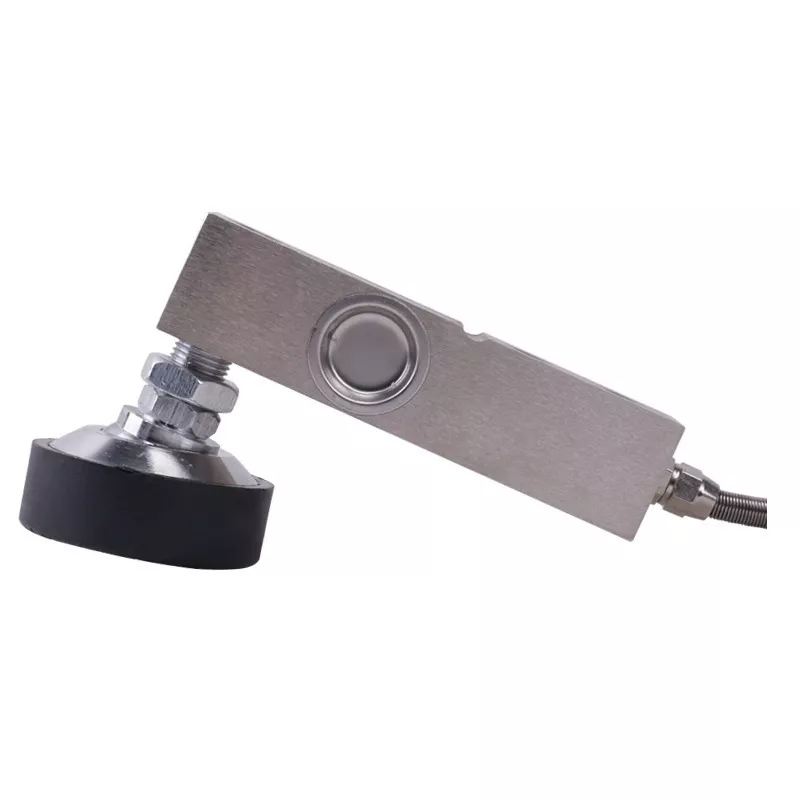

Model LC348 With Foot is a low profile shear beam load cell designed for high accuracy platform scales, pallet scales and process weighing applications.
It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Nickel plating and full environmental sealing assures long-term reliability. A alloy steel or stainless steel option is available for the lb or kg versions for use in harsh or corrosive environments. The two additional sense wires feed back the voltage reaching the load cell. Complete compensation of changes in lead resistance due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
Technical Parameter:
