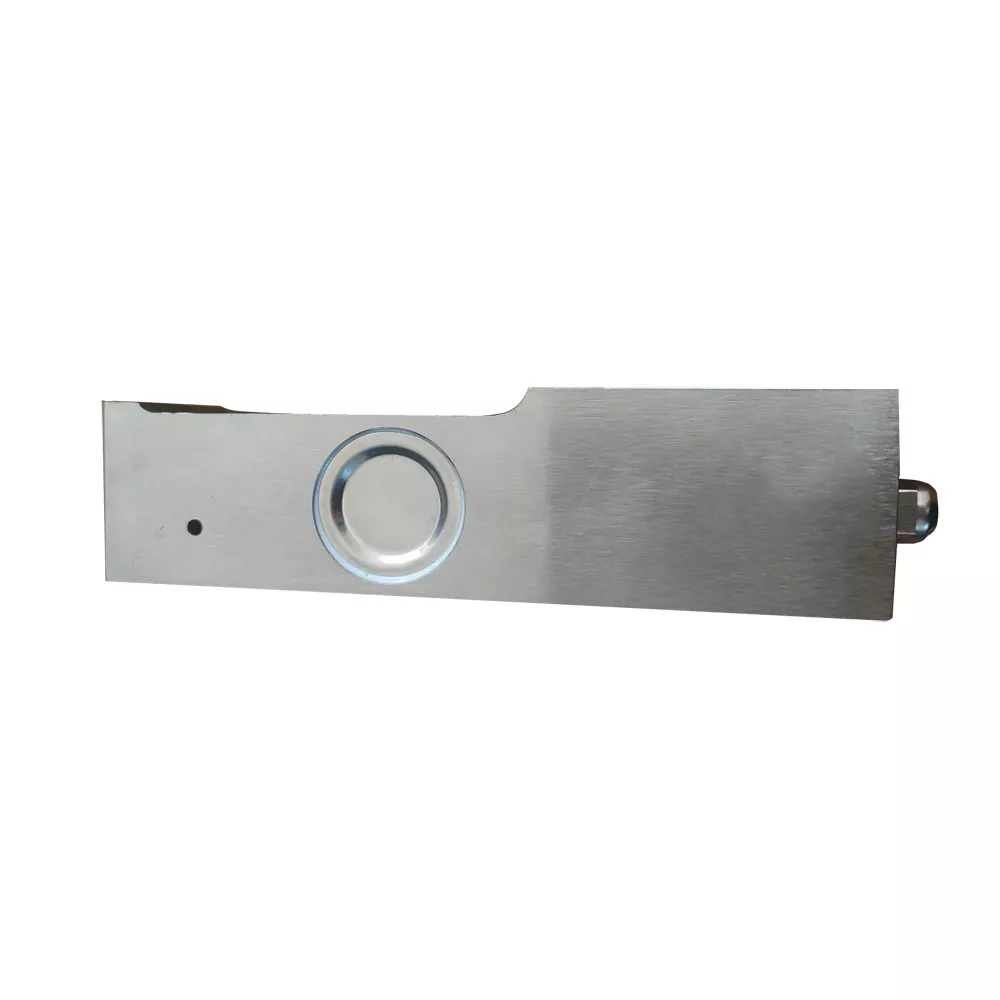

LC3005 100kg Floor Scale Shear Beam Load Cell for Scale Systems

Product Description

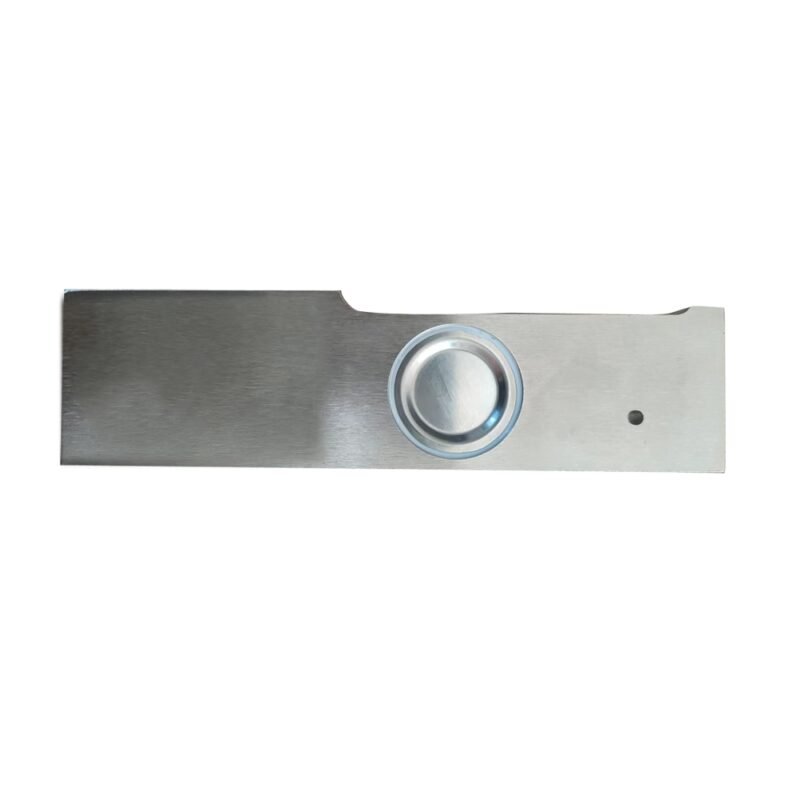

LC3005-5



Dimensions Unit:mm:

LC3005

Cap. Dimension(mm)
(Ton) D D1 D2 D3 H H1 H2 H3 H4 H5 H6 L L1 L2 L3 L4 L5 W W1
0.25~1 12.7 22 15.9 3.1 30 1.9 17 15.9 4.7 7.7 0.38 133.4 57.6 101.6 25.4 15.4 6.4 30.7 5.2
2 12.7 22 15.9 3.1 36.6 2.8 23 19.6 9.5 11.7 0.82 136.7 57.9 101.6 25.4 18.4 6.4 36.8 6
3 15 22 15.9 – 36.6 1.2 23 19.6 9.5 11.7 – 139.7 57.9 104.6 25.4 18.4 – 39 6
5 19 34.9 22.2 3.1 43 2 29.4 22.5 11 11.7 – 171.5 73.8 133.3 38.1 21.5 – 42.9 6



Products Specification:

◎LC3005 load cells are available in the capacities 0.25t to 5t.

◎Alloy steel or stainless steel ,sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.

◎Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.

◎Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Technical Parameter:`

Rated Load: 0.25/0.5/1/2/3/5t
Sensitivity: (2.0±0.2%) m V/V, Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 385±5Ω Element Material: A,SS: Alloy /Stainless Steel
Output Resistance: 352±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60

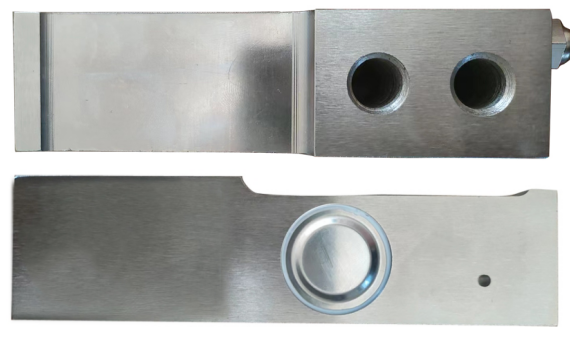

LC3005-



Product name LC3005 100kg Floor Scale Shear Beam Load Cell for Scale Systems
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
