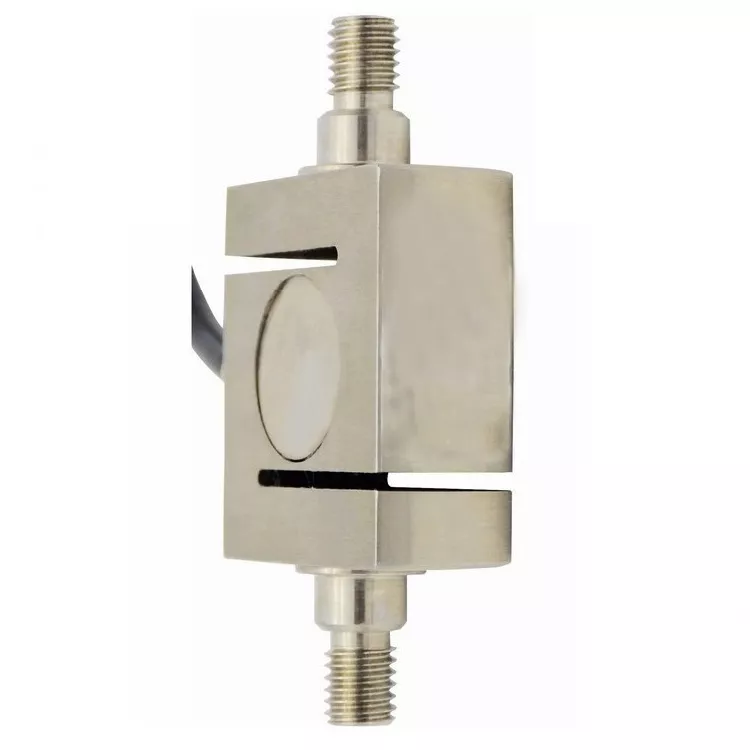

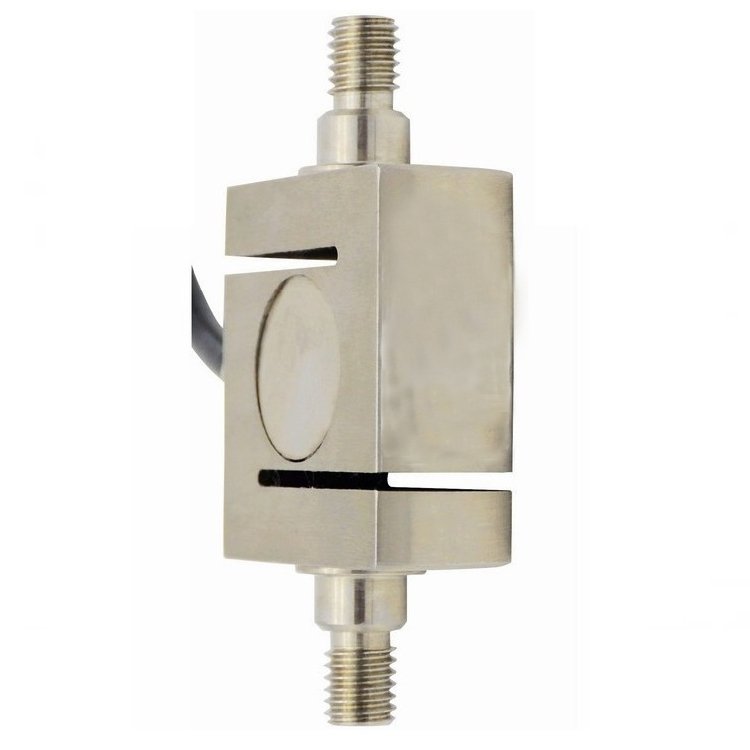

LC252 S Beam Load Cell S-type Load Cells From A World Leader
Product Description:
S beam load cell is known as s type load cell because of its feasured s beam structure,Rod end load cell LC252 is able to measure both tension force and compression force.The sensor can convert load or force acting on it into electronic signal which is proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply,the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the load cell.
Features:
◎Rod end load cell,s beam structure;
◎Strain gauge technology,analog output;
◎Tension and compression force measurement;
◎Widely used for testing machine,press force test,keyboard testing,auto equipment,production line,press machine.etc;
Applications:
Suspended tanks and hoppers, crane scales.
Dimension:
Technical Data:
