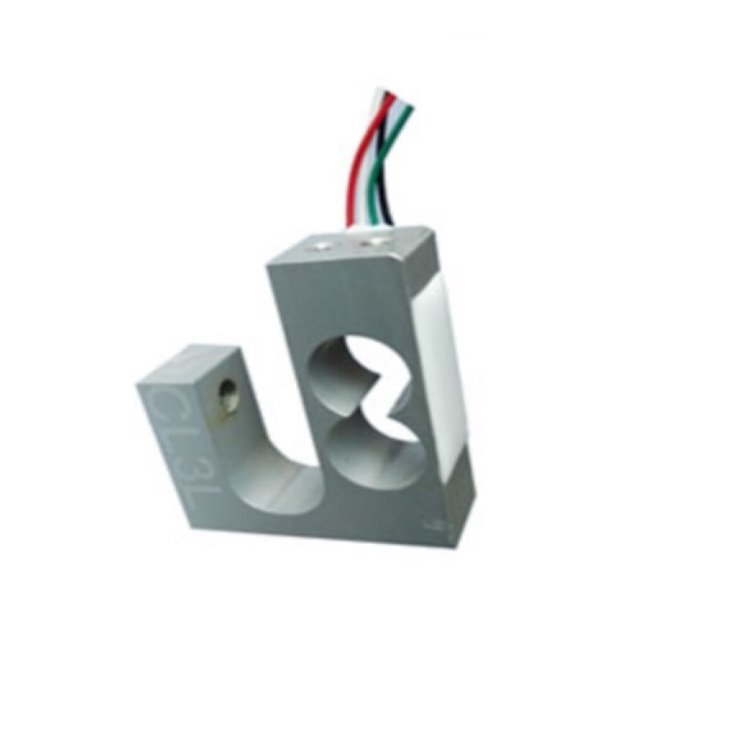

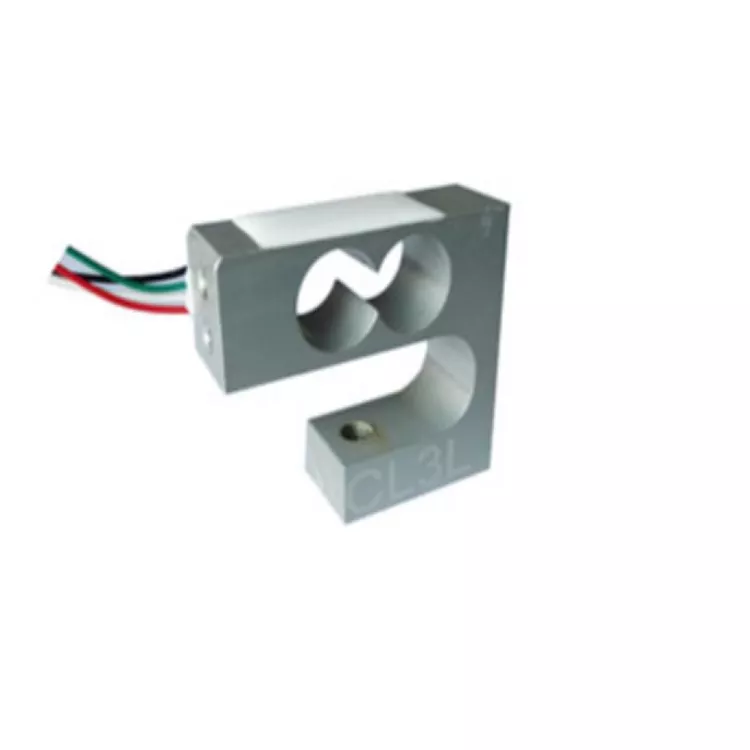

LC2420 Loadcell S Type Manufacturer Mini Load Cells
The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

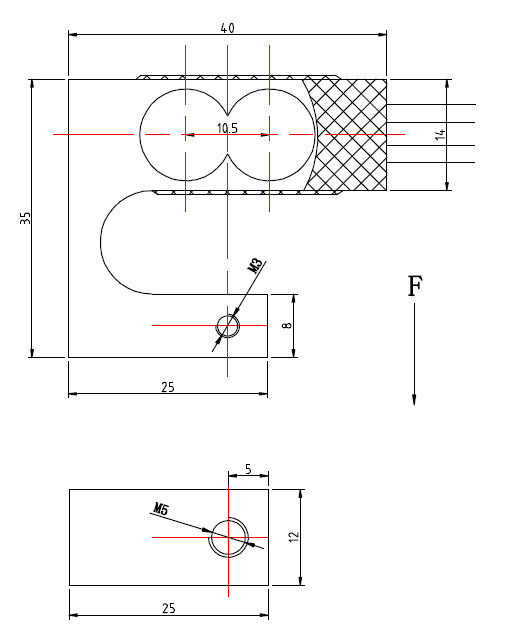

Dimension:
Technical Data:
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
- Capacity: 0-2T 2-10T
- Sensitivity: 2.0 mV/V
- Non-linearity 0.05% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
- Capacity: 50kg-7T
- Sensitivity: 2.0~3.0±10% mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..
- Capacity: 0-1.5t
- Sensitivity: 2.0 mV/V
- Non-linearity 0.031% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
SC301A는 축방향 하중 측정을 위해 설계된 소형 S형 인장 및 압축 로드셀입니다. 다른 S형 로드셀과 마찬가지로, SC301A는 상단과 하단에 장착 지점이 있어 공간이 제한된 설비에도 쉽게 설치할 수 있습니다.
The SC301A is a compact S-type tension and compression load cell built to measure axial loads. Like other S-type load cells, the SC301A has mounting point on the top and bottom for easy installation in installations with limited space.
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
- Capacity: 0-5T
- Sensitivity: 2.0 mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
