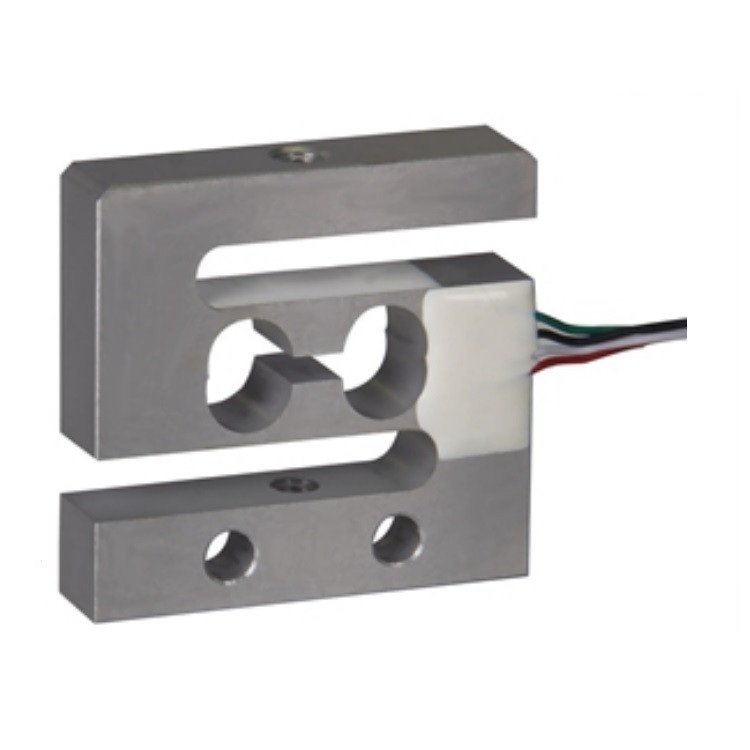

LC2411 Load Cell Tension Link Reverse Transduser S Type Aluminum Alloy Load Cell
Dimension:
Description:
SAINTBOND S-type Load Cells have been designed for measuring static and dynamic tensile and compressive forces.
Advantages of SensorWorld S-type Load Cells:
Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: SensorWorld S-type load cells are the reliable and safe choice for precise force measurement – providing compelling benefits for you.
Model LC2411 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. LAS-A load cells can be used to measure loads range from 2kg to 100kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2mV/V output signal.
LC2411 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.
Features:
◎S-type load cells
◎Capacity:2kg,…,100kg
◎Accuracy:0.03% R.O.
◎Aluminum construction with surface anodized
◎Environment protection class:IP65
Applications:
◎Crane scales
◎Hopper scales
◎Tensile testing
◎Test benches
◎Machine testing
Technical Data:
