SAINTBOND / LC2305 In-line Force Sensor Load Cell S-type Force Transducers

Add to Wishlist
Share it:

LC2305 In-line Force Sensor Load Cell S-type Force Transducers

Product Description

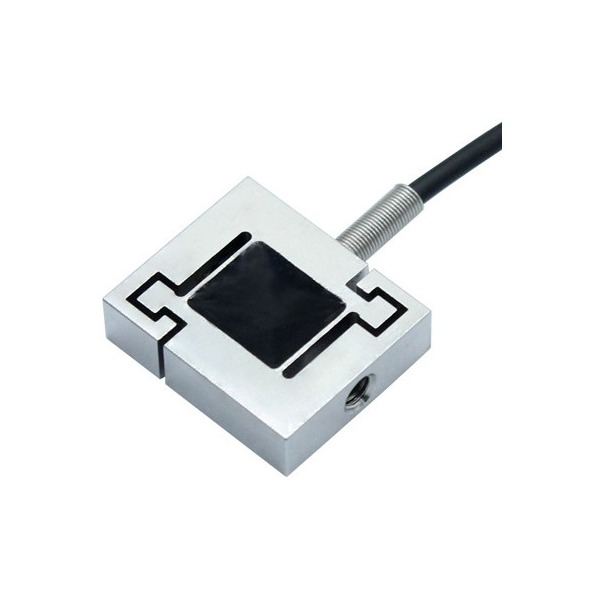

LC2305-3

Features:

◎Compact, easy to install

◎High measuring accuracy, is the preferred type of small range pull pressure sensor

◎Suitable for tension measurements, batching systems, industrial scales and package systems, etc

 Dimension:

LC2305

Specification:

Capacity: 1/2/3/5/10/20/30/50/100kg
Rated Output: 1.0mV/V ±0.1% Safe Temp. Range: -10ºC to + 70ºC
Zero Balance: ±1% of rated output Temp. Compensated: -10ºC to + 40ºC
Creep After 30 Minutes: ±0.1% of rated output Safe Overload: 150%
Nonlinearity: ±0.1% of rated output Input Impedance: 387 ohm ± 20 ohm
Hysteresis: ±0.1% of rated output Output Impedance: 350 ohm ± 5 ohm
Repeatability: ±0.1% of rated output Rated Excitation: 10V DC/AC
Temp. Effect On Output: ≤0.02% of applied output/ºC Maximum Excitation: 15V DC/AC
Temp. Effect On Zero: ≤0.02% of applied output/ºC

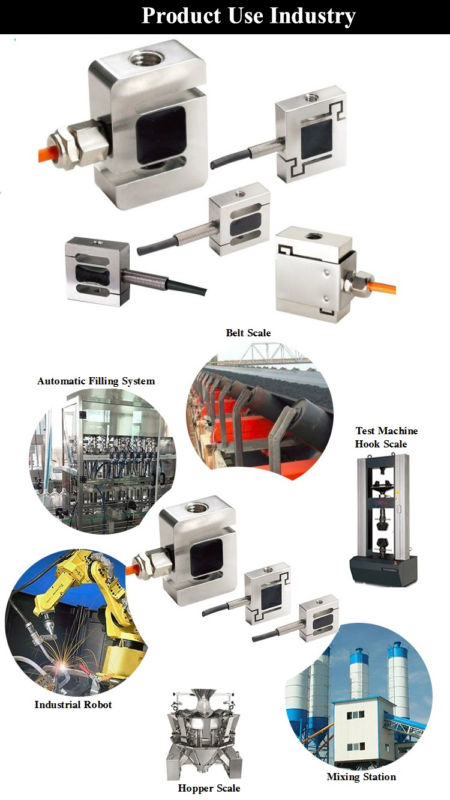

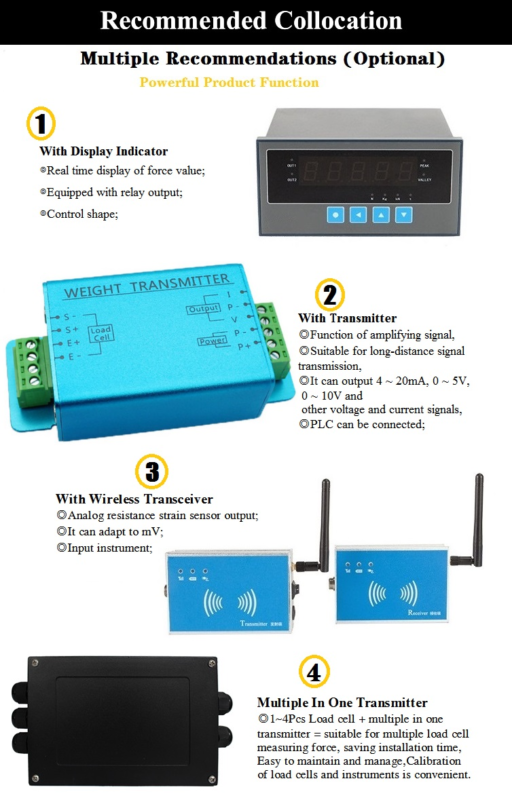

 LC2305-LC2305-1LC2305-2

Product name LC2305 In-line Force Sensor Load Cell S-type Force Transducers
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
