• Capacity: 0-200kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.

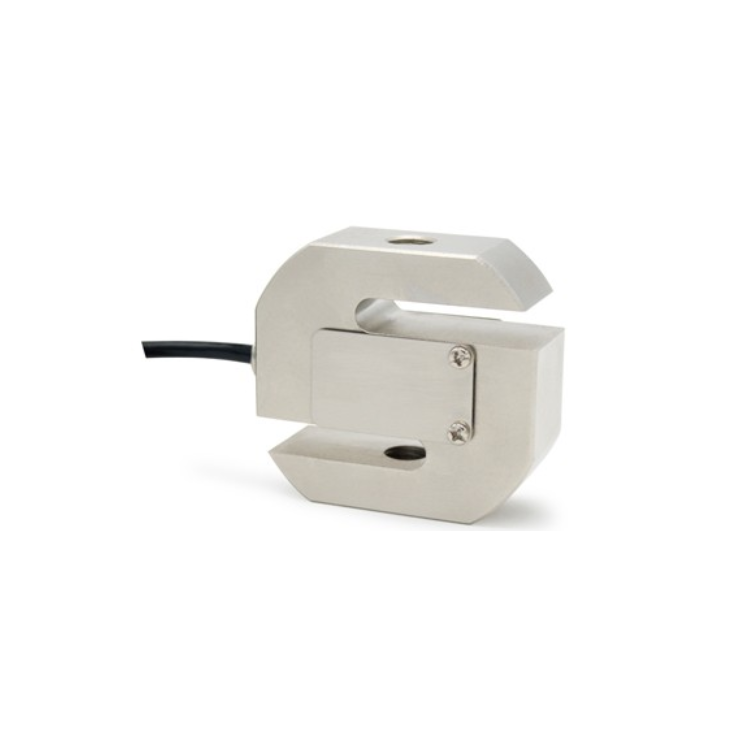

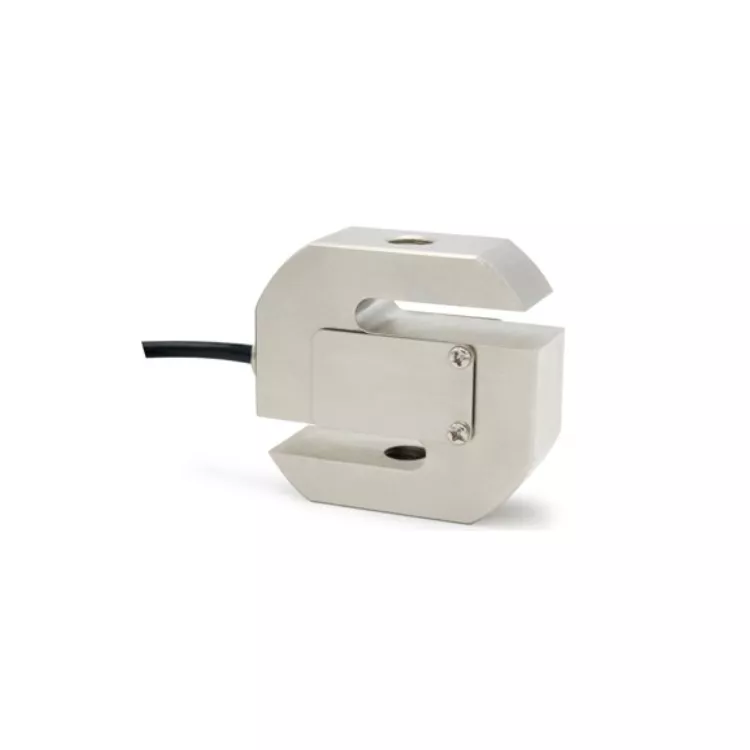

The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.

• Capacity: 50kg-7T
• Sensitivity: 2.0~3.0±10% mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 0-50kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 0-200kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.05% F.S.
• Repeatability 0.03% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..

25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..

• Capacity: 0-5T
• Sensitivity: 2.0 mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.

• Capacity: 0-7T
• Sensitivity: 2.0 mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.
