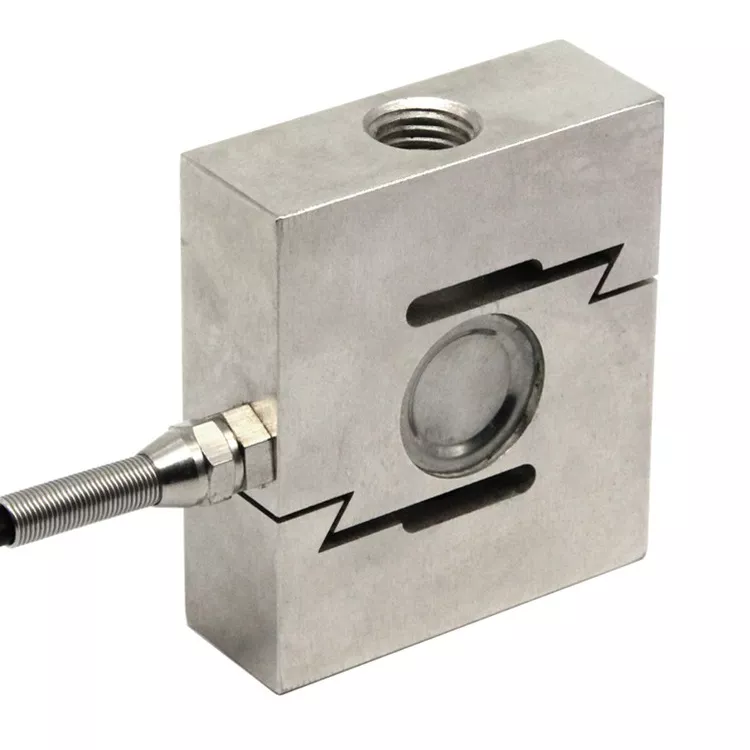

100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.

• Capacity: 50kg-7T
• Sensitivity: 2.0~3.0±10% mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

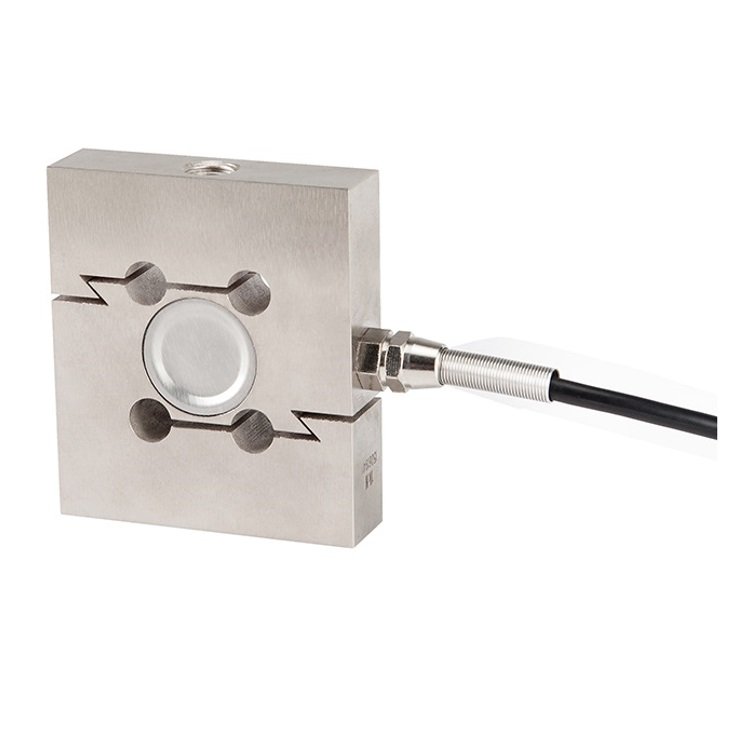

10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.

• Capacity: 0-1.5t
• Sensitivity: 2.0 mV/V
• Non-linearity 0.031% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 0-50kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized

Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.

Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.

• Capacity: 0-200kg
• Sensitivity: 1.0~2.0 mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Stainless steel with nickel plated
• Bi-directional tension and compression
• Can be customized

• Capacity: 0-7T
• Sensitivity: 2.0 mV/V
• Non-linearrity 0.03% F.S.
• Repeatability 0.03% F.S.
• Material Alloy steel with nickel plated
• Bi-directional tension and compression
• Can be customized
